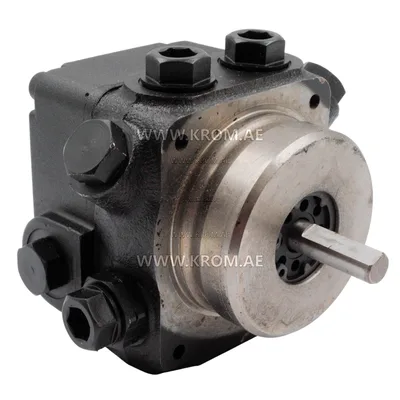

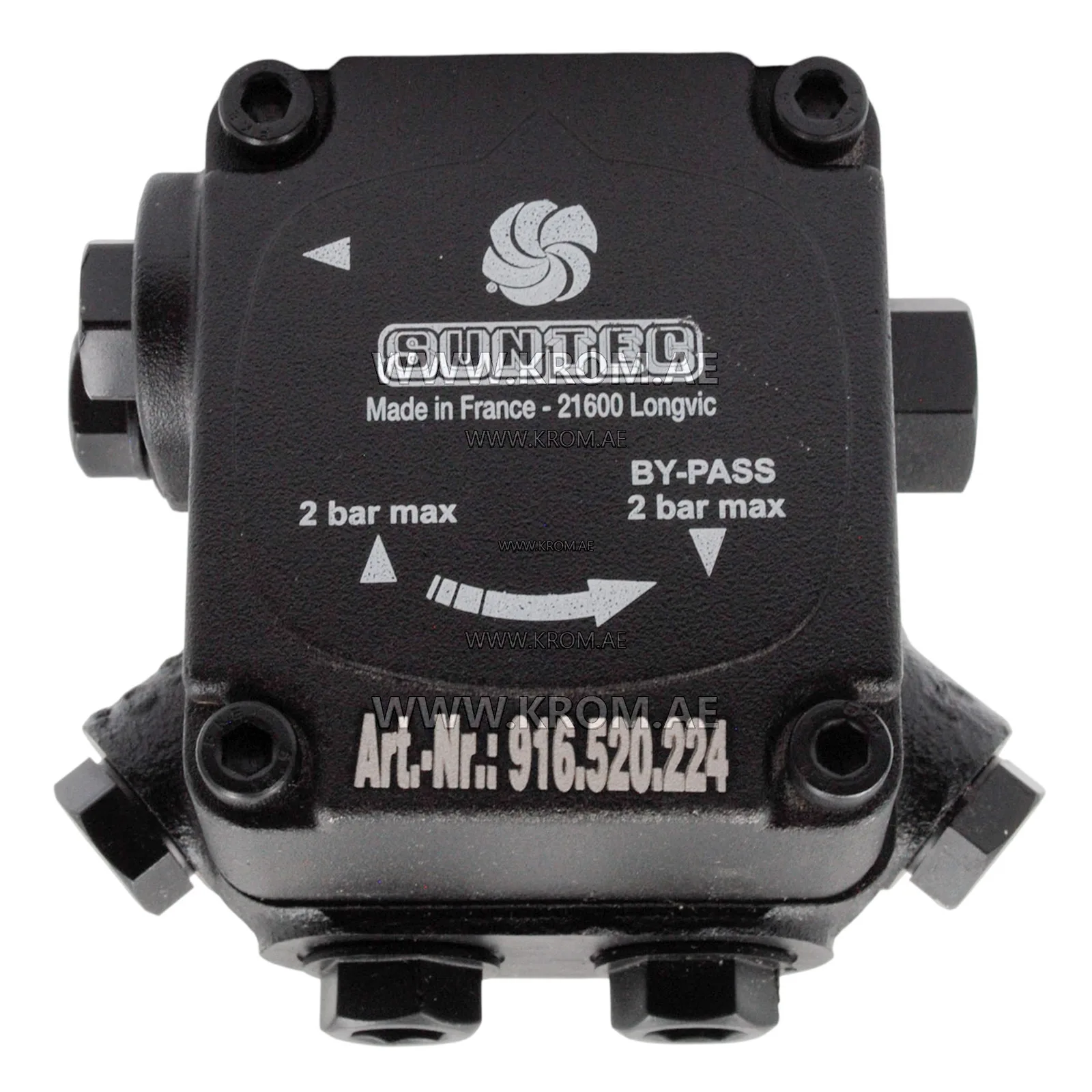

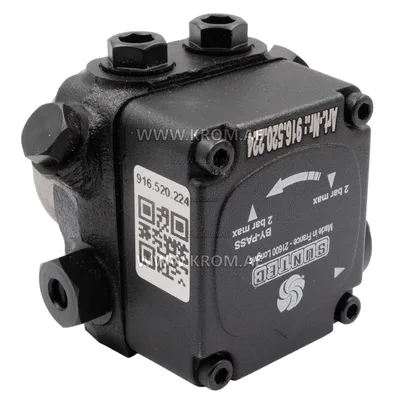

Suntec ANV77A7283 oil pump

The Suntec ANV77A7283 oil pump belongs to the basic AN series and features an integral pressure regulating valve with cut-off function for use with diesel and B10 biodiesel. The Suntec ANV77A7283 oil pump is suitable for both single-pipe and two-pipe burner systems, providing reliable fuel delivery with an adjustable pressure range of approximately 10–20 bar. The pump is designed with a hub mounting and standard cylindrical connections for fuel supply and return lines. Suntec ANV77A7283 oil pump technical data: Pump series: AN — basic model with pressure regulating and cut-off valve Fuel type: diesel, biodiesel B10 Flow rate at ~11 bar and 5 cSt: approx. 108 l/h Pressure range: approx. 10–20 bar Mounting: hub ∅ 54 mm Inlet/return connections: ¼″ (NPTF / cylindrical) Nozzle outlet: ⅛″ Pressure and vacuum gauge ports: ⅛″ Valve function: pressure regulation and cut-off Strainer open area: ~20 cm²; mesh size ~150 µm Shaft diameter: 8 mm Rotation direction: clockwise / nozzle right Operating viscosity: 2–75 mm²/s Fuel temperature range: 0–60 °C Nominal speed: 2850 rpm; max up to 3600 rpm Weight: approx. 1.2 kg
