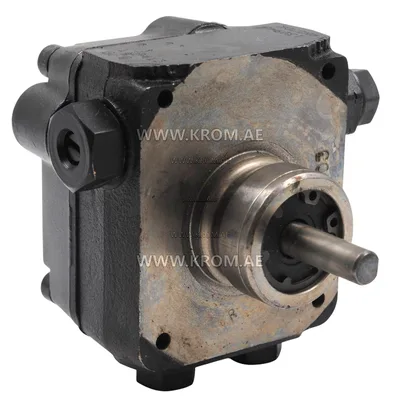

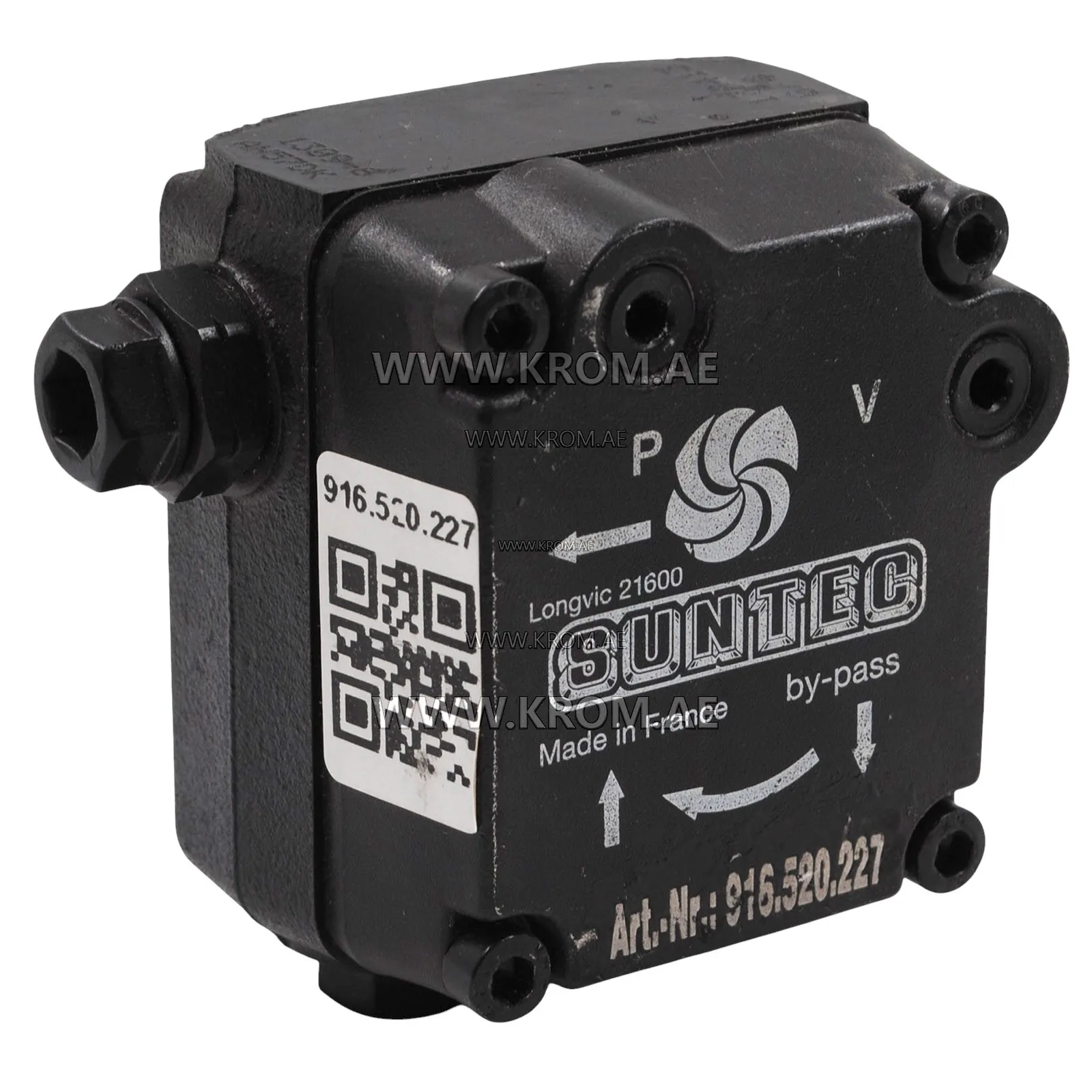

Suntec AN57DK1309 oil pump

The Suntec AN 57 DK 1309 oil pump is designed for burner systems operating with diesel and light fuel oils. The Suntec AN57DK 1309 oil pump features an integrated pressure regulating valve combined with an electric solenoid shut-off, ensuring precise fuel control and safe burner operation. The pump is suitable for both single-pipe and two-pipe installations. Suntec AN57DK1309 oil pump technical data: Pump type: internal gear Flow rate: 57 l/h Nozzle pressure range: 7–15 bar Valve function: pressure regulation with solenoid shut-off Rotation direction: clockwise Mounting: hub mounting according to EN 225 Inlet and return connections: G 1/4" Nozzle outlet: G 1/8" Pressure gauge port: G 1/8" Vacuum gauge port: G 1/8" Shaft diameter: 8 mm Fuel temperature range: 0–60 °C Operating viscosity: 2–75 mm²/s Maximum speed: 3600 rpm
