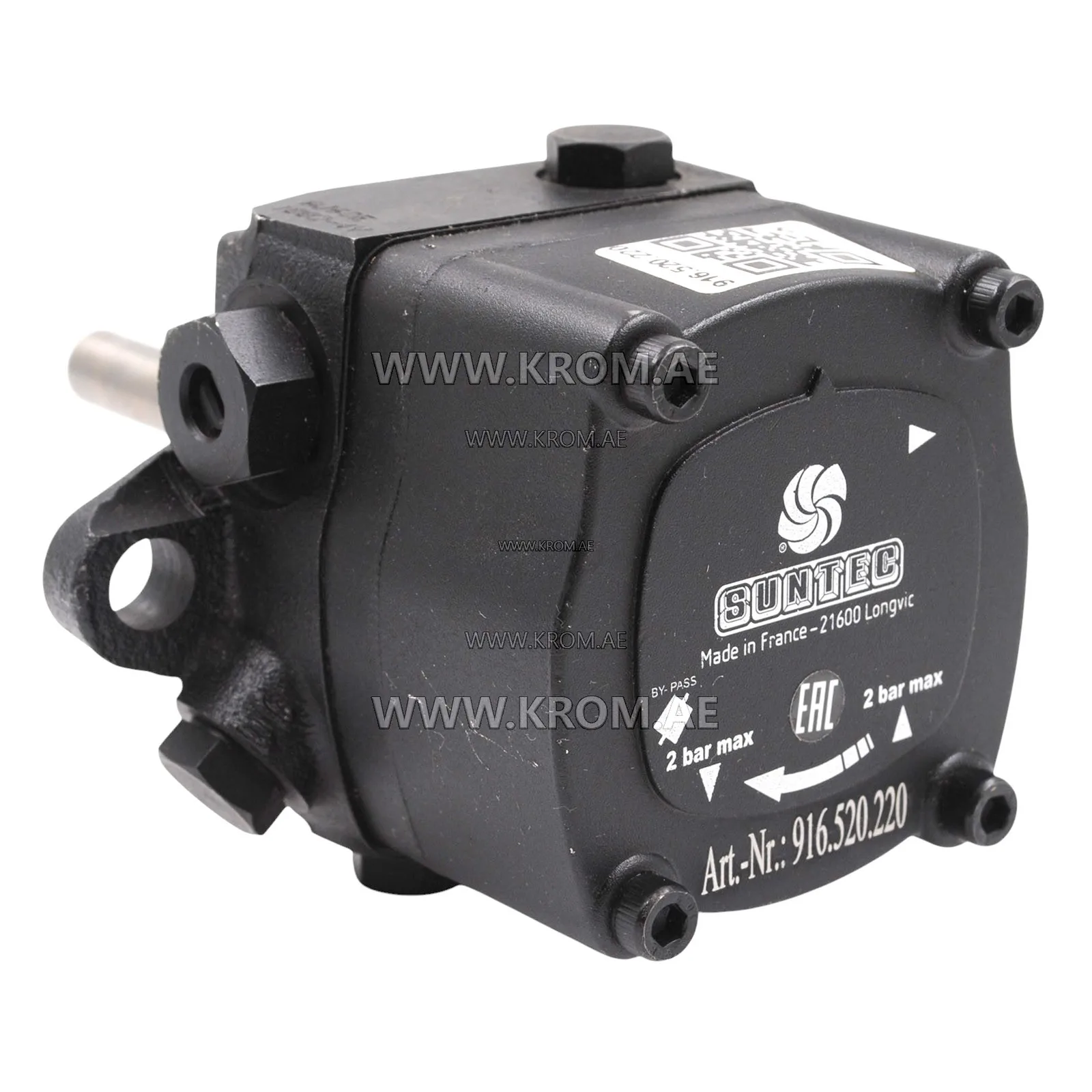

Suntec AJ6CE1002 oil pump

The Suntec AJ6CE1002 oil pump is an internal gear oil pump from the AJ series designed for diesel and biodiesel burner applications. The Suntec AJ6CE1002 oil pump operates with a nozzle pressure range from 10 to 30 bar, making it suitable for higher pressure requirements in heating systems. It features flange mounting and standard connections for inlet, return and nozzle lines. Suntec AJ6CE1002 oil pump technical data: Pump type: internal gear Nozzle pressure range: 10–30 bar Flow rate: 275 l/h at 10 bar Connections: inlet/return G 1/4", nozzle outlet G 1/8" Flange mounting: ∅ 54 mm Fuel temperature range: 0–60 °C Operating viscosity: 2–75 mm²/s Maximum speed: 3600 rpm Weight: 1.72 kg
