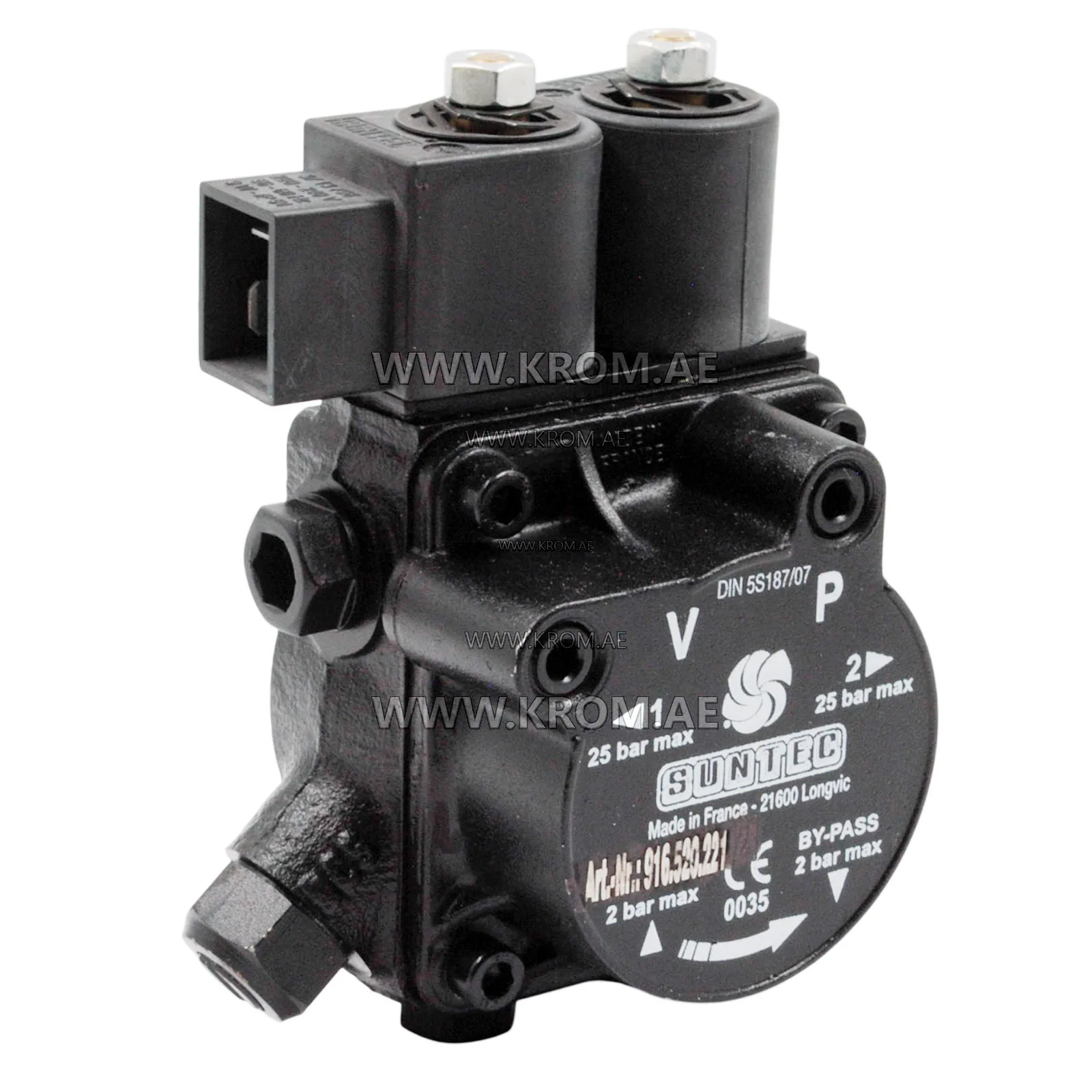

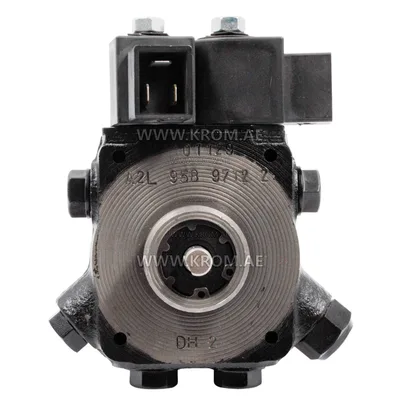

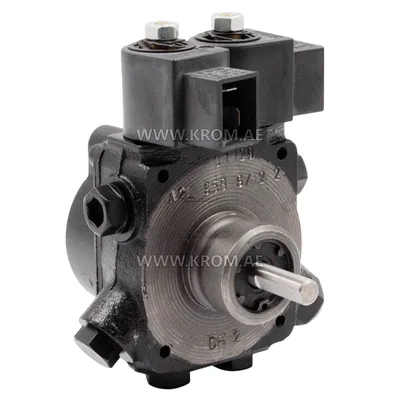

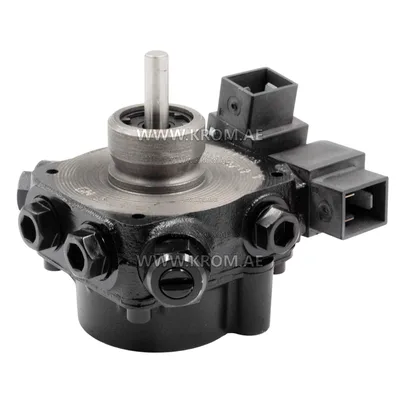

Suntec A2L95B9712 oil pump

The Suntec A2L95B9712 oil pump is a two‑nozzle oil pump from the A2L series with two independent blocking solenoid valves with cut‑off function, designed for diesel and light fuel burner applications. The Suntec A2L95B9712 oil pump supports both single‑pipe and two‑pipe installations and delivers stable fuel flow under varying operating conditions, making it suitable for high‑capacity heating systems. Suntec A2L95B9712 oil pump technical data: Pump type: internal gear with two independent solenoid valves Series: A2L — dual nozzle outlets with cut‑off Nozzle pressure range: 8–15 bar Maximum pressure rating: up to 25 bar Connections: inlet/return G 1/4", nozzle outlets G 1/8" Mounting: hub mounting per EN 225 Fuel types: diesel and light fuels Fuel temperature range: 0–60 °C Viscosity range: 2–12 mm²/s Maximum speed: 3600 rpm Shaft diameter: 8 mm
