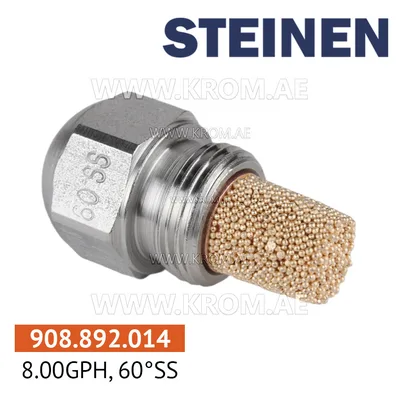

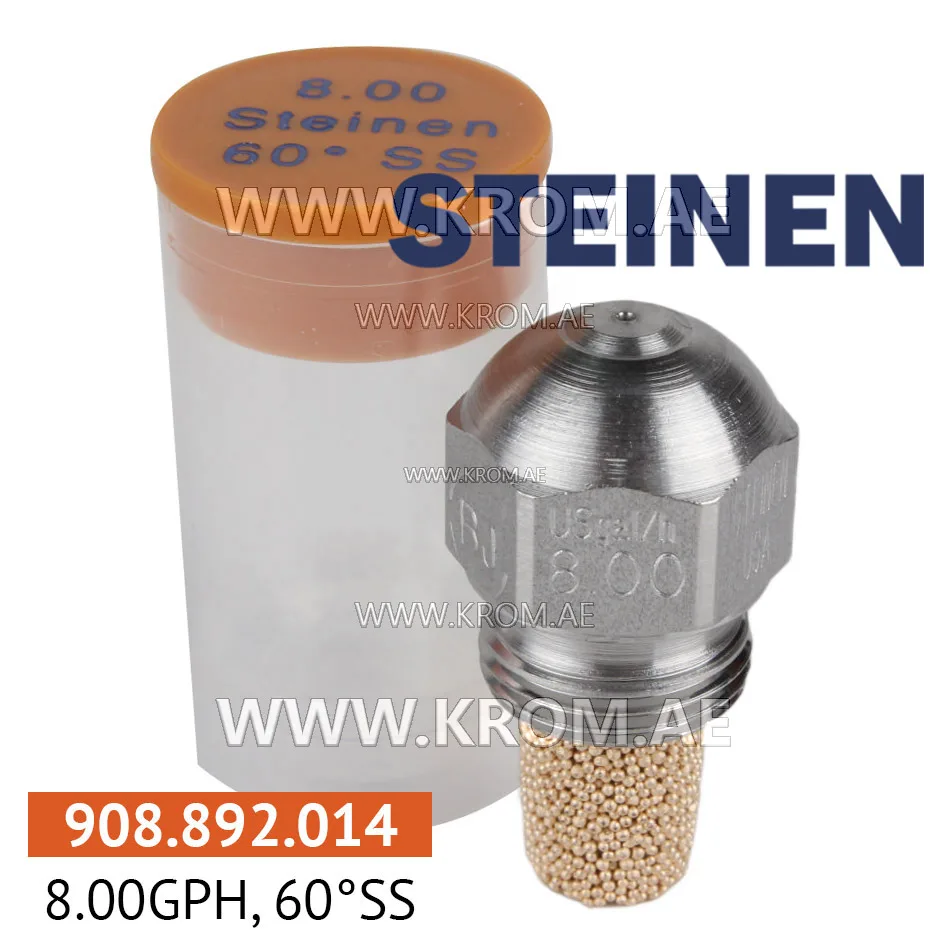

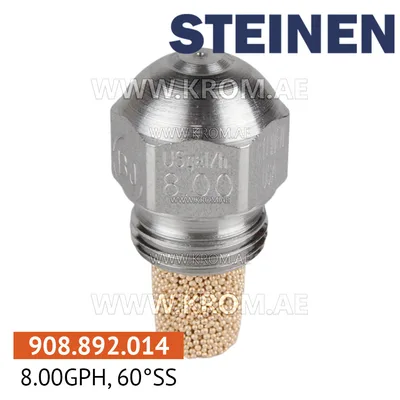

Steinen 8.00GPH, 60SS nozzle

Monarch 8.00GPH,60SS oil nozzles play an important role in the burner, ensuring efficient and controlled combustion of fuel. These small devices are responsible for spraying the fuel into a fine, tiny droplet, facilitating its effective ignition and combustion inside the burner. Monarch 8.00GPH,60SS oil burner nozzles have different sizes and spray angles, allowing precise fuel distribution according to the specific requirements of the burner and heating system. The correct selection and installation of Monarch 8.00GPH,60SS oil nozzles is necessary to achieve optimal combustion efficiency, reduce emissions and maximize overall burner performance. Proper maintenance and periodic replacement of fuel injectors are also necessary to ensure optimal burner operation. Application Monarch 8.00GPH,60SS oil burner nozzles are used in household and industrial high-pressure burners running on all types of fuel. Technical data Capacity: 8 gal/hr Spray angle: 60 degrees Nozzle Type: SS A general purpose nozzle in the larger sizes that delivers a semi solid cone spray distribution pattern. As the flow rate of the nozzle increases, the spray pattern becomes more hollow. This nozzle, in addition to the type PH, is recommended for applications where large capacities are required.
