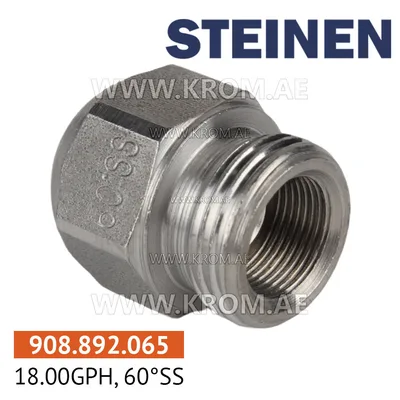

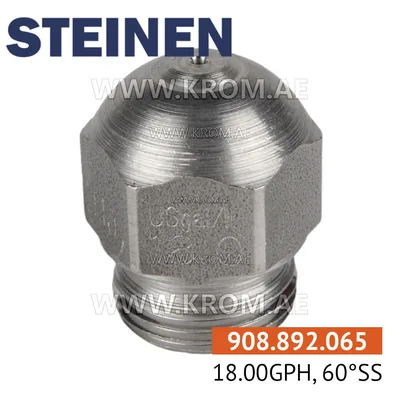

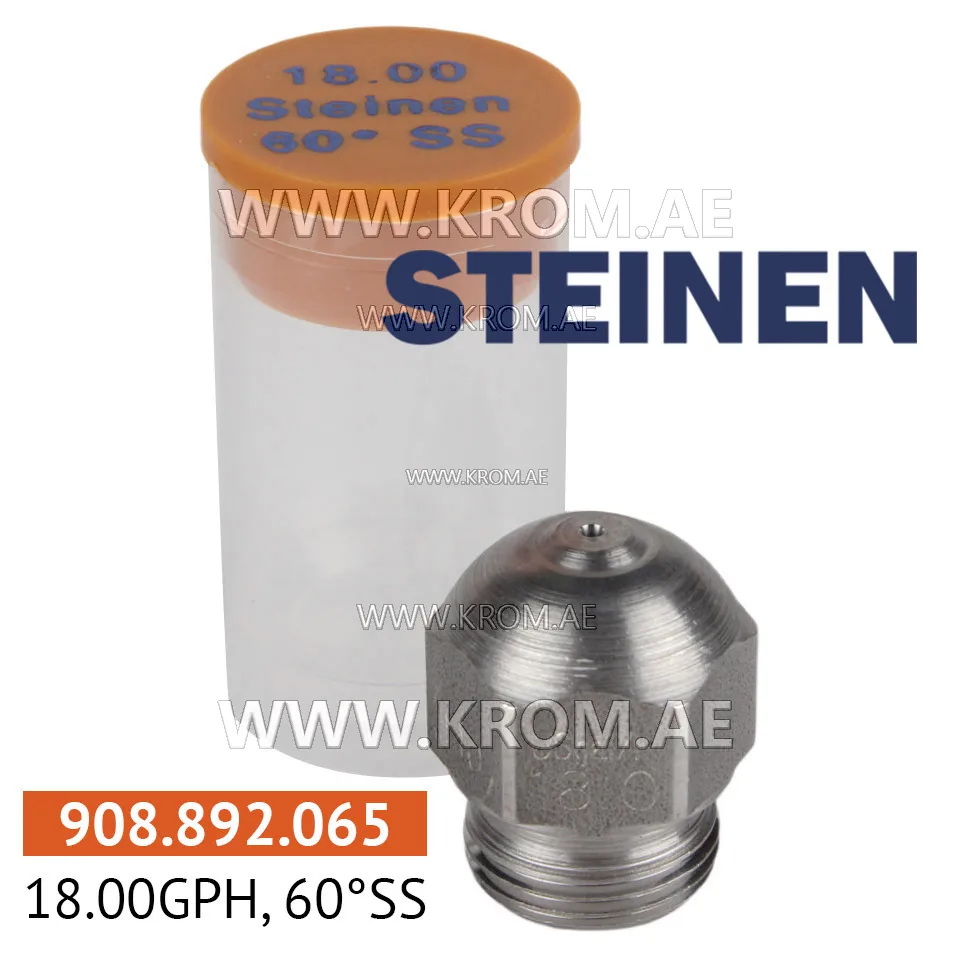

Steinen 18.00GPH, 60SS nozzle

Steinen 18.00GPH,60SS nozzles in burners are devices that are used to spray fuel in the combustion chamber. They play a key role in the fuel combustion process, ensuring uniform and efficient mixing of fuel with air. Features of Steinen injectors 18.00GPH,60SS: Fuel sprayed in the combustion chamber. Ensure uniform mixing of fuel with air. Consist of a metal housing with a hole or channel. High-pressure fuel passes through them. The holes or nozzle design disperse the fuel into small droplets. The size, shape and location of the holes can be adjusted to the operating conditions of the burner. The quality of the injectors affects combustion efficiency, fuel consumption and emissions of harmful substances. Regular maintenance and checking of the injectors are important to keep the burner running. Steinen 18.00GPH,60SS oil burner nozzle technical data: Capacity: 18 gal/hr Spray angle: 60 degrees Nozzle Type: SS A general purpose nozzle in the larger sizes that delivers a semi solid cone spray distribution pattern. As the flow rate of the nozzle increases, the spray pattern becomes more hollow. This nozzle, in addition to the type PH, is recommended for applications where large capacities are required.
