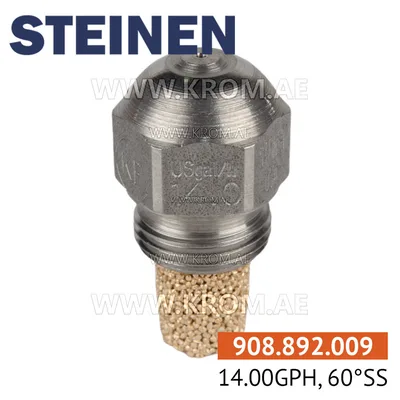

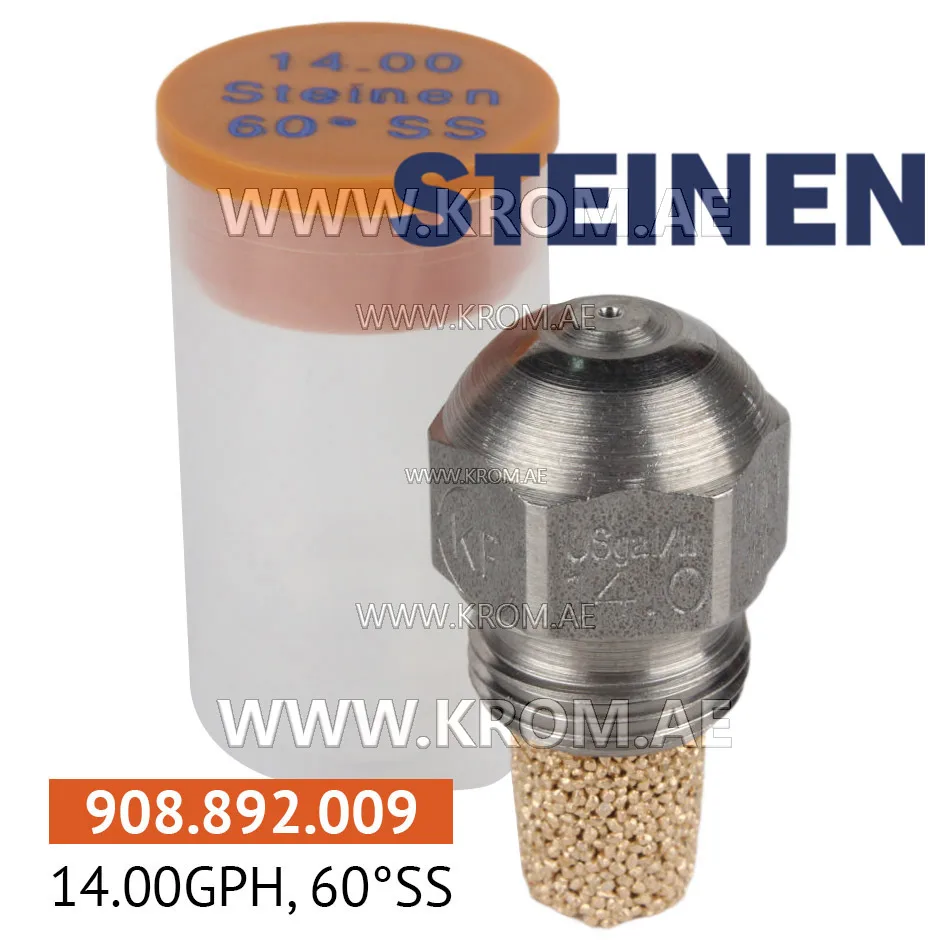

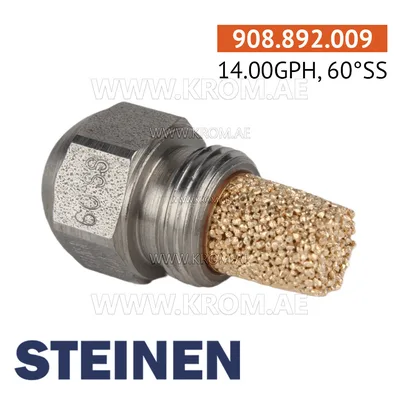

Steinen 14.00GPH, 60SS nozzle

Steinen 14.00GPH,60SS oil nozzles in burners are small holes or tubes through which fuel or gas passes. Steinen 14.00GPH,60SS oil burner nozzles play an important role in the combustion process, breaking the fuel into small droplets or particles for more efficient mixing with air. Steinen 14.00GPH,60SS oil burner nozzles are adjustable to control the amount of fuel supplied to the burner and ensure optimal combustion. In addition, Steinen 0986SS0-14 oil nozzles can be equipped with filters to prevent clogging and ensure smooth operation of the system. These simple components are an important part of the operation of many thermal devices such as boilers, furnaces and engines. Steinen 14.00GPH,60SS oil burner nozzle technical data: Capacity: 14 gal/hr Spray angle: 60 degrees Nozzle Type: SS A general purpose nozzle in the larger sizes that delivers a semi solid cone spray distribution pattern. As the flow rate of the nozzle increases, the spray pattern becomes more hollow. This nozzle, in addition to the type PH, is recommended for applications where large capacities are required.
