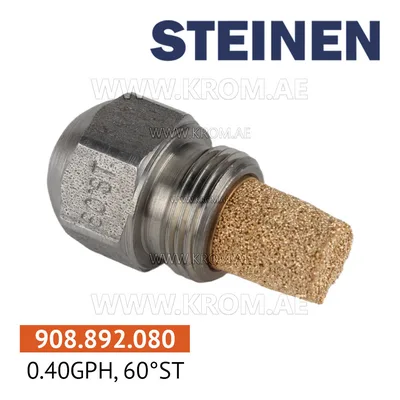

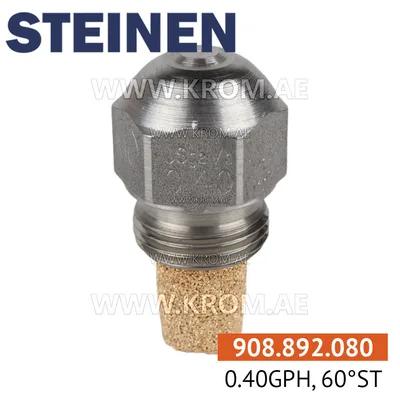

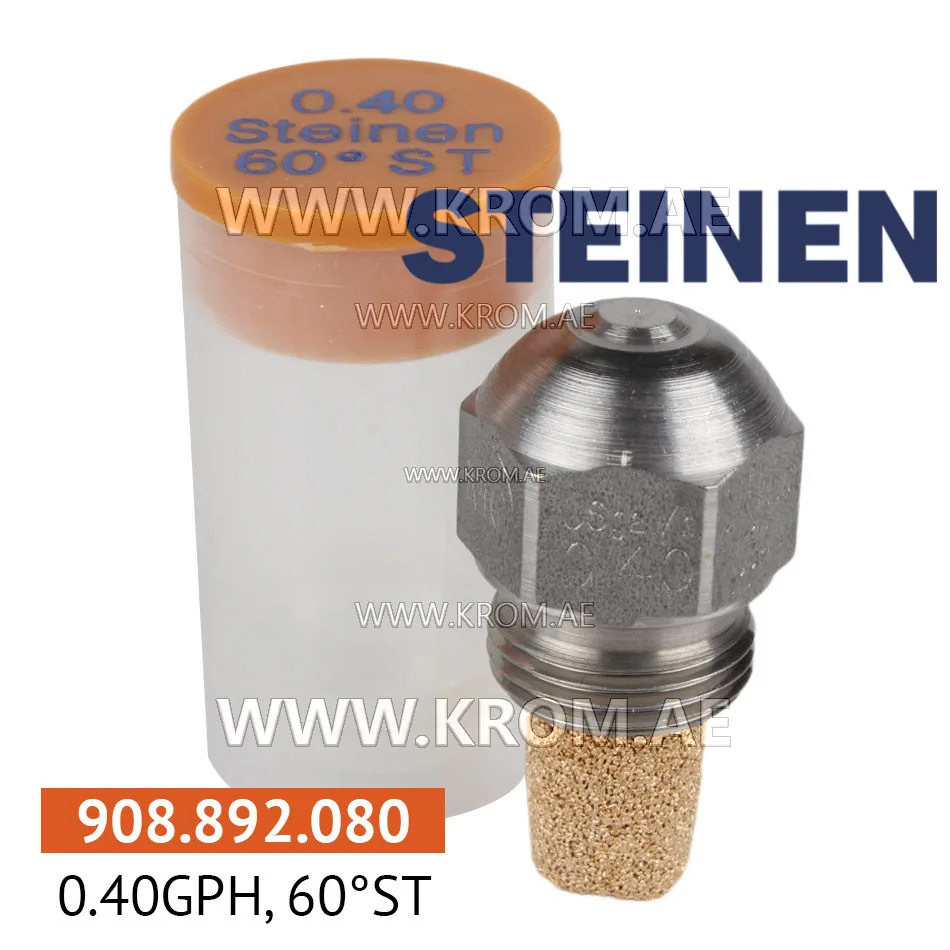

Steinen 0.40GPH, 60ST nozzle

Steinen 0.40GPH,60ST nozzles designed to minimize the plugging problems associated with very low flow rates. The special interior design of Steinen 0.40GPH,60ST oil nozzles flushes contaminants through, limiting build-up. Steinen 0.40GPH,60ST oil burner will satisfactorily interchange with other hollow and solid cone nozzles. Steinen 0.40GPH,60ST nozzle reduces plugging with patented technology that forces particulates and other contaminants through and out the nozzle. With Steinen 0.40GPH,60ST oil nozzles, fluid flows through the filter into the slots and is metered prior to exiting. The slots designed to force fluid into a swirling motion where particles are kept in suspension. The nozzle contains short slot openings that are perpendicular to fluid flow. Steinen 0.45GPH,60ST oil nozzle technical data: Capacity: 0.4 gallons/hour Spray angle: 60 degrees Nozzle type: ST Solid cone nozzles are designed to produce a fine atomized uniform spray distribution pattern.
