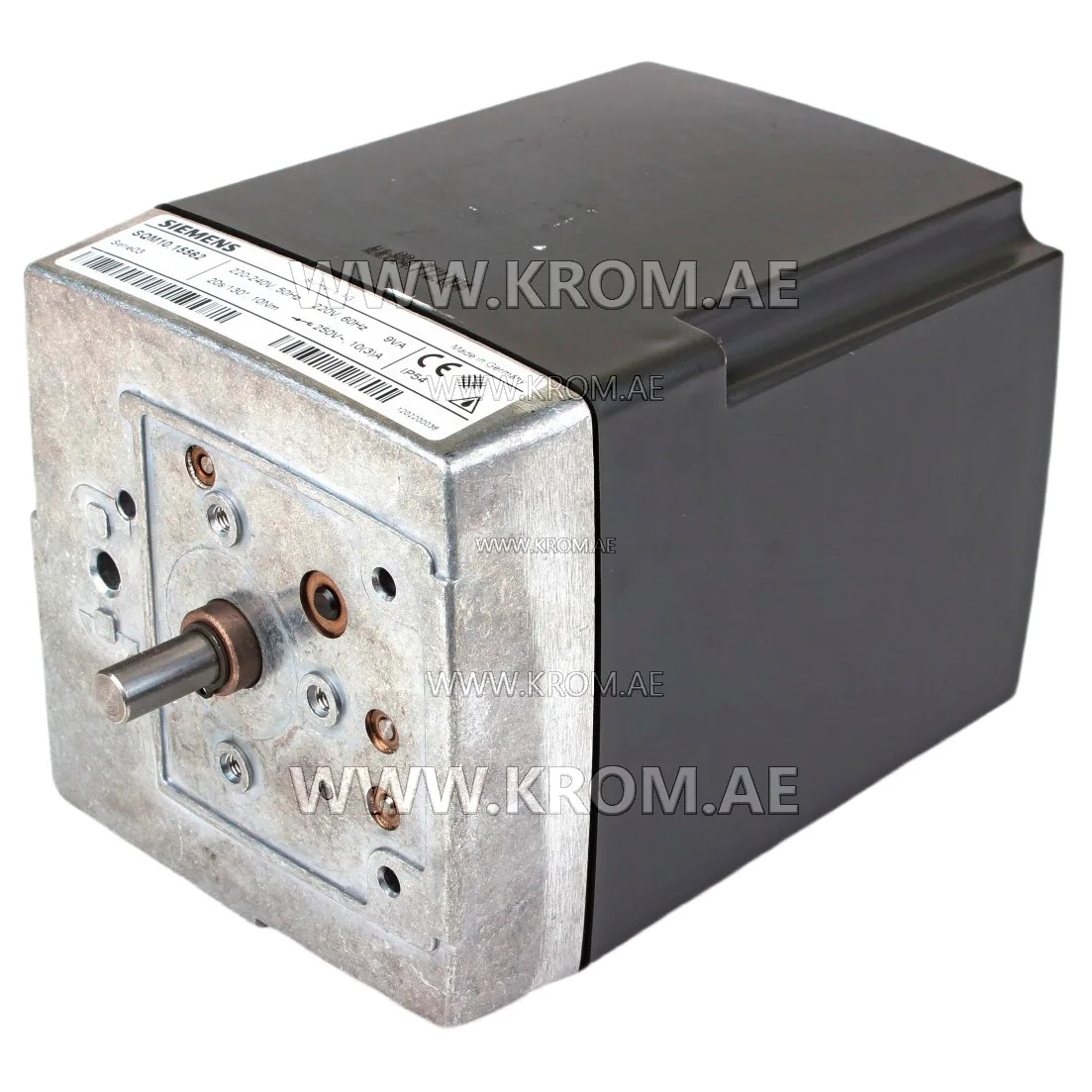

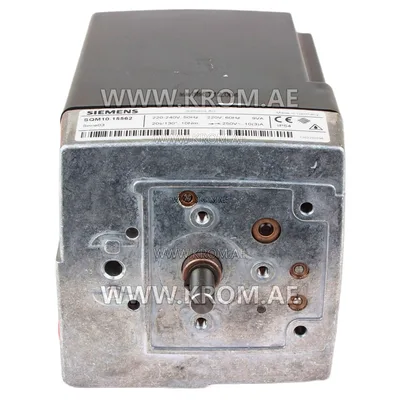

Siemens SQM10.15562 actuator

Siemens SQM10.15562 actuator (10 Nm, 230V, 90°/14s) Siemens SQM10.15562 is a high-precision reversing actuator (electric drive) for controlling air and gas dampers in industrial and commercial burners. It is a reliable solution for automating combustion processes in boiler rooms, drying chambers, furnaces, and heat generators. Why choose SQM10.15562: Fast and accurate positioning — 90° in 14 seconds, 130° in 20 seconds. High torque — 10 Nm (starting torque 10 Nm) ensures reliable operation with medium-sized dampers. Multifunctionality — equipped with 5 auxiliary switches for flexible integration into the automation system. Siemens reliability — designed to work with combustion controllers, provides precise air/gas ratio control. Easy installation — standard mounting, 230V 50/60 Hz connection, IP54 protection degree. Main technical specifications: Model: SQM10.15562 Type: Reversing electromechanical actuator Torque: 10 Nm Running time: 90° — 14 sec, 130° — 20 sec Supply voltage: 220–240 V, 50/60 Hz Power consumption: 9 VA Number of auxiliary switches: 5 Rotation range: up to 160° Ambient temperature: -15...+70°C Application: drive for air and gas dampers, control valves in gas and liquid fuel burners. Siemens SQM10.15562 is German quality and proven reliability for automatic combustion control systems. The actuator ensures stable burner operation, optimal fuel combustion, increased efficiency, and safety of boiler equipment. Order the Siemens SQM10.15562 actuator right now! Original Siemens products, full warranty, certificates of conformity, fast delivery across Russia, and professional technical support.
