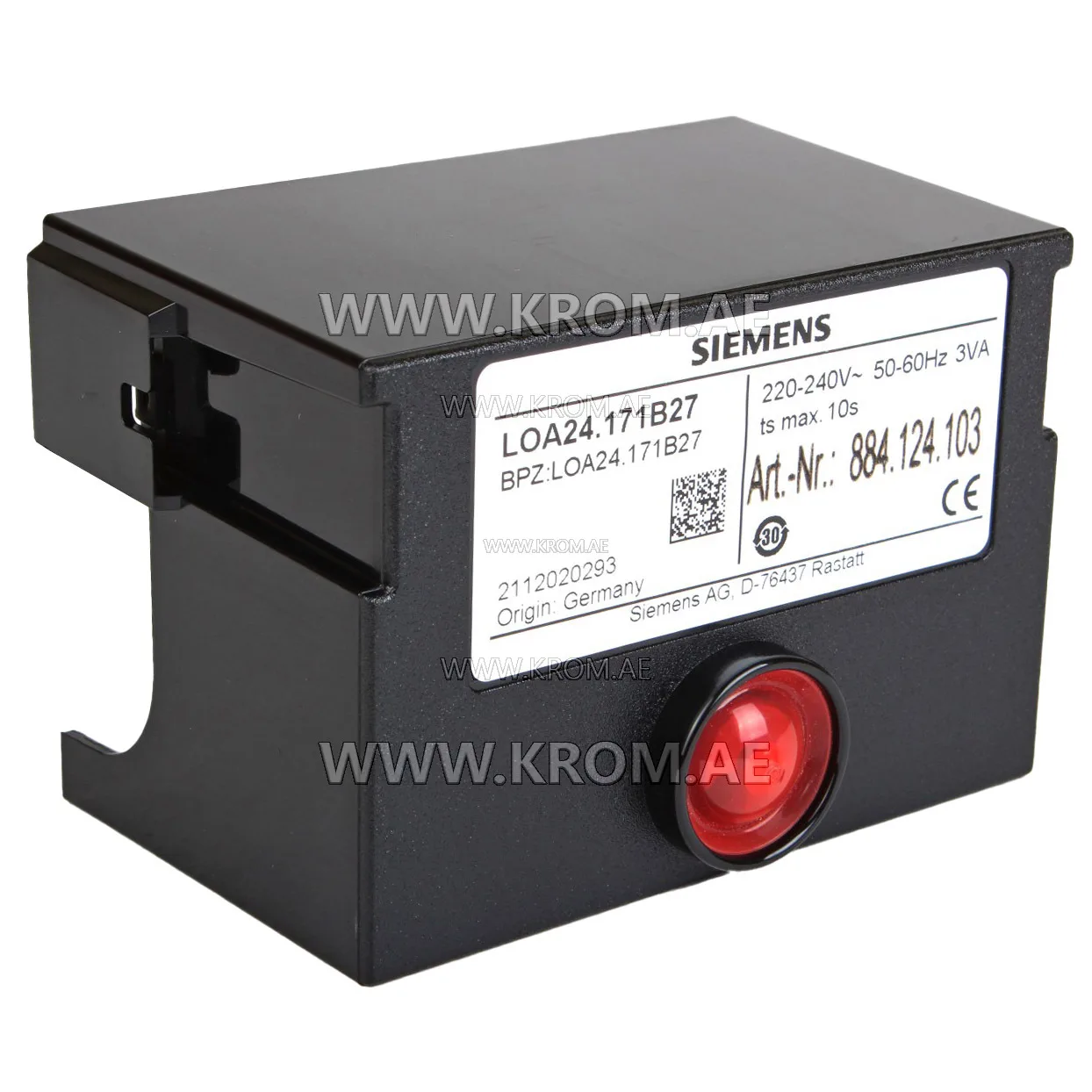

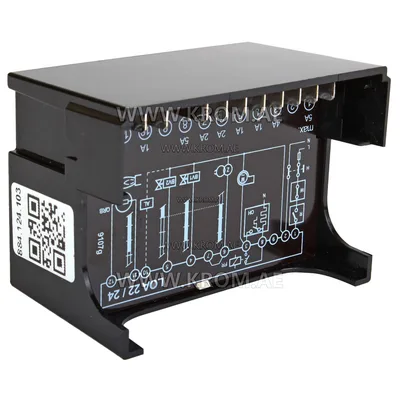

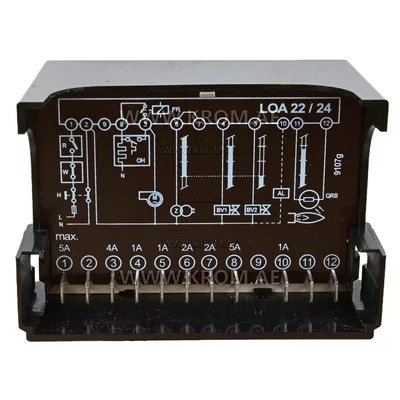

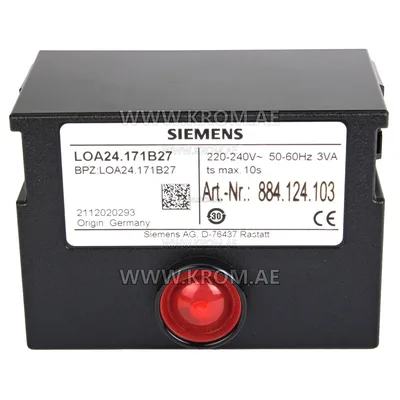

Siemens LOA24.171B27 control box

This is a Siemens LOA24.171B27 control box, catalogue article 884.124.103. A burner control box (flame safeguard) of this type governs the ignition sequence and enforces the safety times: pre-purge, ignition, fuel admission, flame proving, and lockout on failure. It reads signals from pressure switches and the flame detector, and drives the ignition transformer, fuel valve, and fan. Such controls are central to the safe operation of oil and gas burners. Selection of a replacement control box requires matching the exact series and type designation, supply voltage, safety times (pre-purge and flame proving), and flame detection method (ionisation, UV, or IR). The physical base or plug pattern must also correspond to the burner wiring. Control boxes of this class are typically not interchangeable across different series, even within the same brand. Using a control with mismatched safety times creates a safety hazard, not a mere compatibility issue. For electronic control boards (PCB) used in modern wall-hung boilers, the board is matched to the specific boiler model and cannot be substituted without reference to the manufacturer’s specifications. When replacing a control box of this type, always verify the original part number and the parameters printed on the device label. No assumptions about cross-compatibility should be made based solely on brand or physical size.
