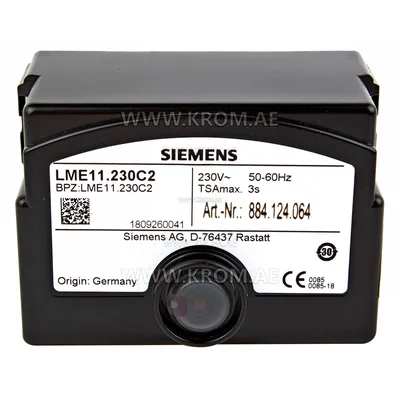

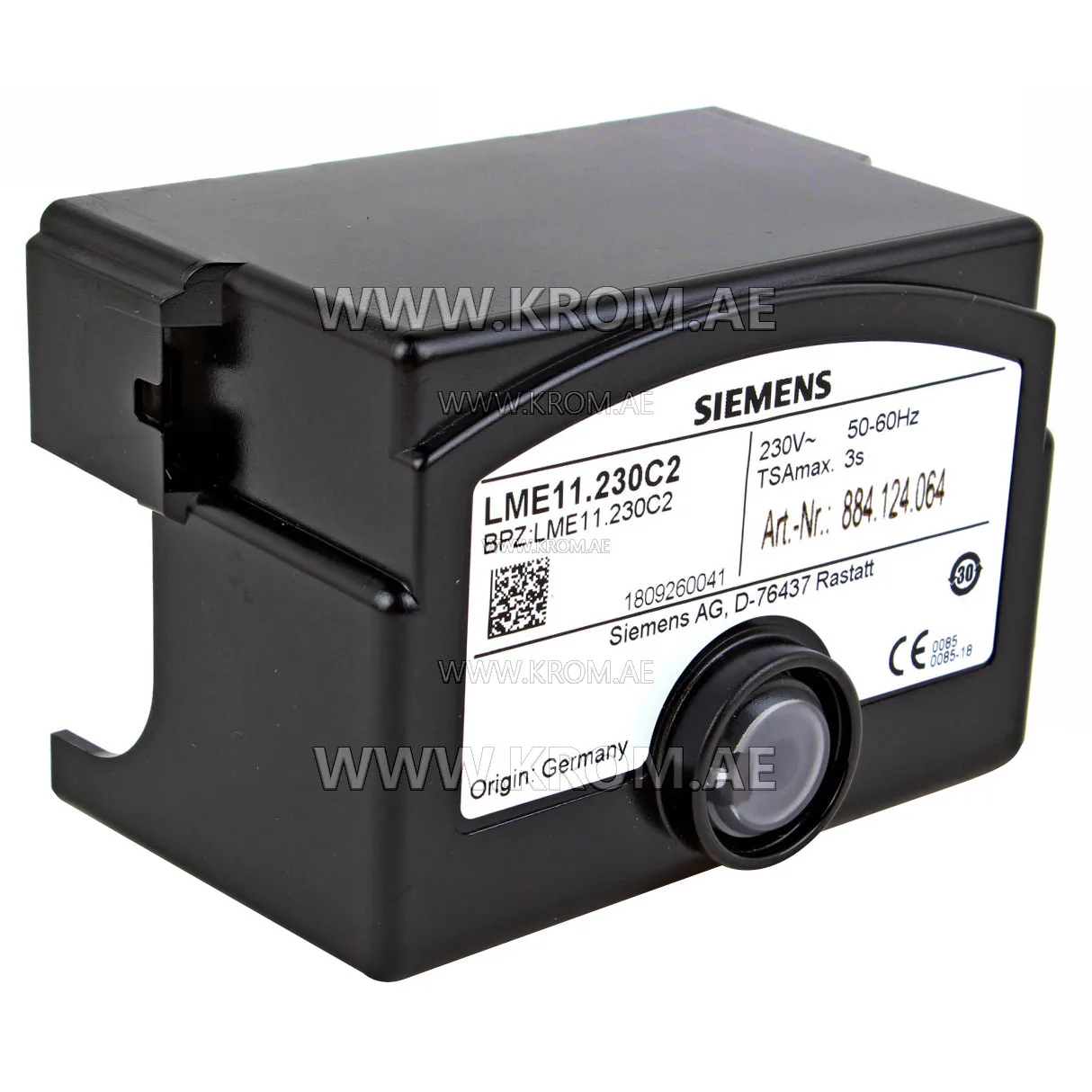

Siemens LME11.230C2 control box

Siemens LME11.230C2 burner automation is designed for control of single-stage and two-stage fan burners of small and medium power. Voltage: AC 230 V. Frequency: 50...60 Hz. Fuse: Max. 10 A. Power consumption: AC 12 VA. Protection class: IP 40. Waiting time: 2.5 sec. Safety time for ignition: 3 sec. Pre-purge time with open air damper: 20 sec. Time to ignition: 2 sec. Post-ignition time: 2.5 sec.
