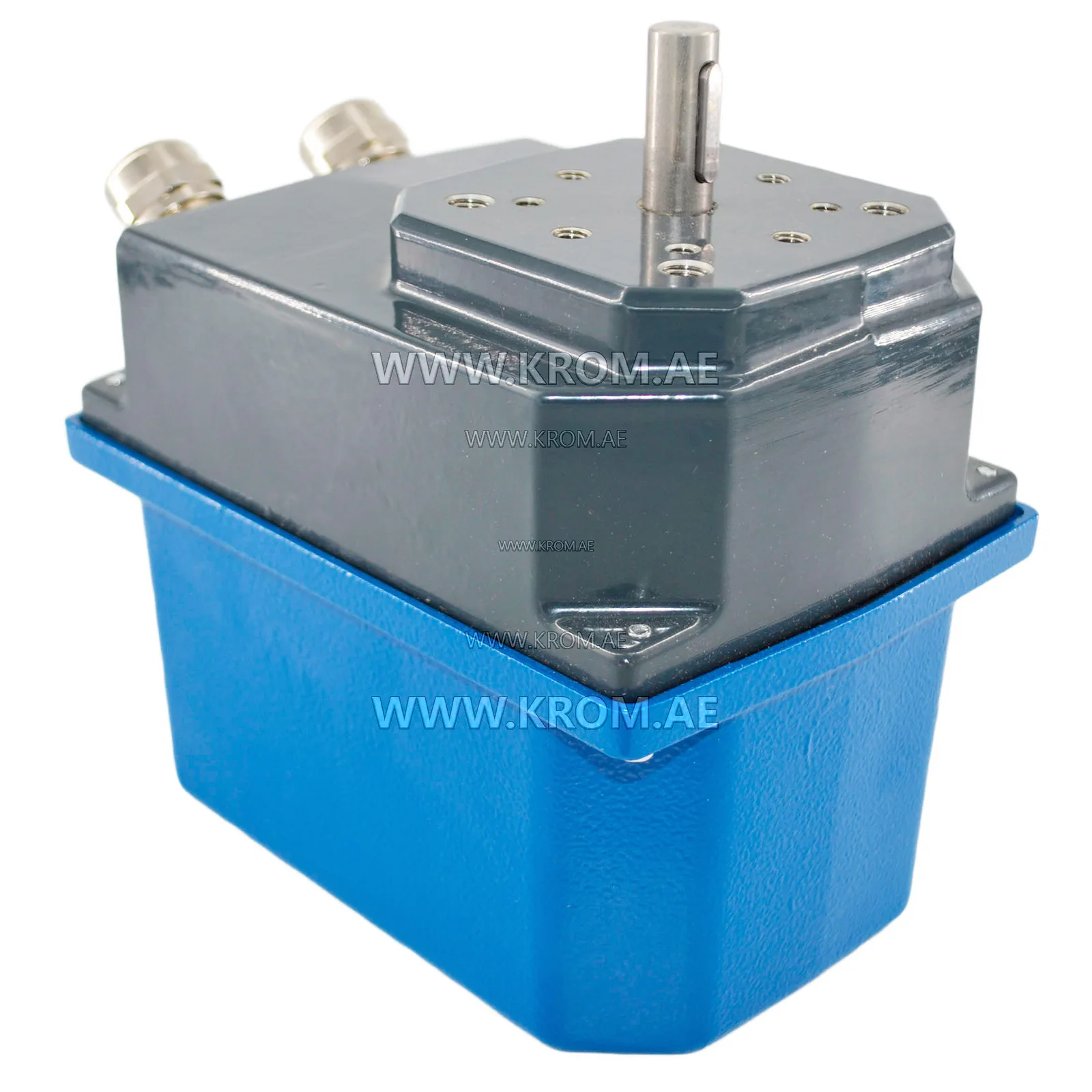

Servo drive Schimpf 12Nm, 01-15/30

Servo drive Schimpf 01-15/30 12Nm — an original actuator for automatic control of air dampers, gas valves, and other regulating elements in burner equipment and industrial automation systems. According to the product card, the drive operates from 230V / 50 Hz, has a travel time of 60 seconds per 90°, torque of 12 Nm, is equipped with two min/max limit switches, supports closed loop control, and works with a 4–20 mA control signal (input and output). The model is used in boiler installations, industrial burners, and automated control systems where precise positioning of dampers and stable position feedback are required. Advantages: original Schimpf servo drive model: 01-15/30 article number: 862712023 torque: 12 Nm power supply: 230V / 50 Hz travel time: 60 sec / 90° control signal 4–20 mA 2 min/max limit switches position feedback function high reliability and long service life. Servo drive Schimpf 01-15/30 12Nm 862712023 — a reliable solution for replacing a faulty actuator and ensuring stable operation of industrial equipment.
