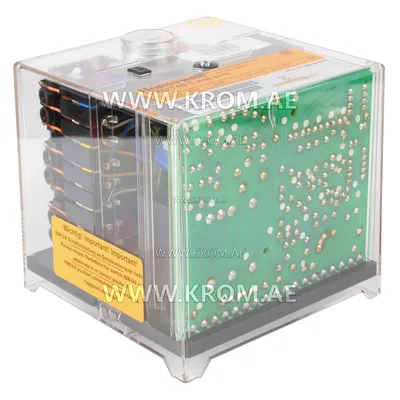

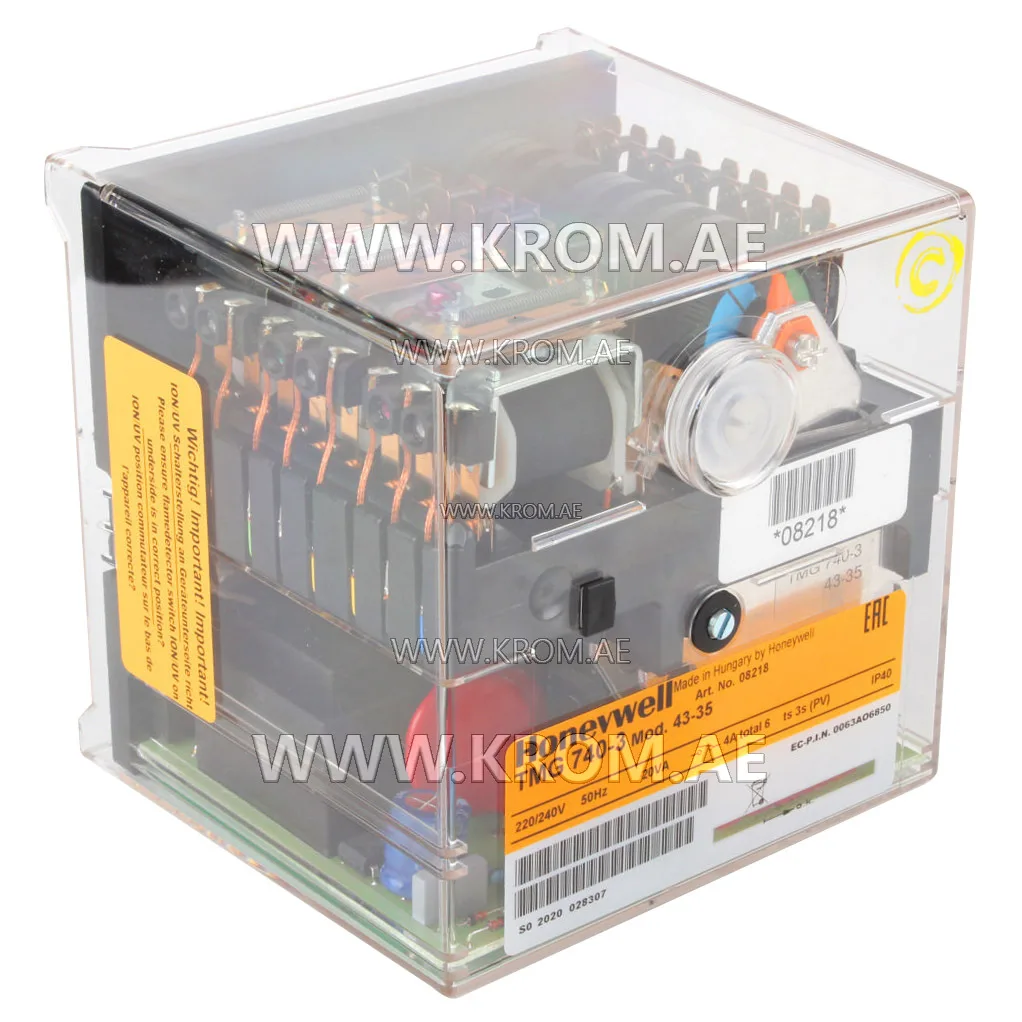

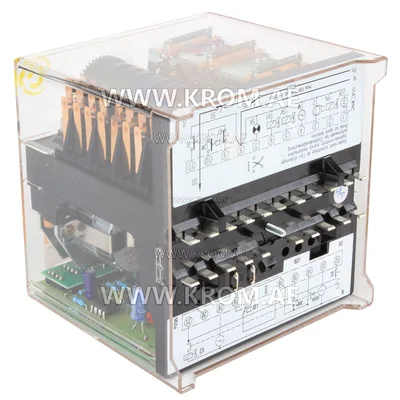

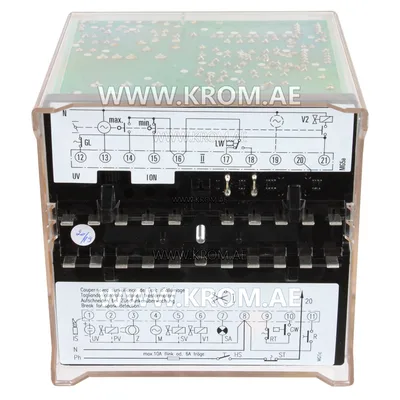

Honeywell TMG740-3 mod.43-35 08218 control box

Satronic TMG740-3 mod.43-35 gas control unit designed for high-performance forced-draught burners and dual-fuel burners with intermittent operation. It supports both single-stage and two-stage burner configurations. This device ensures precise control and efficient regulation of combustion processes, which is crucial for reliable and safe operation of heating systems and hot water supply. Suitable flame detectors: Ionisation probe UV sensor Infra-red flicker detector Resideo TMG740-3 mod.43-35 gas burner safety control box technical data: Controlled pre-purge time: 32 Pre-purge time with an open air flap: 40 Fixed pre-ignition time: 4 Safety interval of the starting valve: 3 Safety interval of the control valve: 3 Control valve activation time: 14 Safety interval of the main valve is 1:5 Valve delay 1:10 Valve delay 2: 10 After purging: 10 Supply voltage: 220 / 240 V (-15... +10%) 50 HZ (40 - 60 Hz) Fuse rating: 10 A rapid, 6 A slow Power consumption: approx. 15 VA Sensitivity Ionisation input: 1.6 µA UV input: 70 µA Weight incl. base: 1100 g Mounting attitude: any Insulation standard: IP 44 Permissable ambient temp.: -20° C to +60° C incl. Classified acc. to EN 298:  BTLLXN
