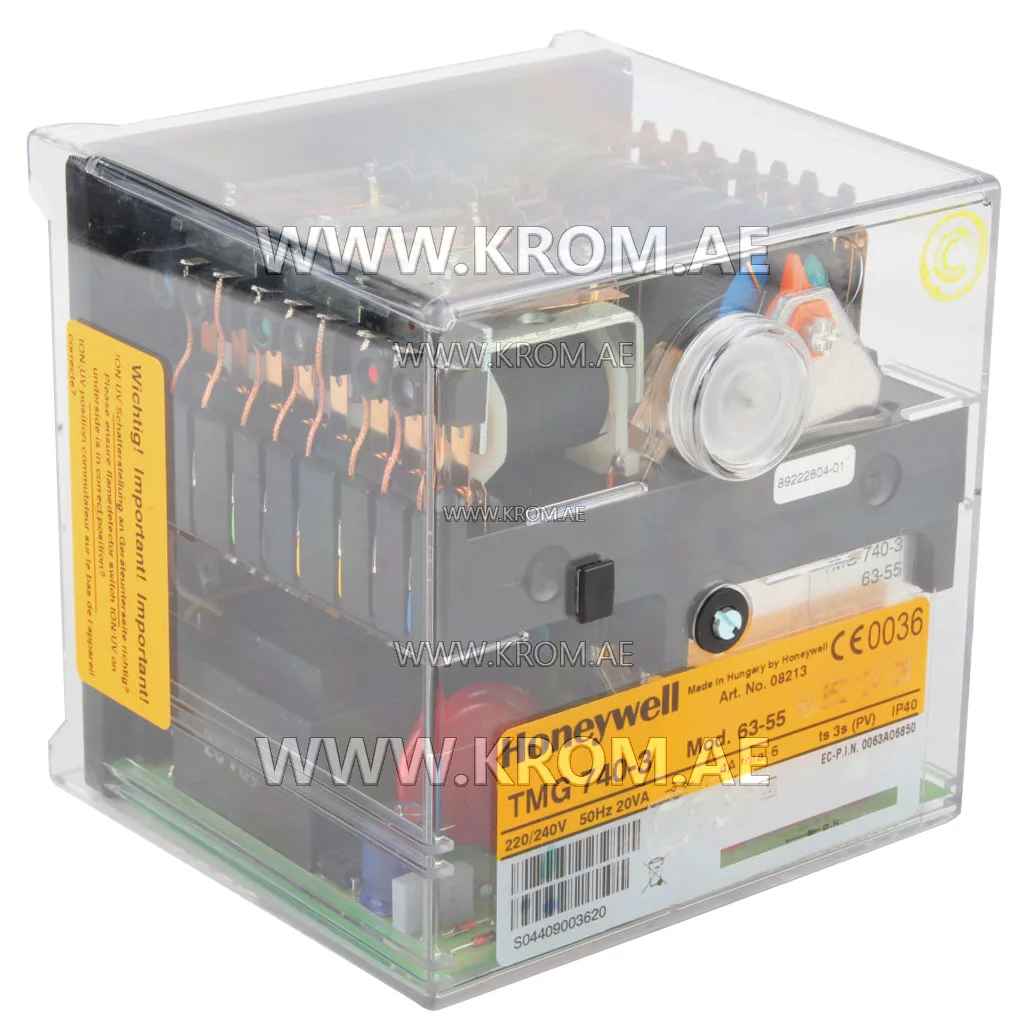

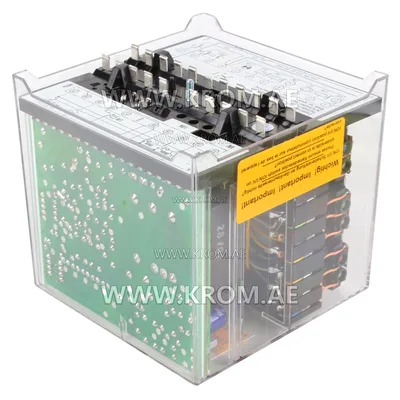

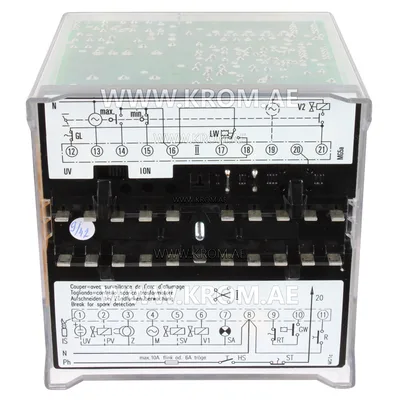

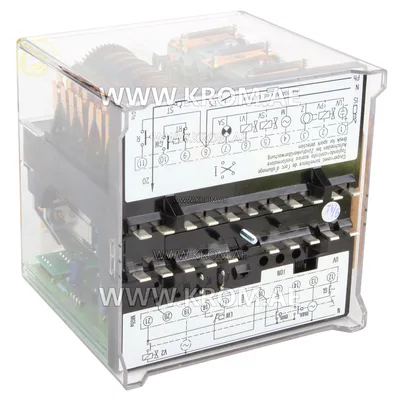

Honeywell TMG740-3 mod.63-55 08213 control box

Honeywell TMG740-3 mod.63-55 08213 gas burner control box designed for high-performance burners with forced draft, as well as for dual-fuel burners with intermittent operation. Resideo TMG740-3 mod.63-55 control unit provides precise control and effective regulation of combustion processes, which is important to ensure reliable and safe operation of heating and hot water supply systems. Suitable flame detectors: Ionisation probe UV sensor Infra-red flicker detector Resideo TMG740-3 mod.63-55 gas burner safety control box technical data: Controlled pre-purge time: 60 Pre-purge time with an open air flap: 60 Fixed pre-ignition time: 4 Safety interval of the starting valve: 3 Safety interval of the control valve: 5 The time of switching on the control valve: 13.5 Safety interval of the main valve is 1:5 Valve delay 1:10 Valve delay 2: 20 After purging: 16 Supply voltage: 220 / 240 V (-15... +10%) 50 HZ (40 - 60 Hz) Fuse rating: 10 A rapid, 6 A slow Power consumption: approx. 15 VA Sensitivity Ionisation input: 1.6 µA UV input: 70 µA Weight incl. base: 1100 g Mounting attitude: any Insulation standard: IP 44 Permissable ambient temp.: -20° C to +60° C incl. Classified acc. to EN 298:  BTLLXN
