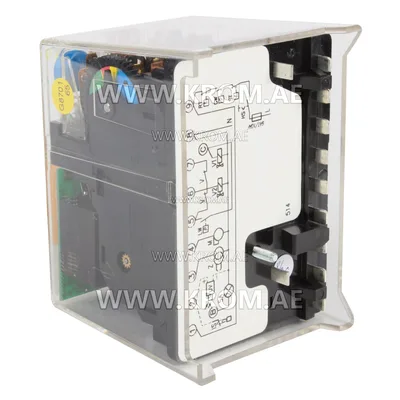

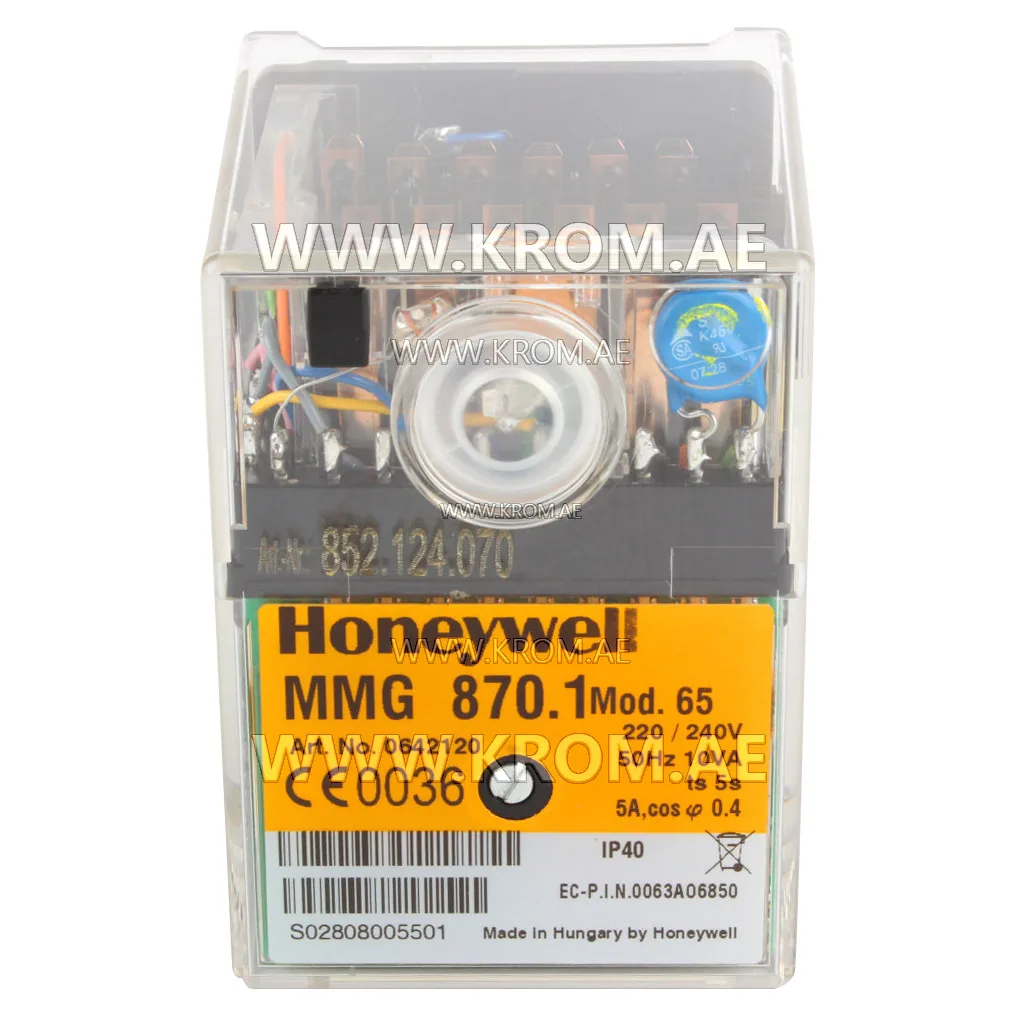

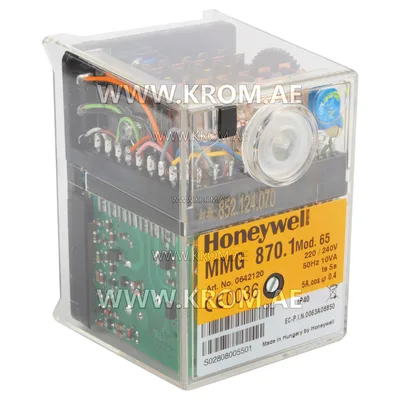

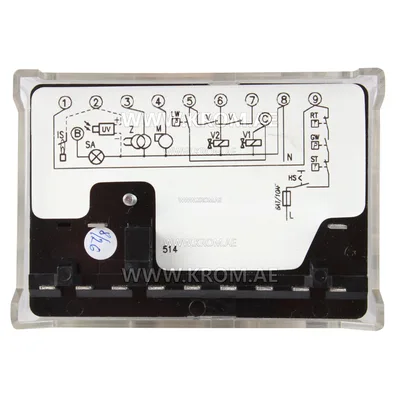

Honeywell MMG870.1 mod.65 0642120 control box

The Honeywell MMG870.1 mod.65 0642120 is a burner control box, also referred to as a flame safeguard. This type of part governs the ignition and safety sequence of a burner: it manages pre-purge, ignition, fuel admission, flame proving, and initiates a safety lockout if flame is not detected within the set safety time. The control box reads signals from pressure switches and the flame detector, and drives the ignition transformer, fuel valve, and fan. Parts of this type are selected by exact series and type designation, supply voltage, required safety and pre-purge times, and the flame detection method used (ionisation, UV, or IR). The physical base or plug pattern must also match the existing mounting. When replacing a burner control, the exact series and model designation are critical. Controls are not interchangeable across series, even within the same brand, because safety times and wiring differ. A mismatched safety time creates an unsafe condition, not merely a performance nuisance. In older or industrial burners, the control box is often a separate unit; in modern wall-hung boilers the same function is performed by an electronic PCB that is matched to the boiler model. The control box does not include the flame detector or ignition transformer, so those components must be verified separately during service. Always confirm the hardware configuration and supply voltage against the original part before ordering.
