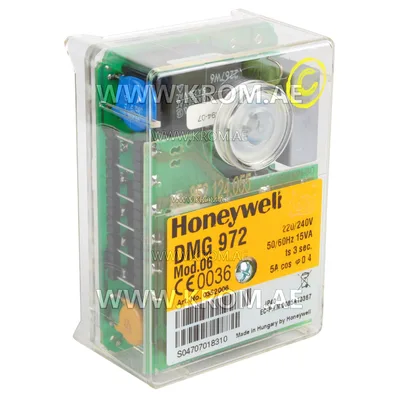

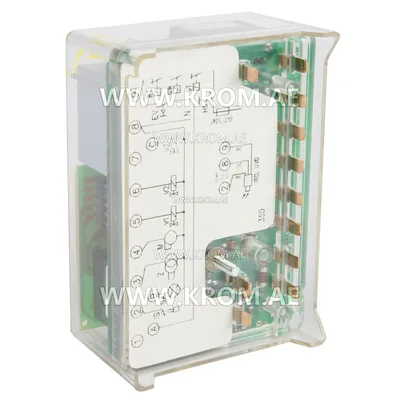

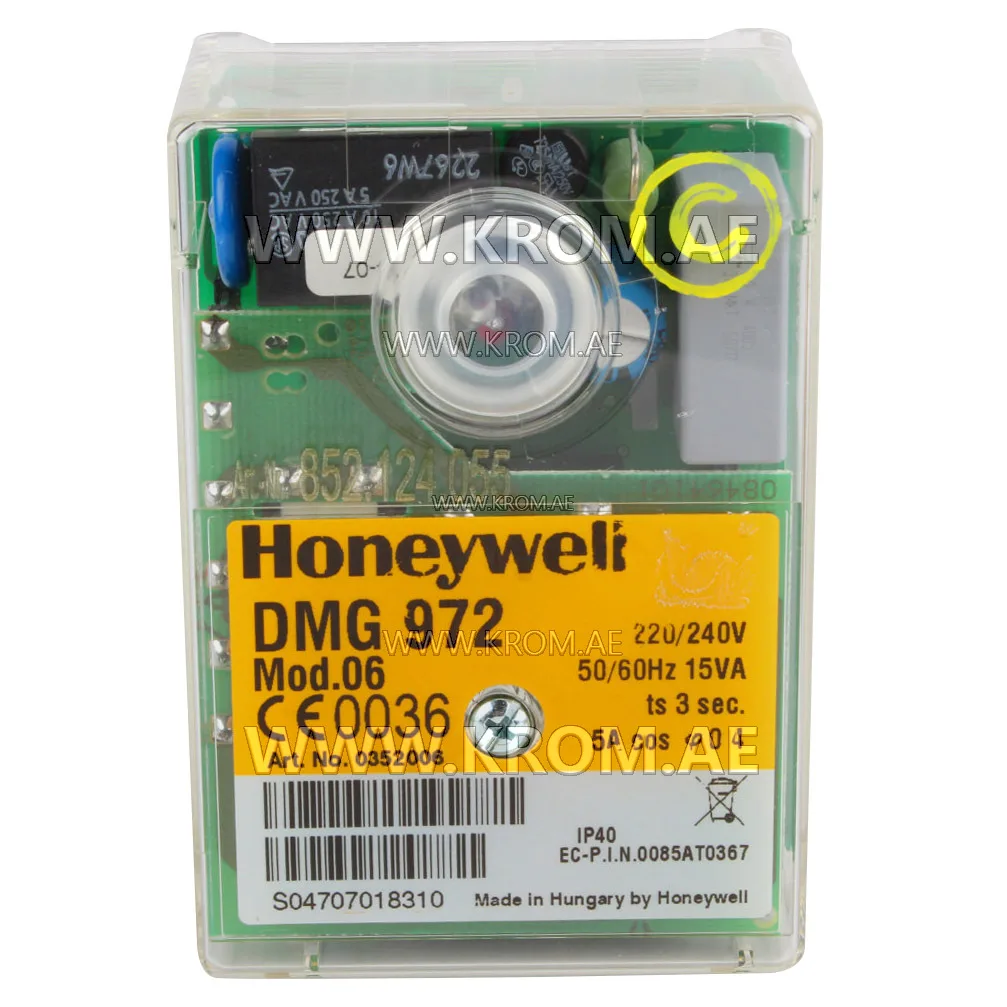

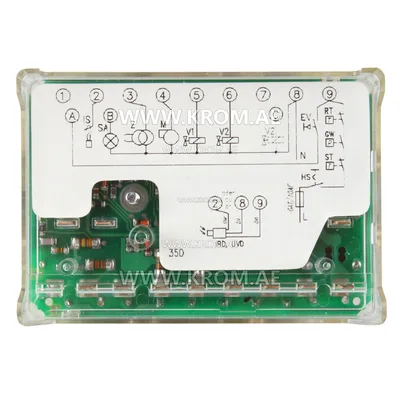

Honeywell DMG972 mod. 06 0352006 control box

Honeywell DMG972 mod.06 0352006 control box controls and supervises power burner for gas and dual fuel. Resideo DMG972 mod.06 control unit designed for maximum safety in case of fluctuations in the voltage supply. This low-voltage protection works not only during start-up but also permanently during operation. Satronic DMG972 mod.06 gas  burner safety control box technical data: Min. required ion. current: 1.5 μA Sensitivity for stray light: 0.4μA Operating voltage: 220 / 240 V (-15... +10%) Air proving switch: 1 working contact 4 A, 230V Stray light monitoring: 5 sec Sensitivity (operation): 1 μA Cable length: < 3 m Weight incl. Wiring base: 190 g Mounting position: any Protection class: IP 40 Approved ambient parameter for control and flame detector: max. 95% at 30° C
