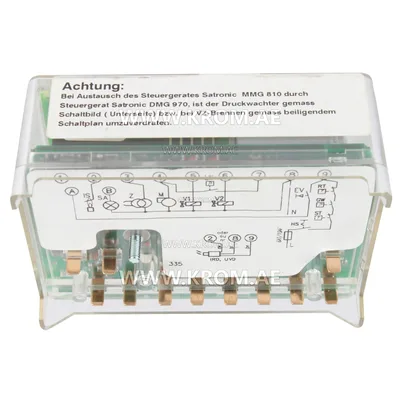

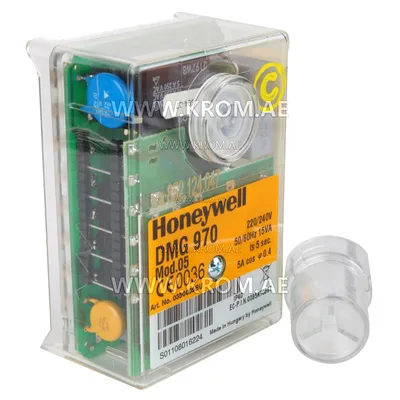

Honeywell DMG970 mod.05 0350805 control box

Resideo DMG970 mod.05 gas burner safety control box controls and supervises power burner for gas and dual fuel. Honeywell DMG970 mod.05 control box technical data: Operating voltage: 220 / 240 V (-15... +10%) Air proving switch: 1 working contact 4 A, 230V Stray light monitoring: 5 sec Sensitivity (operation): 1 μA Min. required ion. current: 1.5 μA Sensitivity for stray light: 0.4μA Cable length: < 3 m Weight incl. Wiring base: 190 g Mounting position: any Protection class: IP 40 Approved ambient parameter for control and flame detector: max. 95% at 30° C Satronic DMG970 mod.05 0350805 gas control unit designed for maximum safety in case of fluctuations in the voltage supply. This low-voltage protection works not only during start-up but also permanently during operation.
