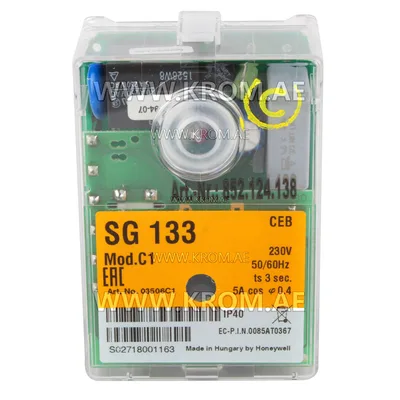

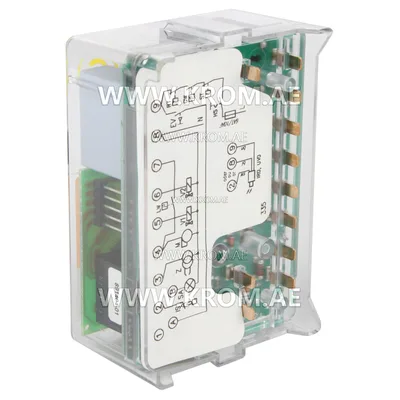

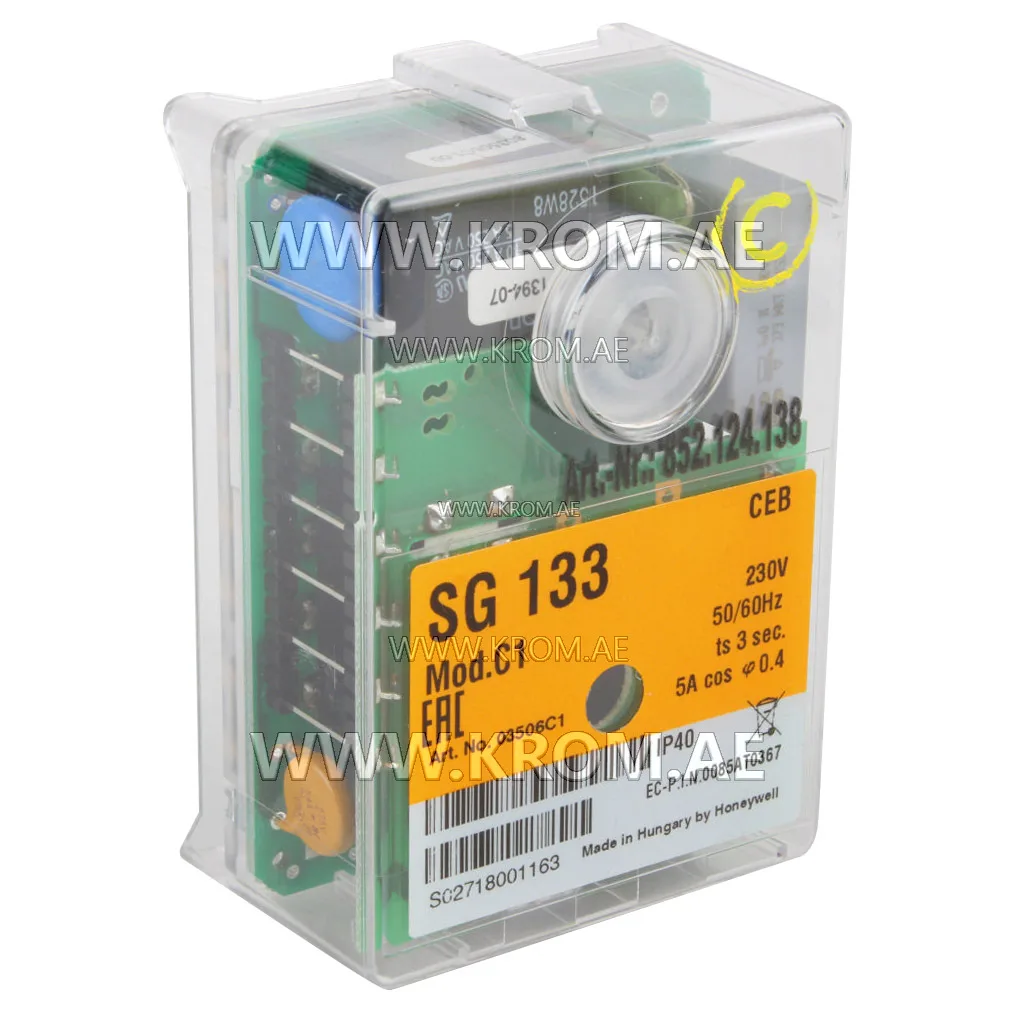

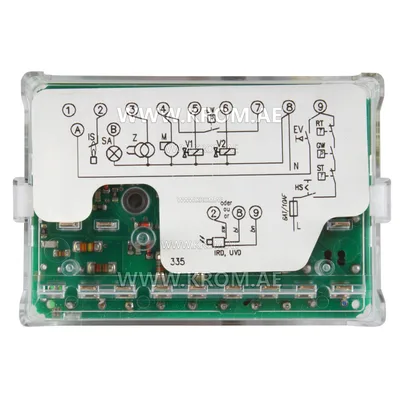

Honeywell SG133 mod.C1 03506C1 control box

Satronic SG133 MOD.C1 03506C1 automatic gas firing device for gas and combined, two-stage or modulated supercharged burners. Possible flame sensor: Ionization probe IRD 1020 infrared detector UV flame sensor UVD 971 Honeywell SG133 MOD.C1 gas control unit technical data: Max. response time for TLW air pressure switch: 60 s TV1 pre-ventilation time: 0 s Time before setting fire to TVZ: 3 s Time after ignition tn: 2 s Stray light control TF: 2.5 s Safety time ts: 3 s Delay of the 2nd stage: 12.5 s Operating voltage: 230 V (-15...+10%) 50/60 Hz (±5%) Input fuse: 10 A high-speed, 6 A inert Power consumption: approximately 12 VA Air pressure switch: 1 working contact 4 A, 230 V Sensitivity: 1.0 µA Minimum required ionization current: 1.5 µA Sensitivity to outside light: 0.4 µA Wire length: < 3 m Weight with base: 190 g Installation position: any Protection: IP 40
