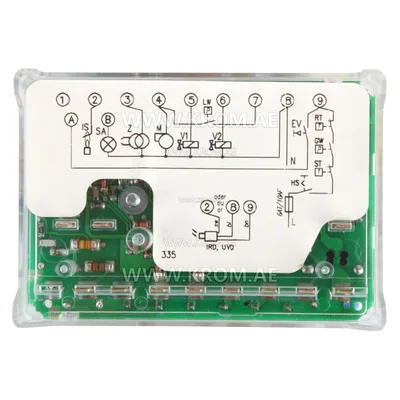

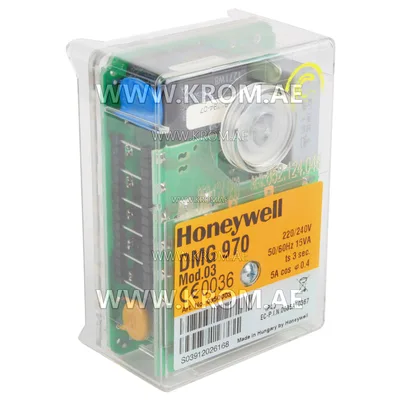

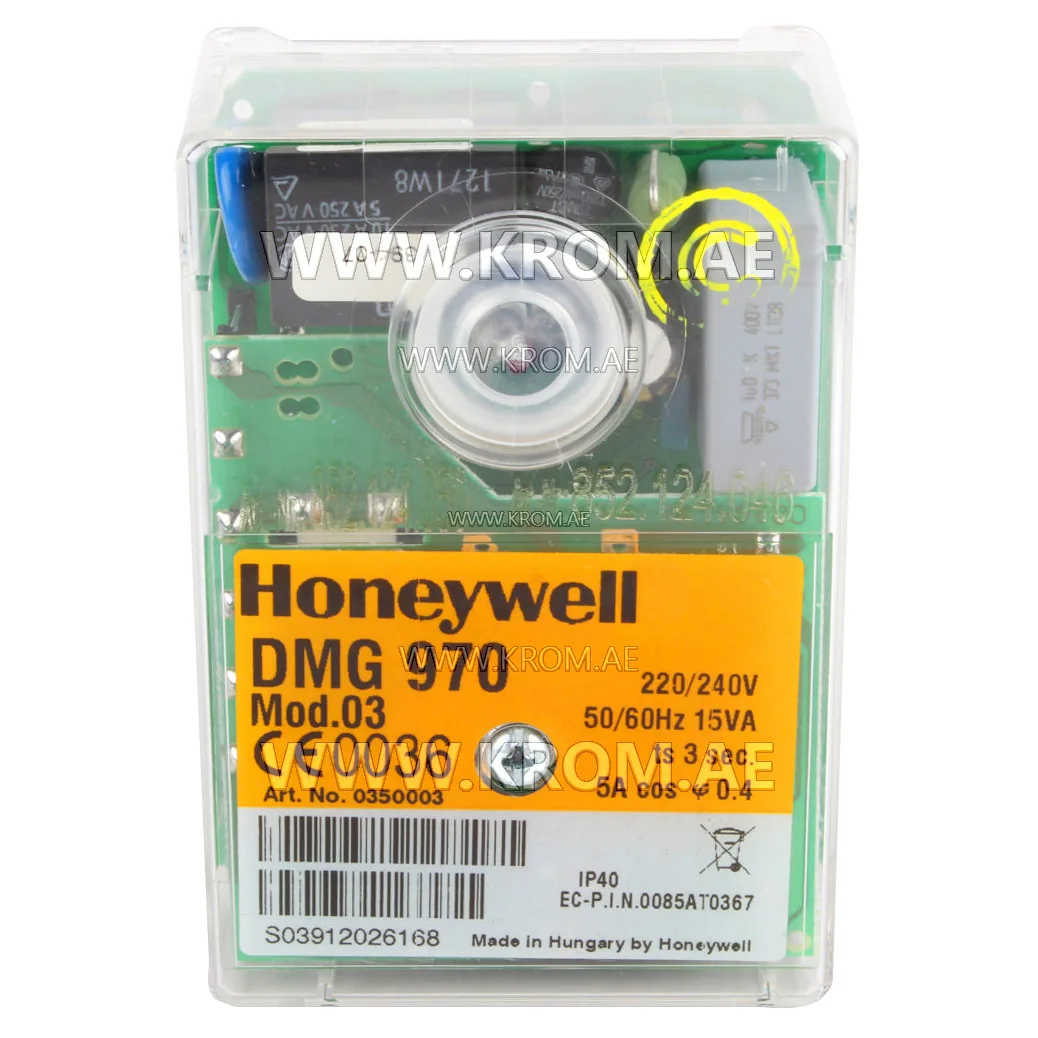

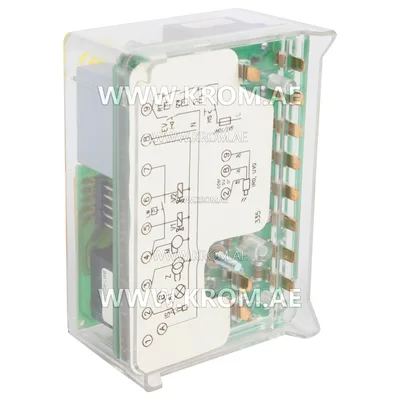

Honeywell DMG970 mod.03 0350003 control box

Honeywell DMG970 mod.03 gas burner safety control box controls and supervises power burner for gas and dual fuel. For 2-stage forced draught and combi oil/gas burners. Possible flame detectors: Ionisation probe Infrared flicker detector 1020.1 UV flame sensor UVD 971 Resideo DMG970 mod.03 0350003 control box technical data: Operating voltage: 220 / 240 V (-15... +10%) Air proving switch: 1 working contact 4 A, 230V Stray light monitoring: 5 sec Sensitivity (operation): 1 μA Min. required ion. current: 1.5 μA Sensitivity for stray light: 0.4μA Cable length: < 3 m Weight incl. Wiring base: 190 g Mounting position: any Protection class: IP 40 Approved ambient parameter for control and flame detector: max. 95% at 30° C Satronic DMG970 mod.03 control unit approved and certified according the relevant European standards. The use on direct air heaters according DIN 4794 is also possible.
