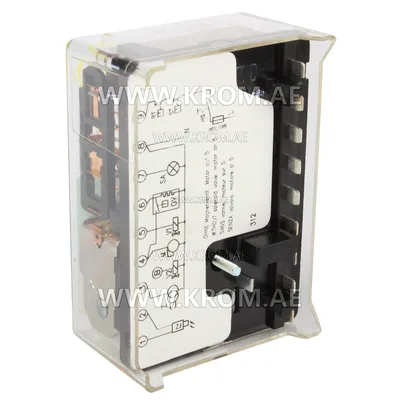

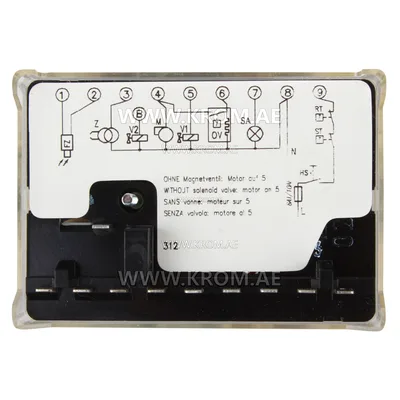

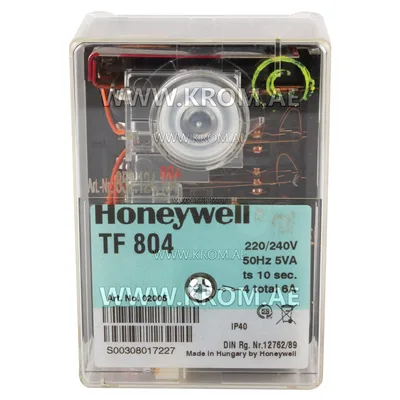

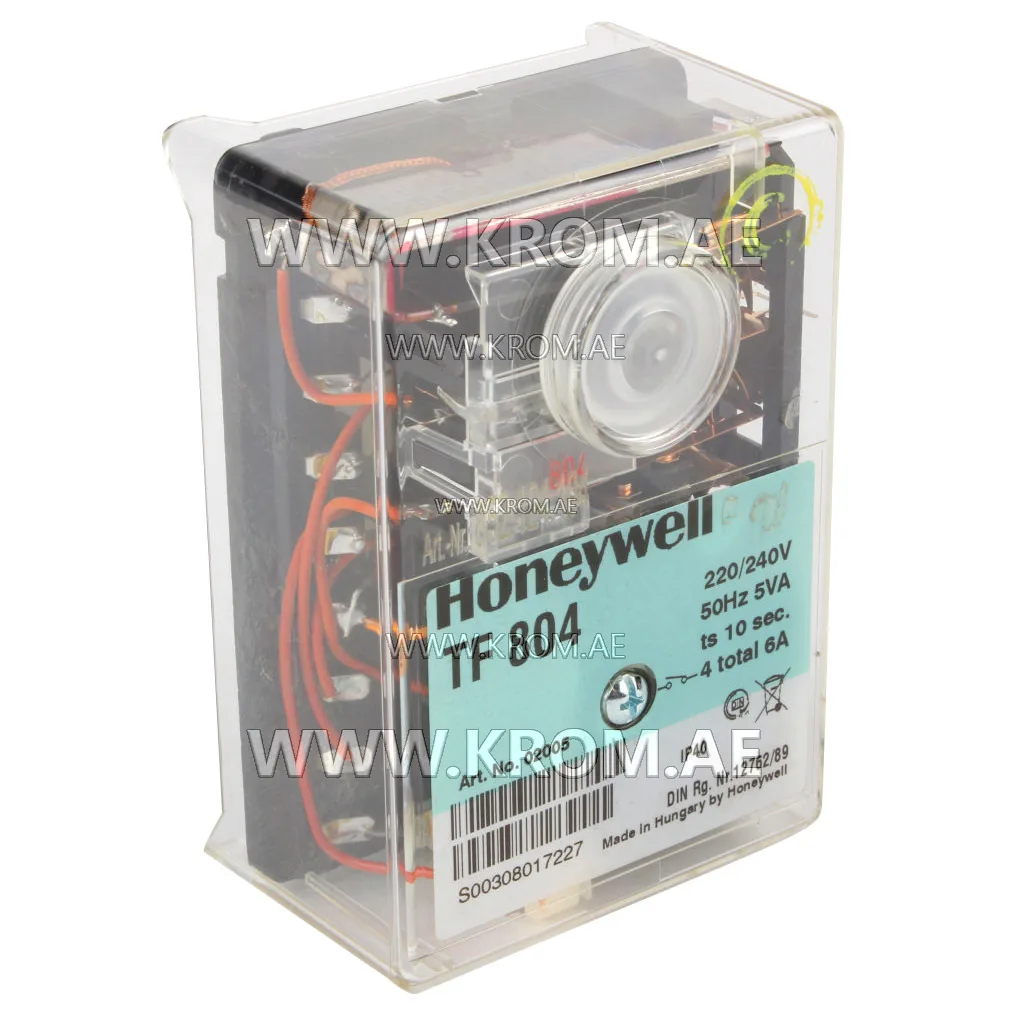

Honeywell TF804 02005 control box

The Honeywell TF804 02005 control box is a burner control unit, also referred to as a flame safeguard. Parts of this type manage the ignition sequence and enforce the safety times: pre‑purge, ignition, fuel admission, flame proving, and lockout if the flame is not confirmed within the allowed period. The control reads signals from the air pressure switch and the flame detector, and it drives the ignition transformer, the fuel valve, and the fan. In a typical boiler or burner system, such a control box sits between the thermostat or controller on one side and the actuators and sensors on the other. Controls in this category are selected by exact series and type designation, supply voltage, the specific safety and pre‑purge times, and the flame detection method – ionisation, UV, or IR. The base or plug pattern must also match the burner. A control is normally not interchangeable across different series, even within the same brand. Using a unit with mismatched safety times creates a safety issue, not just a nuisance. When replacing a control box of this type, confirm that the replacement carries the same series identifier and that the wiring pattern and timing parameters are identical to the original. Electronic control boards (PCB) in modern wall‑hung boilers perform the same role but are matched to the individual boiler model and cannot be substituted.
