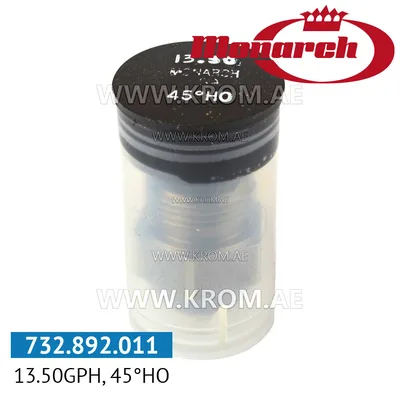

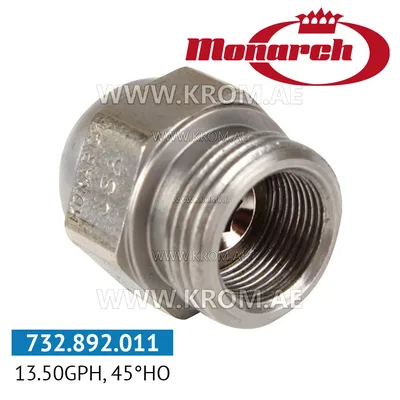

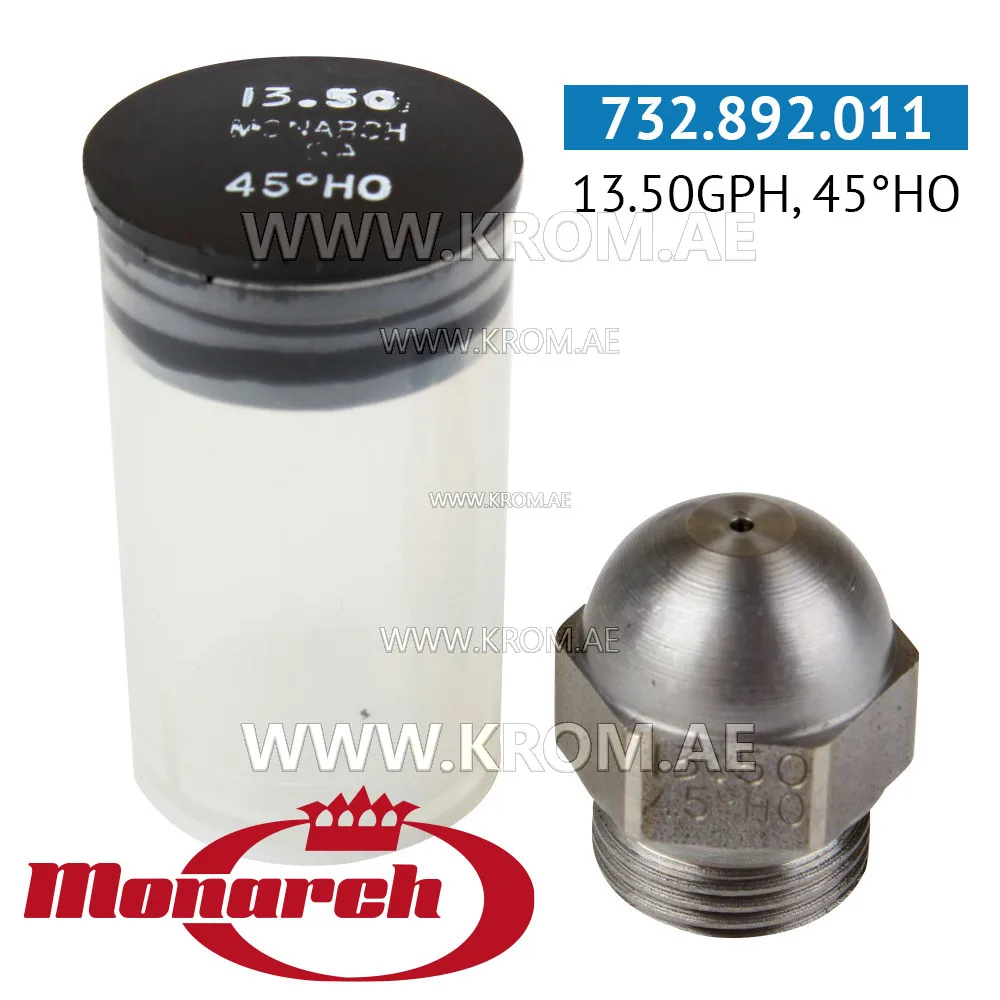

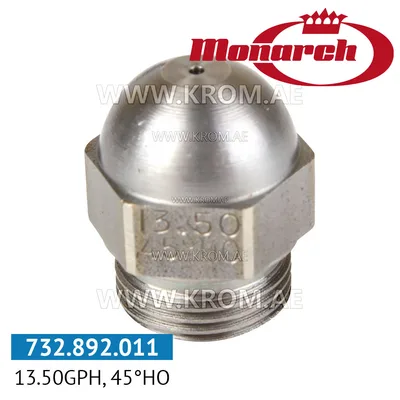

Monarch 13.50GPH, 45HO nozzle

Monarch 13.50 GPH, 45HO nozzles in burners are devices that are used to spray fuel in the combustion chamber. They play a key role in the fuel combustion process, ensuring uniform and efficient mixing of fuel with air. Features of Monarch 13.50 GPH, 45HO oil burner nozzle: Fuel sprayed in the combustion chamber. Ensure uniform mixing of fuel with air. Consist of a metal housing with a hole or channel. High-pressure fuel passes through them. The holes or nozzle design disperse the fuel into small droplets. The size, shape and location of the holes can be adjusted to the operating conditions of the burner. The quality of the injectors affects combustion efficiency, fuel consumption and emissions of harmful substances. Regular maintenance and checking of the injectors are important to keep the burner running. Monarch 13.50 GPH, 45HO oil burner nozzle technical data: Capacity: 13.5 gal/hr Spray angle: 45 degrees Nozzle Type: HO Designed for use on 70 SSU (approx. 13 centistokes) operating viscosity oil at operating pressures ranging from 200-450 PSIG (13.8 to 31bar).
