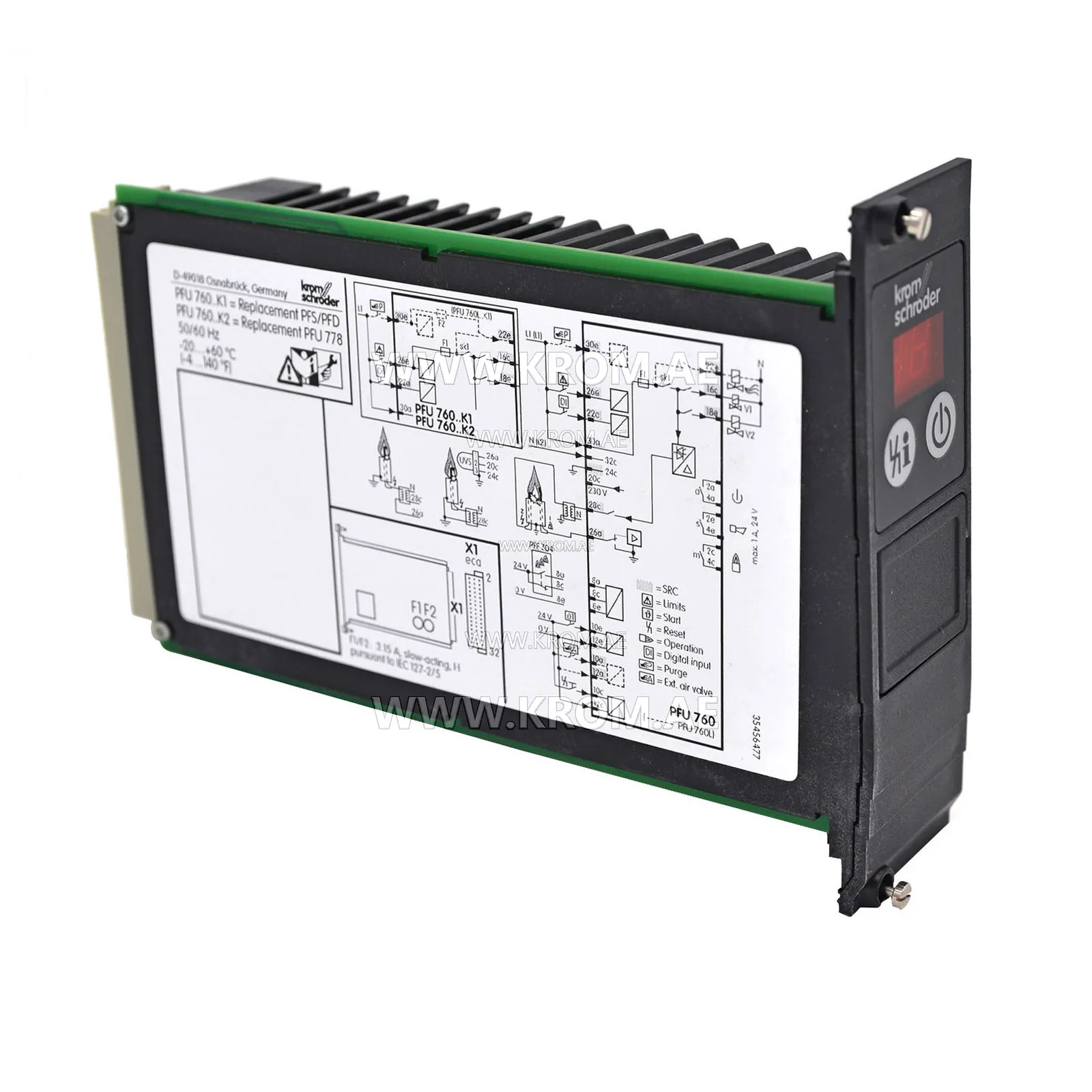

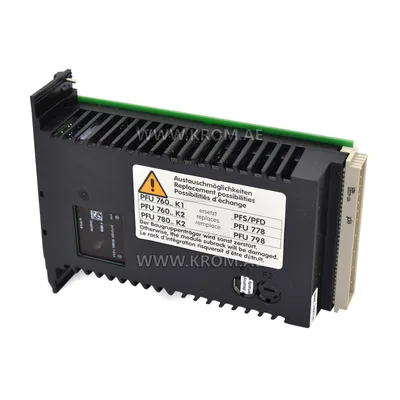

Kromschroeder PFU760LTK1 (88651433) burner control unit

The Kromschroeder PFU760LTK1 88651433 ignition system is compatible with both ionization and ultraviolet flame sensors (UVS or UVD Kromschroder). Kromschroder PFU760LTK1 88651433 gas control unit technical data: Mains voltage: 220/240 V AC, -15/+10%, 50/60 Hz. Power consumption: 8 VA, plus inherent consumption of the ignition transformer. Output current: max. 2 A per output, but total current for valves and ignition transformer: max. 2.5 A. Operation and fault signalling contacts: dry contact (floating), max. 1 A, 24 V, not fused internally. Flame control: sensor voltage approx. 230 V AC, sensor current > 1 μ Length of sensor cable: max. 100 m (328 ft). Ambient temperature: -20 to +60°C (-4 to +140°F). No condensation permitted. Enclosure: IP 00. Number of operating cycles: max. 1,000,000 for 1 A resistive load. Mains switch: 1000 Reset/Information button: 1000. Weight: 65 kg (1.43 lb). Krom schroder PFU760LTK1 88651433 control unit certification: Directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility Directive 2004/108/EC Gas Appliances Directive 2009/142/EC Standards: EN298 EN 60730 EN 61508:2002, Parts 1-7
