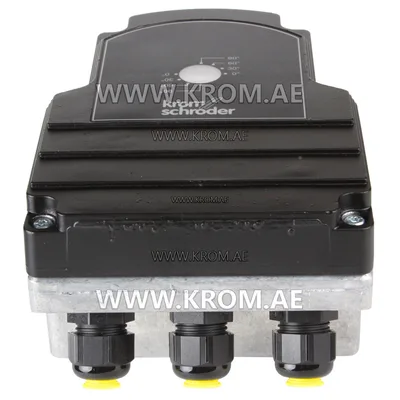

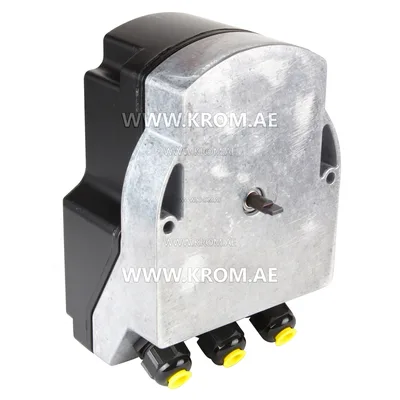

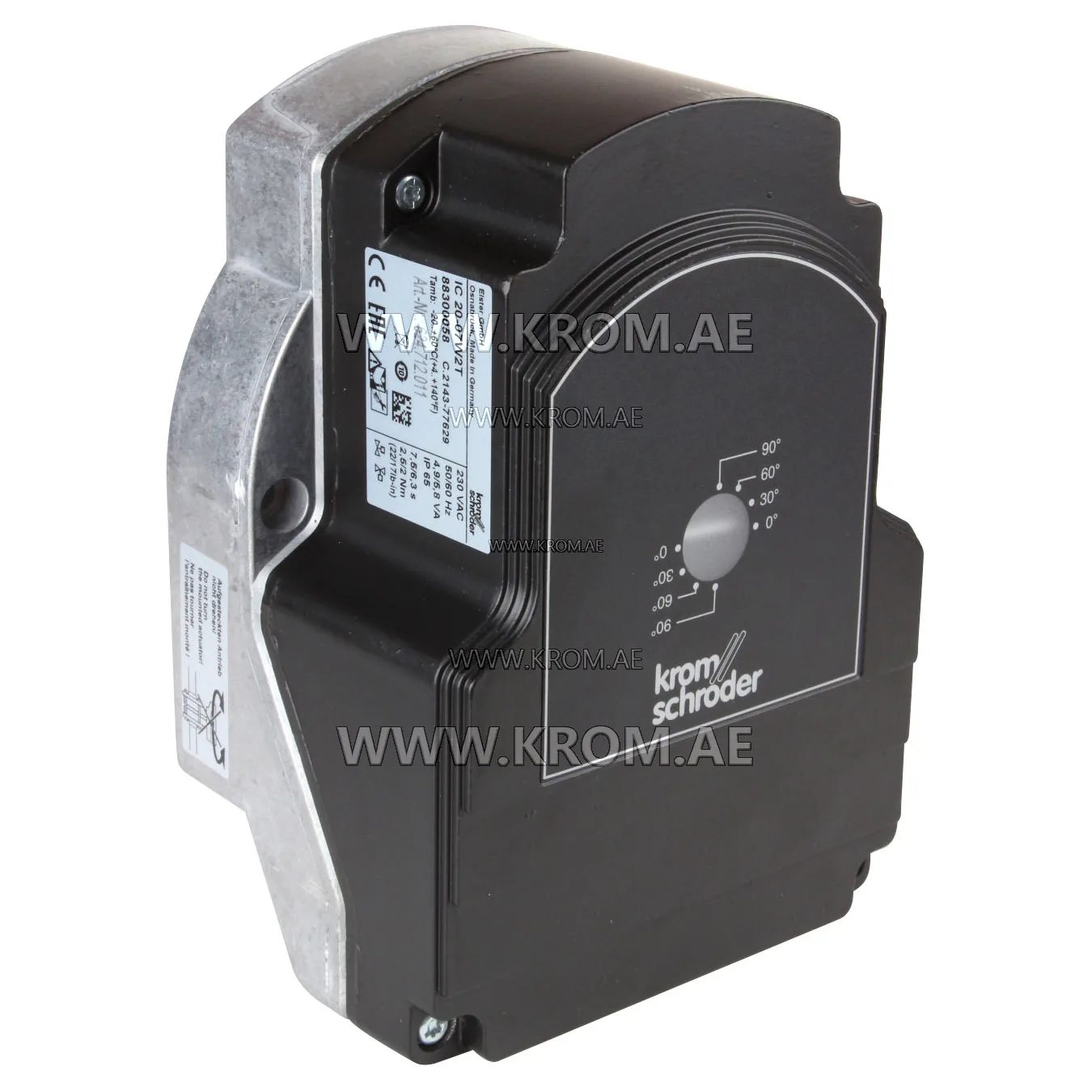

Kromschroeder IC20-07W2T (88300058) actuator

Kromschroeder IC 20-07W2T 88300058 servomotor is designed for all applications that require precise, controlled rotary movement between 0° and 90°. If the voltage is disconnected, Kromschroder IC 20-07W2T 88300058 actuator stops at the current position. The combination of Kromschroeder IC 20-07W2T 88300058 servo motor and control element is designed to adjust volumes of gas and air on various appliances and flue gas lines. Kromschroder 88300058 IC 20-07W2T actuator and butterfly valve BV.. (IB..) are designed for control ratios of up to 10:1 for gas, cold and hot air and flue gas. Krom schroder 88300058 IC 20-07W2T servomotor and linear flow control VFC (IFC) are designed for control ratios of up to 25:1 for gas and cold air. Kromschroder IC 20-07W2T 88300058 servo motor technical data Screw terminals using the elevator principles for cables up to 4 mm2 (single core cables) and for cables up to 2.5 mm2 with wire end ferrules Angle of rotation: 0 – 90°, adjustable Holding torque = torque Safety class: I Duty cycle: 100% Line entrance: 3 x M20 plastic cable glands Ambient temperature: -20 to +60°C, no condensation permitted Storage temperature: -20 to +40°C Resistance of the feedback potentiometer: 1 kΩ, max. 0.5 W Series 20, with voltage-free limit switches Running time: 07 s/90° Mains voltage: 230 V AC, 50/60 Hz Torque: 2 Nm Three-point step control Weight: 1,95 kg Certification Kromschroeder 88300058 IC 20-07W2T servo motor Kromschroder IC 20-07W2T 88300058 servomotor complies with the requirements of the following Directives and Standards: Directives: 2014/35/EU 2014/30/EU Standards: DIN EN 60730-1
