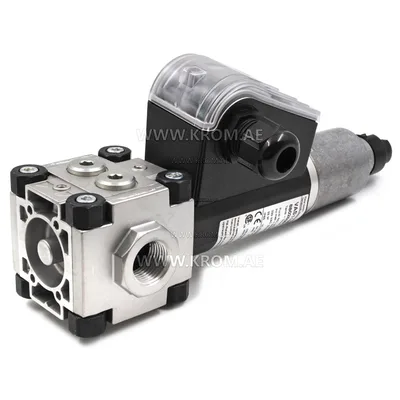

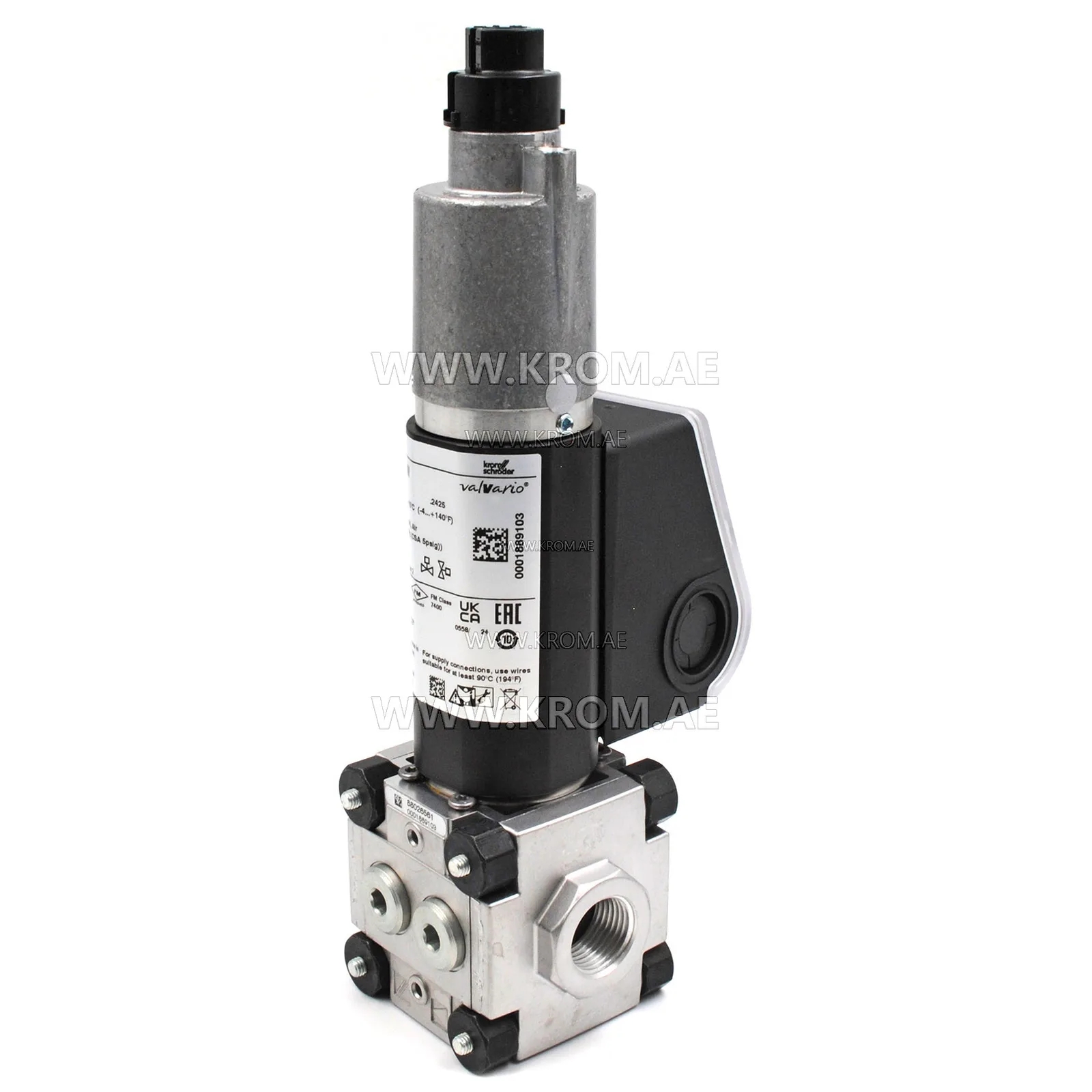

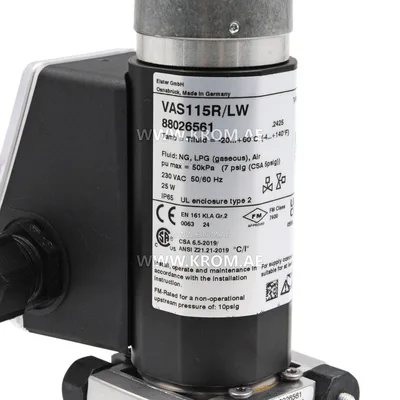

Kromschroeder VAS115R/LW (88026561) gas solenoid valve

Kromschrоder VAS115R/LW 88026561 gas valve equipped with threaded flanges designed for installation on pipelines ranging from DN 10 to DN 65. Flanged connections are provided for sizes 2 and 3, intended for pipelines with diameters of DN 40 and DN 50. Kromschroeder VAS115R/LW 88026561 gas control unit technical data: Size 1 EU certified Inlet: DN 15 (1/2'') Outlet: DN 15 (1/2'') Rp internal thread Slow opening, quick closing With flow adjustment Mains voltage: 230 V AC, 50/60 Hz Electrical connection: M20 cable gland Attached to the right side of the connection box: M20 cable gland Accessories, right: 2 screw plugs Accessories, left: 2 screw plugs
