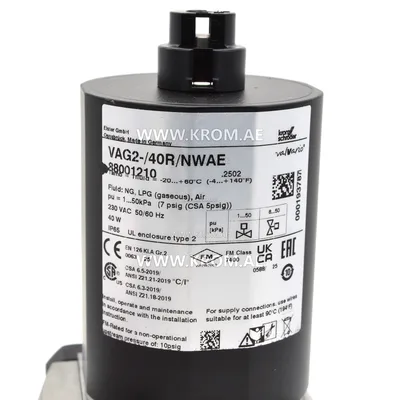

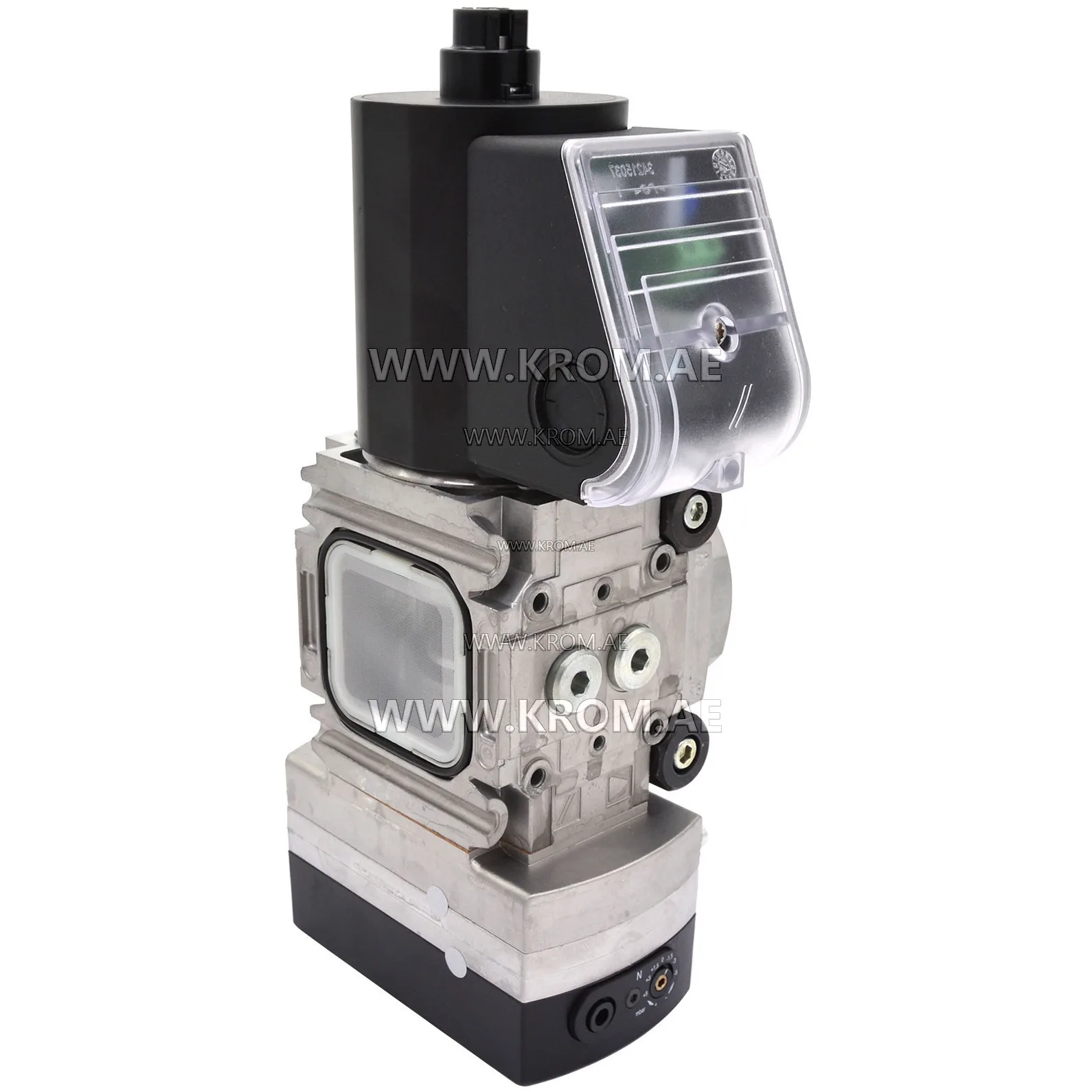

Kromschroeder VAG2-/40R/NWAE (88001210) gas solenoid valve

Gas valve Kromschroder VAG2-40R/NWAE (88001210) Air/gas ratio controller with solenoid valve Kromschroder VAG2-40R/NWAE — precise stoichiometric combustion for powerful modulating systems. Kromschroder VAG2-40R/NWAE is an air/gas ratio controller with integrated solenoid valve class A (EN 88 and EN 161). Designed to maintain a constant gas/air ratio of 1:1 in modulating and step-controlled gas burners of medium and high power. Main advantages: Precise 1:1 ratio — automatically maintains ideal gas/air proportion over the entire power range (control up to 10:1). Ensures optimal combustion, maximum efficiency and minimal NOx and CO emissions. Fast-acting solenoid valve — quick opening (≤ 0.5 sec) and closing (< 1 sec). High safety — class A according to EN 161, maximum inlet pressure 500 mbar. Size DN 40 (1½") — Rp internal thread. Optimal for medium and high capacity systems. Premium quality — original Kromschroder (Honeywell). Full European certification, FM, CSA, UL. Works with natural gas, LPG, biogas and air. Technical features: Air and gas pressure range: 0.5–100 mbar Servo technology for precise control Protection class IP65 Position indicator, pressure test points Voltage: 230 V AC (standard) Operating temperature: -20…+60 °C Application: Modulating industrial gas burners Large boiler houses and heat generating equipment Drying chambers, furnaces, heat treatment lines Systems with variable heat load Modernization and replacement in existing gas installations Kromschroder VAG2-40R/NWAE guarantees stable and economical combustion, significant gas savings, reduction of harmful emissions
