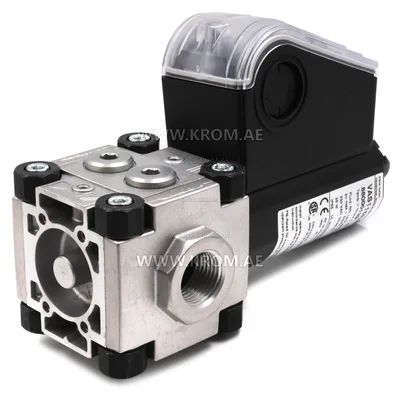

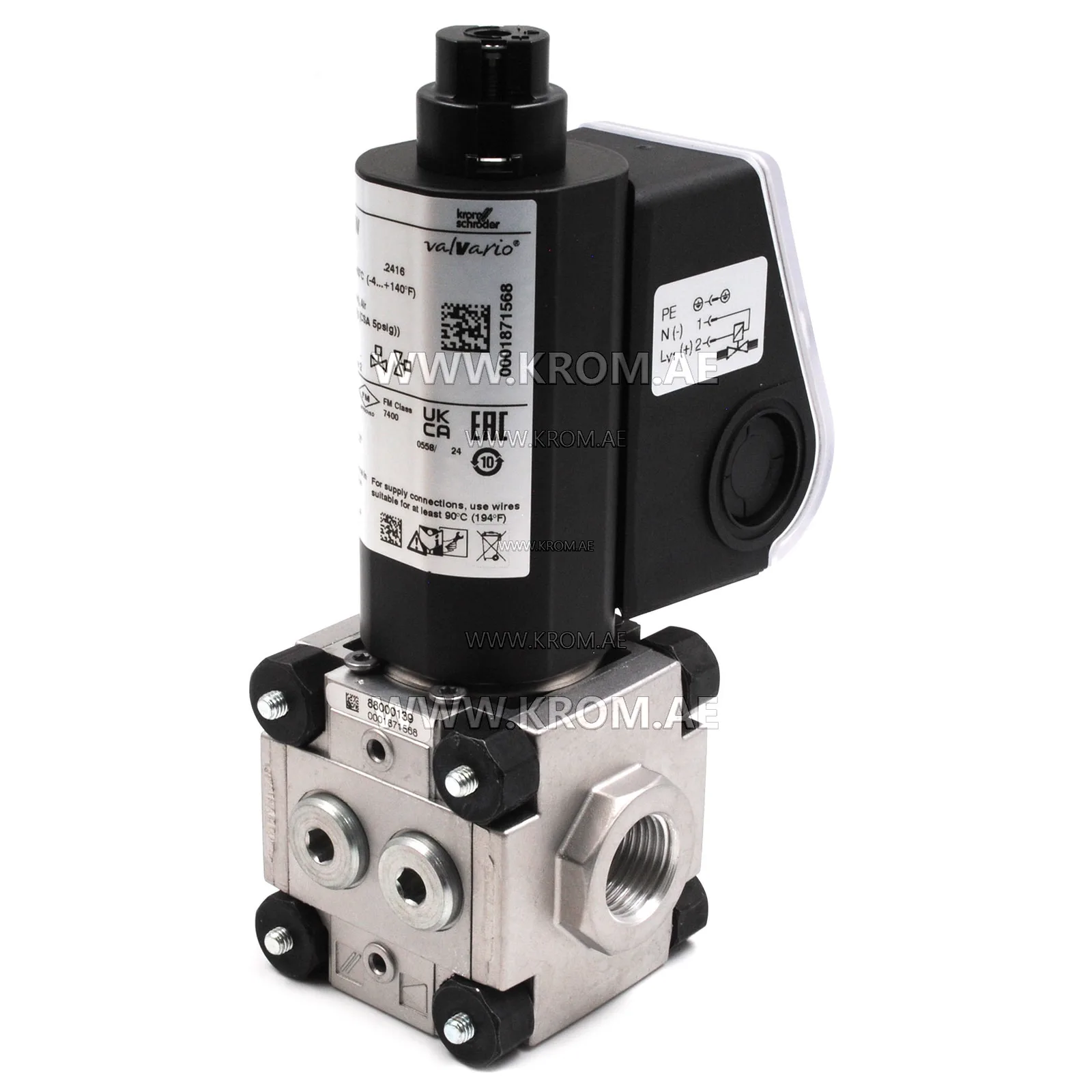

Kromschroeder VAS115R/NW (88000139) gas solenoid valve

Kromschroder VAS115R/NW 88000139 gas valve for safeguarding and controlling the air and gas supply to gas burners and gas appliances. Kromschroder VAS115R/NW 88000139 gas solenoid valve use in gas control and safety systems in all sectors of the iron, steel, glass and ceramics industries, also in commercial heat generation, such as the packaging, paper and foodstuffs industries. Krom schroder VAS115R/NW 88000139 gas control unit technical data: Inlet: DN 15 (1/2'') Outlet: DN 15 (1/2'') Rp internal thread Quick opening, quick closing With flow adjustment Mains voltage: 230 V AC, 50/60 Hz Electrical connection: M20 cable gland Accessories, right: 2 screw plugs Accessories, left: 2 screw plugs Pu max.0.5 bar Weight: 1,551 kg Kromschroder 88000139 VAS115R/NW compact gas unit for systems up to SIL 3 pursuant to EN 61508 and PL e pursuant to ISO 13849. EU certified pursuant to Directive Gas Appliances Directive 2009/142/EU (valid until 20 April 2018) in conjunction with EN 13611 and EN 161.
