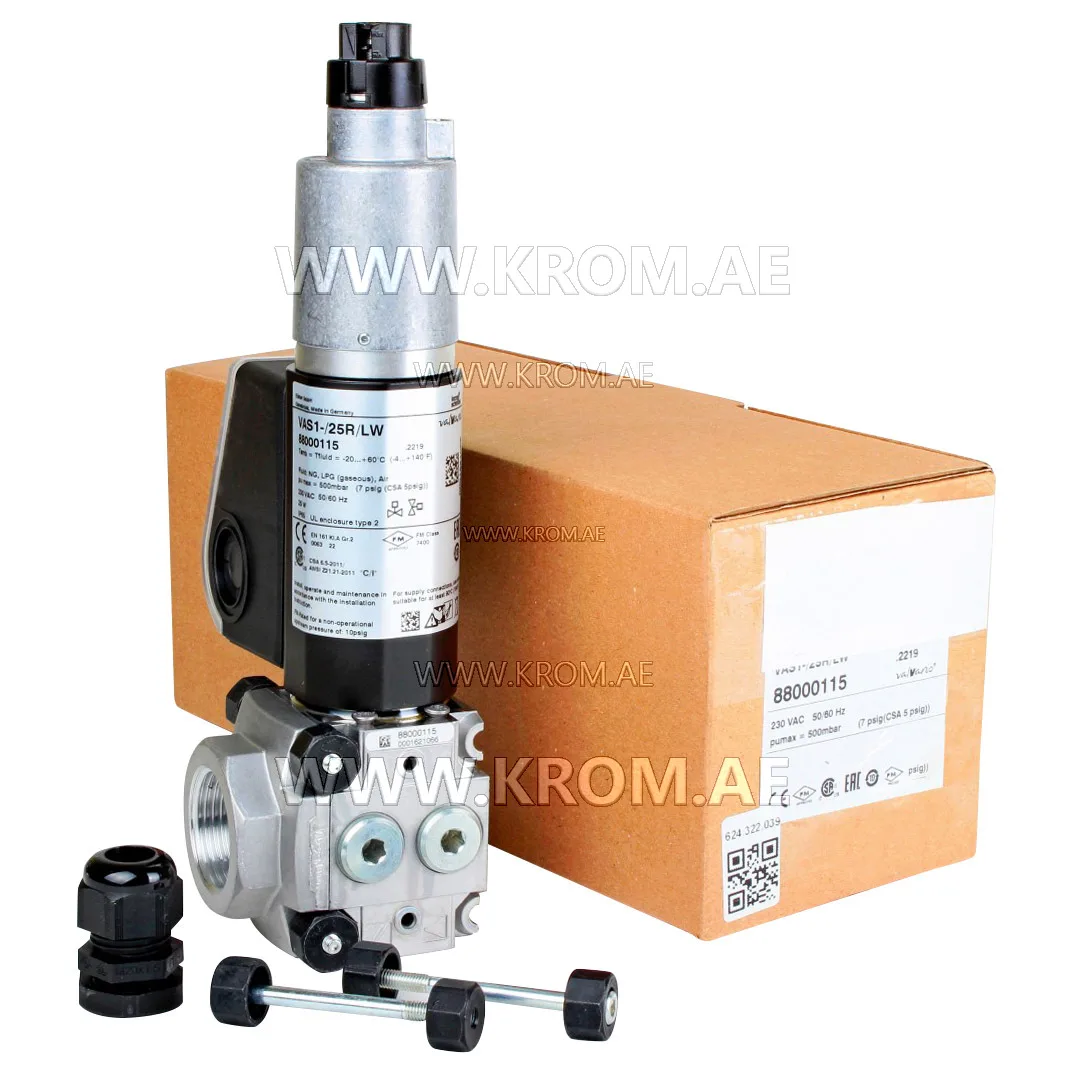

Kromschroeder VAS1-/25R/LW (88000115) gas solenoid valve

Kromschroder VAS1-/25R/LW 88000115 gas valve for safeguarding and controlling the air and gas supply to gas burners and gas appliances. Kromschroder VAS1-/25R/LW 88000115 gas solenoid valve use in gas control and safety systems in all sectors of the iron, steel, glass and ceramics industries, also in commercial heat generation, such as the packaging, paper and foodstuffs industries. Kromschroder 88000115 VAS1-/25R/LW gas valve threaded flange for pipe connections (Rp or NPT) from DN10 to 65, flanged connection (ISO or ANSI) for sizes 2 and 3 for pipe connections DN 40 and 50. Krom schroder VAS1-/25R/LW 88000115 gas control unit technical data: No inlet flange Outlet: DN 25 (1'') Rp internal thread Slow opening, quick closing With flow adjustment Mains voltage: 230 V AC, 50/60 Hz Electrical connection: M20 cable gland Accessories, right: 2 screw plugs Accessories, left: 2 screw plugs Pu max.0.5 bar Weight: 1,714 kg Kromschroeder 88000115 VAS1-/25R/LW gas control block function: Connect the system to the electrical power supply (alternating voltage will be rectified). The blue LED lights up. The coil’s magnetic field pulls the armature with the attached valve discs upwards. Krom schroder 88000115 VAS1-/25R/LW gas solenoid valve opens. The double valve seat means that the forces from the inlet pressure divided almost equally between the two valve seats. Disconnect Kromschroder 88000115 VAS1-/25R/LW from the electrical power supply. The blue LED goes out. The armature pressed into its initial position by the closing spring. The gas solenoid valve closes within 1 s.
