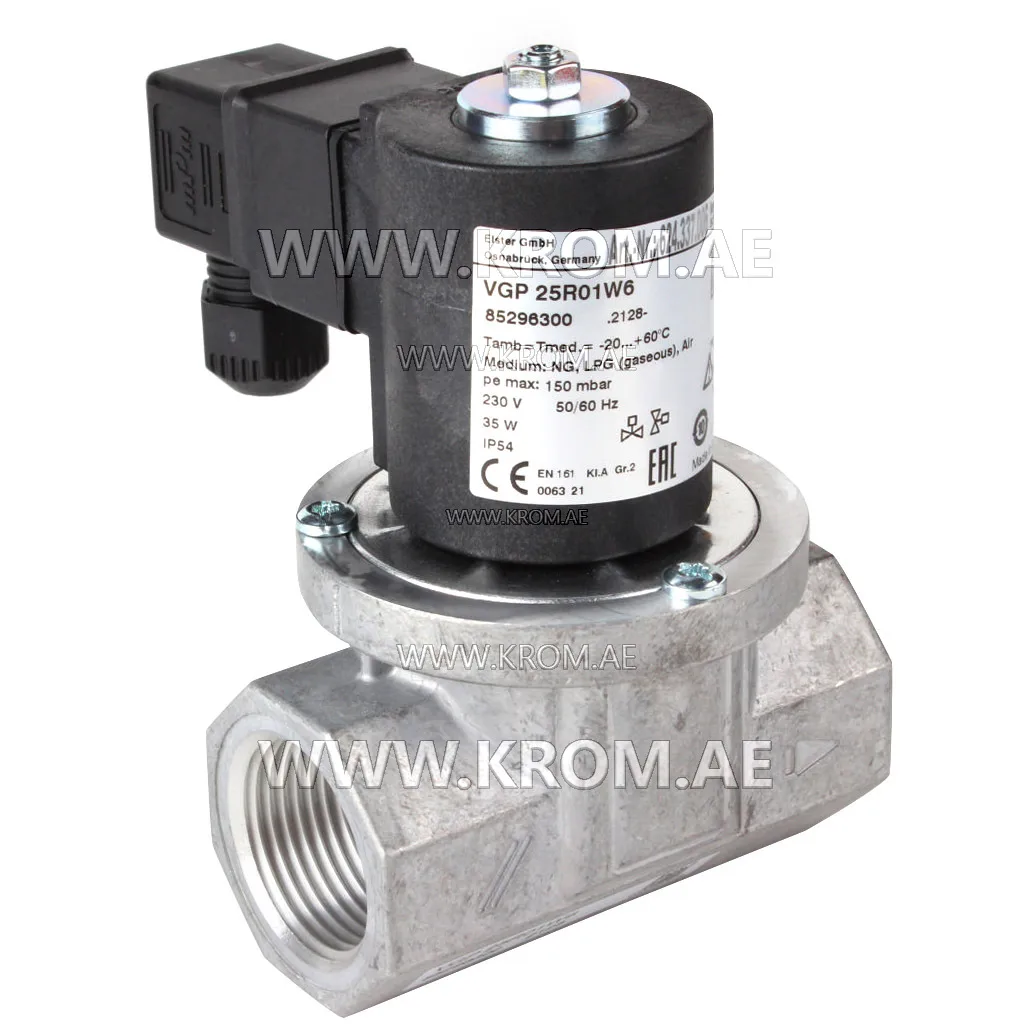

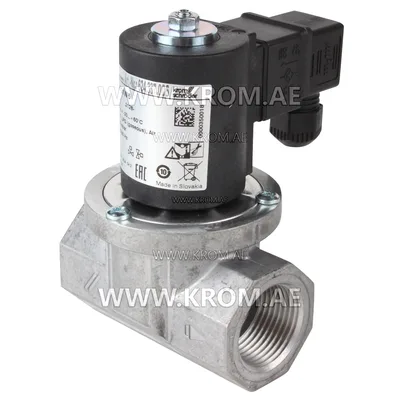

Kromschroeder VGP25R01W6 (85296300) gas solenoid valve

Kromschroder VGP 25R01W6 gas solenoid valve, art. 85296300, is a fast-acting shut-off valve designed for safe operation of gas-consuming installations. The maximum pressure of the gaseous medium it can withstand is 150 mbar. Features of this valve are as follows: It is of the "normally closed" type. Equipped with an automatic safety shut-off device. Classified as class "A" according to EN 161. Has protection of electrical contacts and components against dust and moisture according to IP 54. Guarantees stable operation in a wide ambient temperature range from -20 to +60°C. Equipped with a cast aluminum body. Has fast response, opening time 0.5 seconds, closing time less than 1 second. Built-in valve disc made of perbunan. Connection parameters with Rp 1" thread. Operating voltage 230 V. Electrical connection via plug. During installation, the solenoid gas valve is mounted vertically upward, horizontally, or at a certain angle. However, turning the coil upside down should be avoided. Distance from wall or floor must be at least 20 mm. Note that this valve is not intended for outdoor use. Kromschroder VGP 25R01W6 is designed for automatic flow control in systems using natural gas, LPG (in gaseous form), air, and biogas with H₂S content up to 0.1%.
