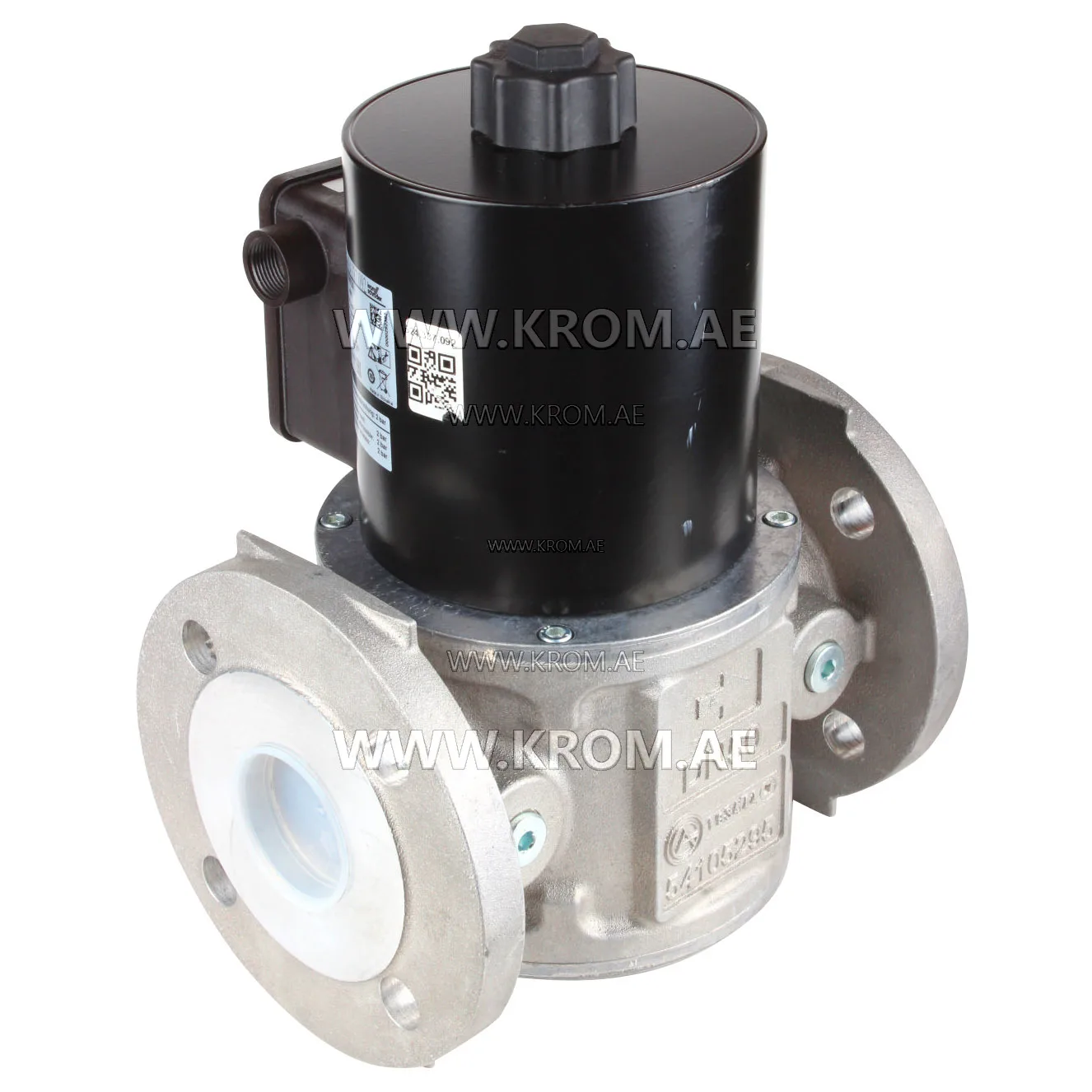

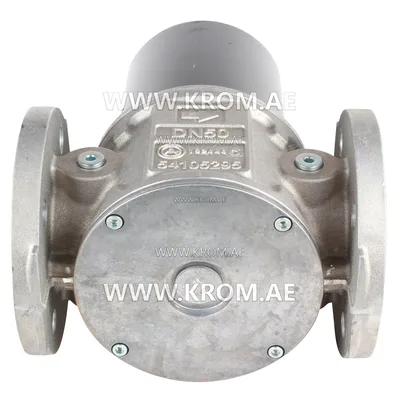

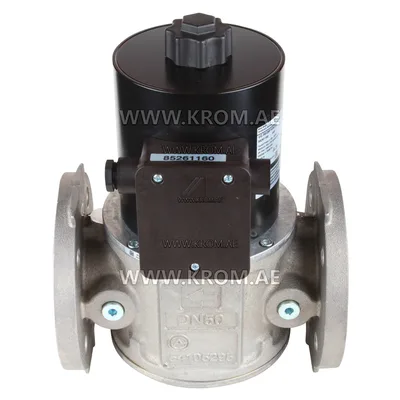

Kromschroeder VG50/39F10NT33 (85261160) gas solenoid valve

Kromschroder VG50/39F10NT33 is a gas solenoid valve designed for gas supply control systems. It is used as a fast-acting automatic emergency shut-off device for air and gas, ensuring safe operation of boilers and heat generators. It belongs to tightness class A according to EN 161. It is known for its fast response time (opening <0.5 sec, closing <1 sec), high reliability for long-term use, easy installation and stable operation over a wide ambient temperature range. It is suitable for harsh operating conditions. It can be used for natural and liquefied gas, as well as air. Key features of Kromschroder VG50/39F10NT33 include: Normally closed valve function, closing flow on power loss Operating voltage: 220 V, +10/-15% of nominal Operating temperature range: -20°C to +60°C Motor protection rating IP 54 Corrosion-resistant aluminum alloy housing Perbunan valve disc Can be installed vertically or horizontally in gas pipes up to ±90° using a magnet Connection parameters: flanges DN 50 per ISO 7005 Electrical connection: cable entry PG13.5 Maximum overpressure: 1000 mbar. Kromschroder VG50/39F10NT33 is certified in the European Union and Russia.
