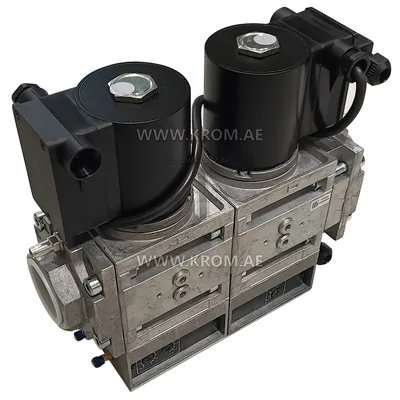

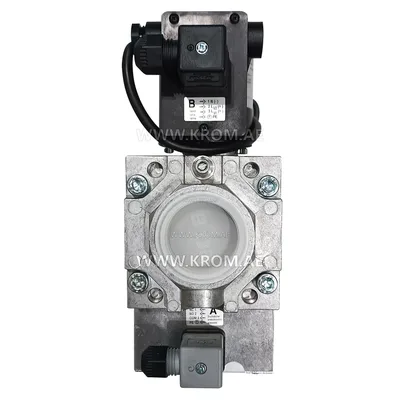

Kromschroder 84742250 CG340R01-VT2WF1 gas valve

Kromschroder CG340R01-VT2WF1 84742250 gas valve is an advanced solution for safe and efficient gas flow management in industrial systems. With high precision and robust construction, this valve is ideal for demanding applications. Krom Schroder CG340R01-VT2WF1 84742250 gas control block operation: Its compact design simplifies installation, while tight seals prevent gas leaks. The valve regulates gas pressure with high accuracy, ensuring stable performance. Kromschroeder CG340R01-VT2WF1 84742250 technical data: Series: Kromschroder CG Manufacturer: Kromschroder Article Number: 84742250 Dimensions: 18×18×35.3 cm Weight: 8.5 kg Ambient Temperature: -10…+60 °C Protection Class: IP54 Max Pressure: 360 mbar Voltage: 220 V Application: Gas & combination burners Connection: Internal Rp 1" thread (inlet/outlet) Solenoid Valves: V1 & V2, Class A Connector: DIN plug Power Consumption: 72/84 W Opening Time: Up to 10 s Closing Time: 1 s Inlet Pressure: 9–100 mbar Max Gas Flow: 37 m³/h Torque: 20 Nm Rotation Time: 60 s Regulator Type: Proportional pressure control Pressure Relay: Built-in Mesh Filter: Included Network Connection: With socket Number of Valves: 2
