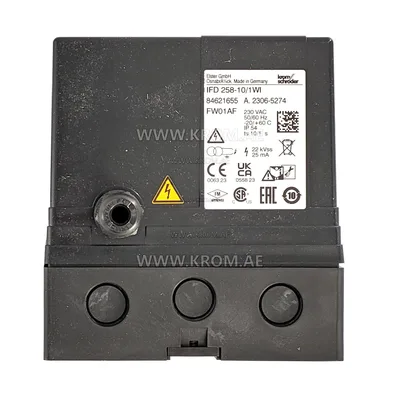

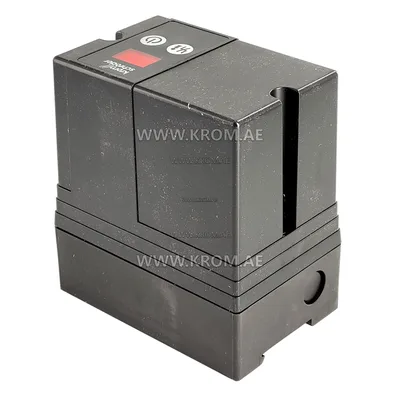

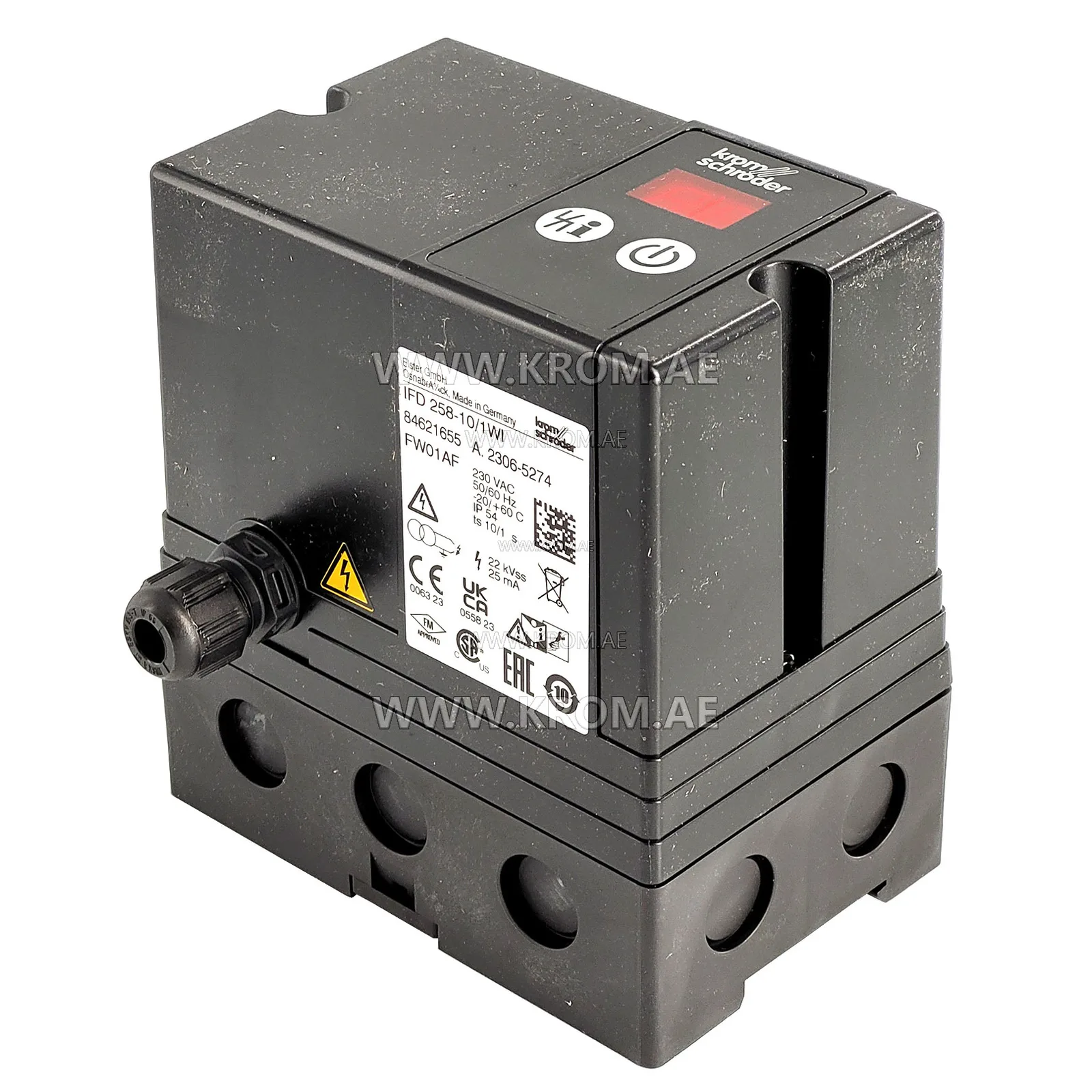

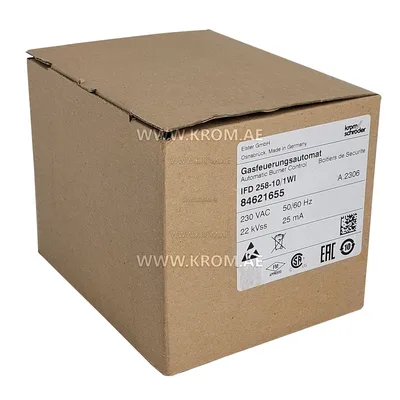

Kromschroeder IFD258-10/1WI (84621655) burner control unit

Krom schroder IFD 258-10/1WI 84621655 automatic burner control unit ignites and monitors directly ignited industrial gas burners of unlimited capacity. Kromschroder 84621655 IFD 258-10/1WI gas control unit technical data: Power consumption: approx. 9 VA Ionization or UV control Immediate fault lock-out or restart in the event of flame failure, switchable Safety time on start-up: 10 s Safety time during operation: 1 s Mains voltage: 230 V AC, 50/60 Hz Integrated electronic ignition Max. number of operating cycles: 250,000 Max. number of operating cycles: reset button: 1000, mains button: 1000 Sensor voltage: approx. 230 V AC Sensor current: > 2 µA Switch-off threshold can be adjusted between 2 and 20 µA Max. sensor current for ionization control < 25 µA Ambient temperature: -20 to +60°C (-4 to +140°F) Relative humidity: no condensation permitted Enclosure: IP 54 pursuant to IEC 529 Overvoltage category III pursuant to EN 60730 Cable gland: M16 Installation position: any Weight: 841 g For directly ignited burners of unlimited capacity in continuous operation pursuant to EN 746-2 Immediate fault lock-out or restart following flame failure available as a switchable function Flame control with UV sensor or ionization sensor Display for program status and flame signal intensity
