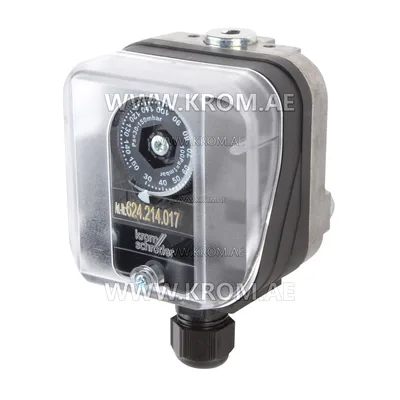

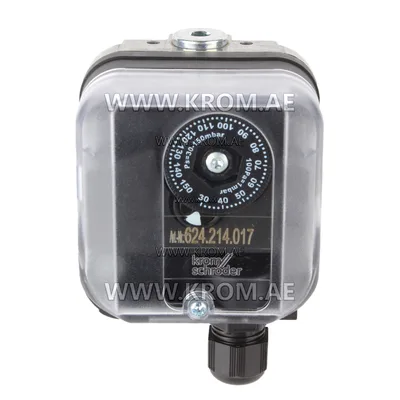

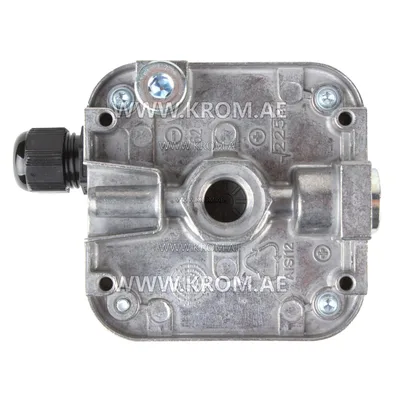

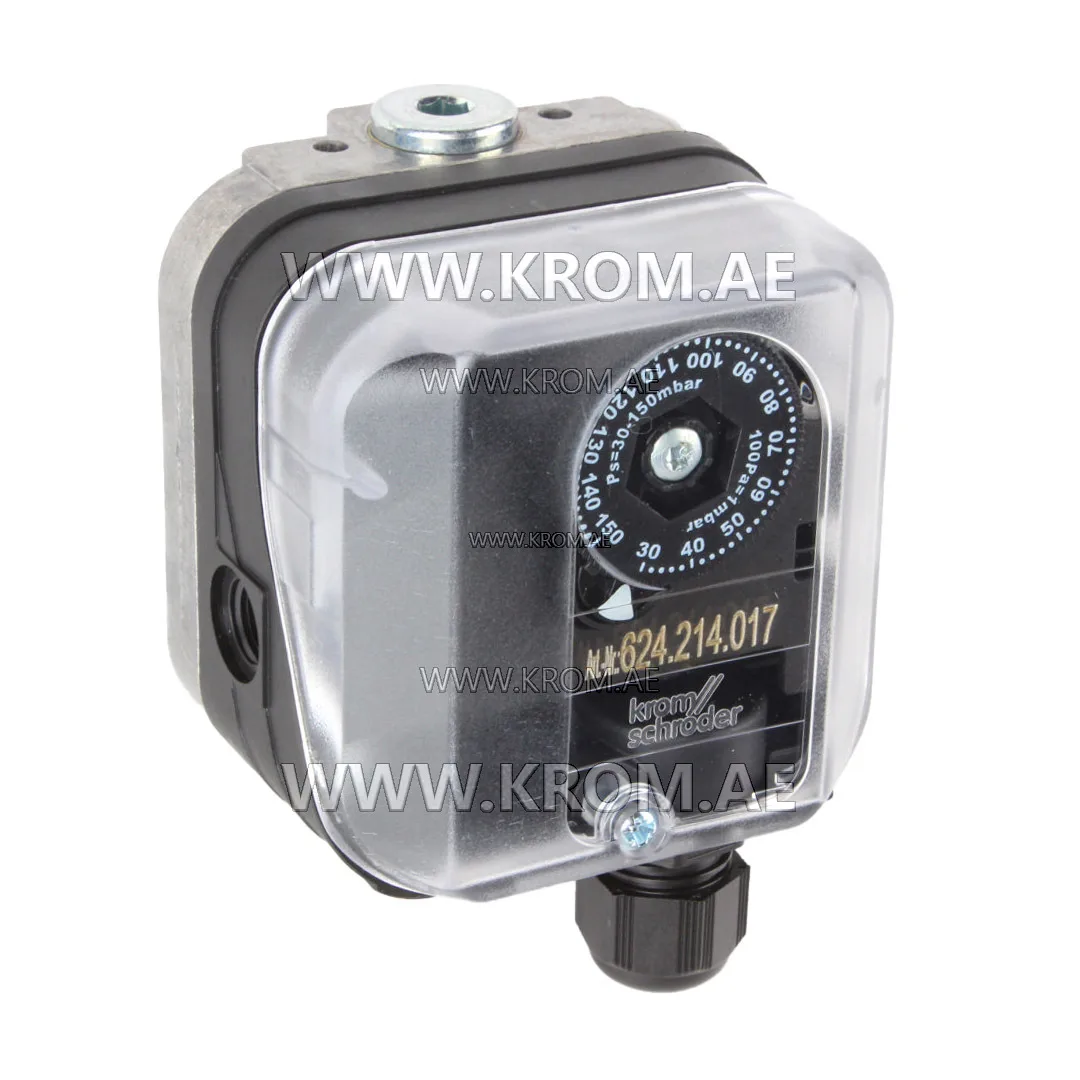

Kromschroeder DG150UG-3 (84447520) gas pressure switch

Krom schroder DG150UG-3 84447520 gas pressure switch designed for careful monitoring of pressure fluctuations in the gas environment or airspace. The pressure switch Kromshroeder DG150UG-3 84447520 works effectively regardless of the direction of pressure changes, whether it is increasing or decreasing. Krom schroder DG150UG-3 84447520 pressure switch technical data Adjusting range: 30-150 mbar Gas type: natural gas, town gas, LPG (gaseous), flue gas, biogas (max. 0.1 %-by-vol. H2S) and air Switches with rising positive pressure (gas/air), negative pressure (air), differential pressure (air-air) With gold-plated contacts Electrical connection via screw terminals and M16 cable gland, IP 65 Maximum medium and ambient temperatures: -20 to +80°C Long-term use in the upper ambient temperature range accelerates the ageing of the elastomer materials and reduces the service life Storage temperature: -20 to +40°C Diaphragm pressure switch, silicone-free Diaphragm: NBR. Housing: glass fibre reinforced PBT plastic with low gas release Lower housing section: AlSi 12 Enclosure: IP 54 or IP 65 Safety class: 1 Line diameter: 0.5 to 1.8 mm (AWG 24 to AWG 13) Line entrance: M16 x 1.5, clamping range: diameters of 4 to 10 mm Electrical connection type: screw terminals Weight: 0,321 kg Kromschroeder DG150UG-3 84447520 differential pressure switch designed lifetime The provided information regarding the expected lifespan pertains to the utilization of Kromschroder 84447520 DG150UG-3 differential pressure switch for monitoring both increasing and decreasing gas or air pressure, as outlined in these operational guidelines. Upon reaching the end of the designed lifespan, it becomes necessary to replace safety-critical products. The designed lifespan, determined from the date of manufacture, complies with EN 13611 and EN 1854 standards.
