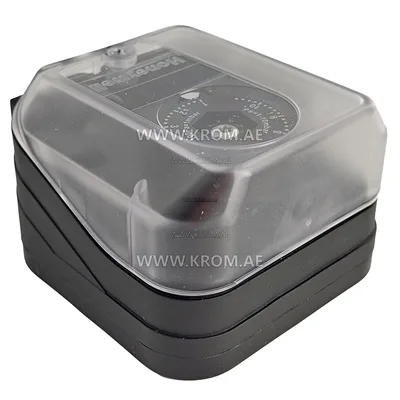

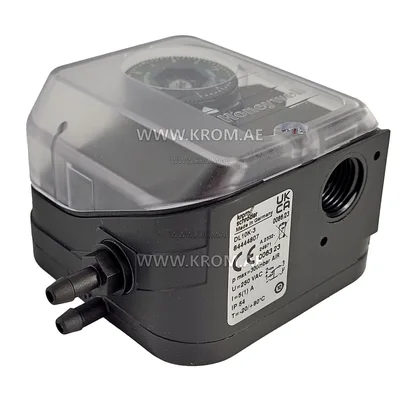

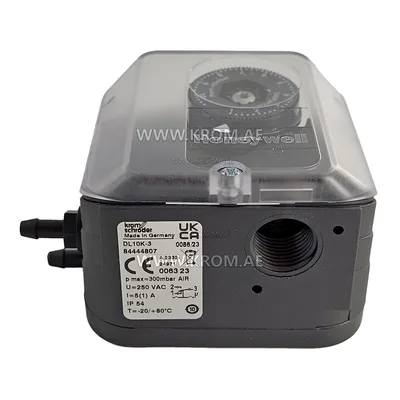

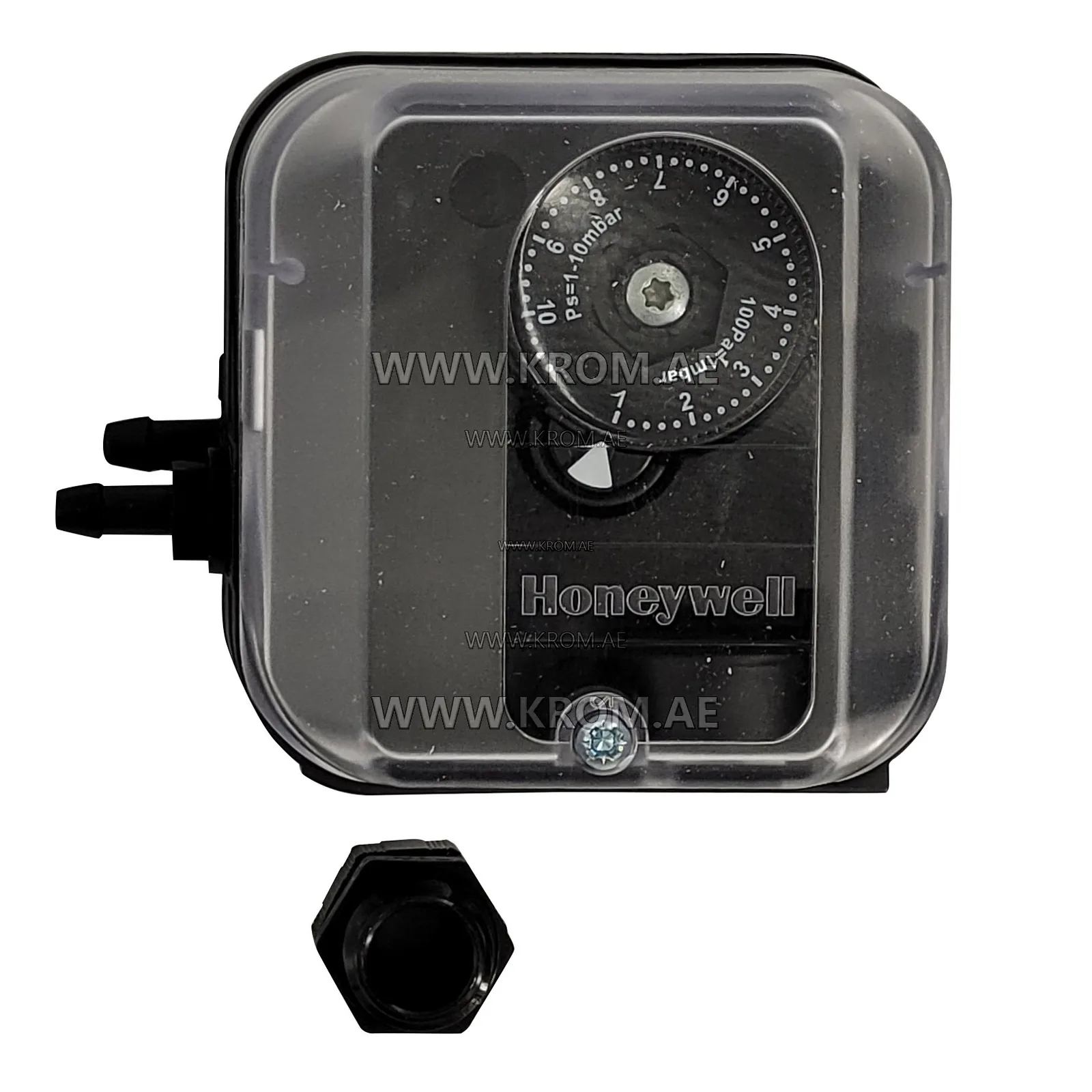

Kromschroeder DL10K-3 (84444807) air pressure switch

Kromschroeder 84444807 DL10K-3 air pressure switch engineered to regulate positive, negative, or differential air and flue gas pressures. Krom schroder DL10K-3 84444807 air pressure switch technical data Adjusting range: 1.0-10 mbar, can be used as ''special-design pressure switch'' Gas type: air or flue gas, no flammable gases, no aggressive gases Housing with tube connection and hand wheel Electrical connection via screw terminals Micro switch to EN 61058-1 Safety class II to VDE 0106-1 Maximum medium and ambient temperatures: -20 to +80°C (-4 to +176°F) Diaphragm pressure switch, tempered LSR diaphragm system Housing: glass fibre reinforced PBT plastic with low gas release Weight: 0,4 kg Cover screw: 65 Ncm Strain relief facility: 65 Ncm Kromschroder DL10K-3 84444807 differential pressure switch certification 1. Kromschroder DL10K-3 84444807 air pressure switch, identified by product ID No. CE-0085AP0466, is compliant with several Directives and Standards, including: -          Directive 2009/142/EC – Gas Appliances Directive (GAD), valid until 20 April 2018. -          Directive 2014/35/EU – Low Voltage Directive (LVD). -          Regulation (EU) 2016/426 – Gas Appliances Regulation (GAR), effective from 21 April 2018. 2. This pressure switch conforms to the requirements set forth in Standards EN 13611:2015+AC:2016 and EN 1854:2010. 3. The specific Kromschroder DL10K-3 84444807 differential pressure switch corresponds to the tested type sample and is subject to ongoing production surveillance procedures outlined in: -          Directive 2009/142/EC Annex II paragraph. -          Regulation (EU) 2016/426 Annex III paragraph 3.
