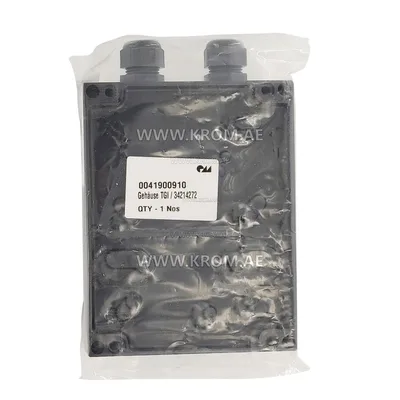

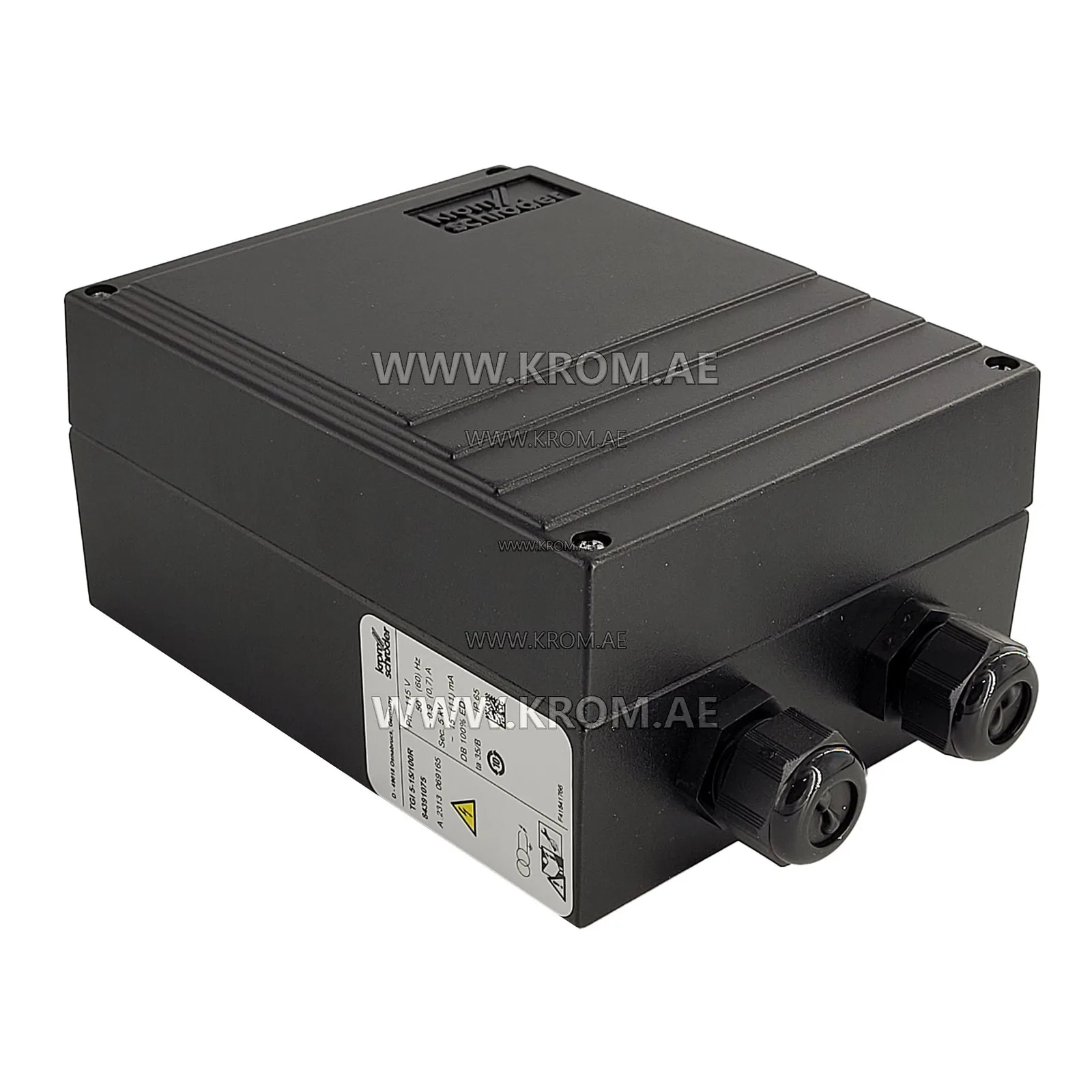

Kromschroeder TGI5-15/100R (84391075) ignition transformer

Kromschroder TGI 5-15/100R 84391075 generate a stable high-voltage spark, ensuring the efficient operation of heating systems. One of the key features of Kromschroeder TGI 5-15/100R 84391075 its compatibility with single-electrode control systems. In such configurations, both ignition and ionization currents are transmitted through a shared electrode, simplifying installation and maintenance. Kromschroder TGI 5-15/100R 84391075 transformer technical data: 5 kV high voltage Output current: 15 mA at 50 Hz 100% duty cycle, mains voltage 115 V AC Kromschroeder TGI 5-15/100R 84391075 ignition transformer certification: Krom schroder TGI 5-15/100R 84391075 ignition unit built for applications pursuant to the Machinery Directive 2006/42/EC, Complies with Canadian Standards Association and CSA C22.2 No. 13-1962.
