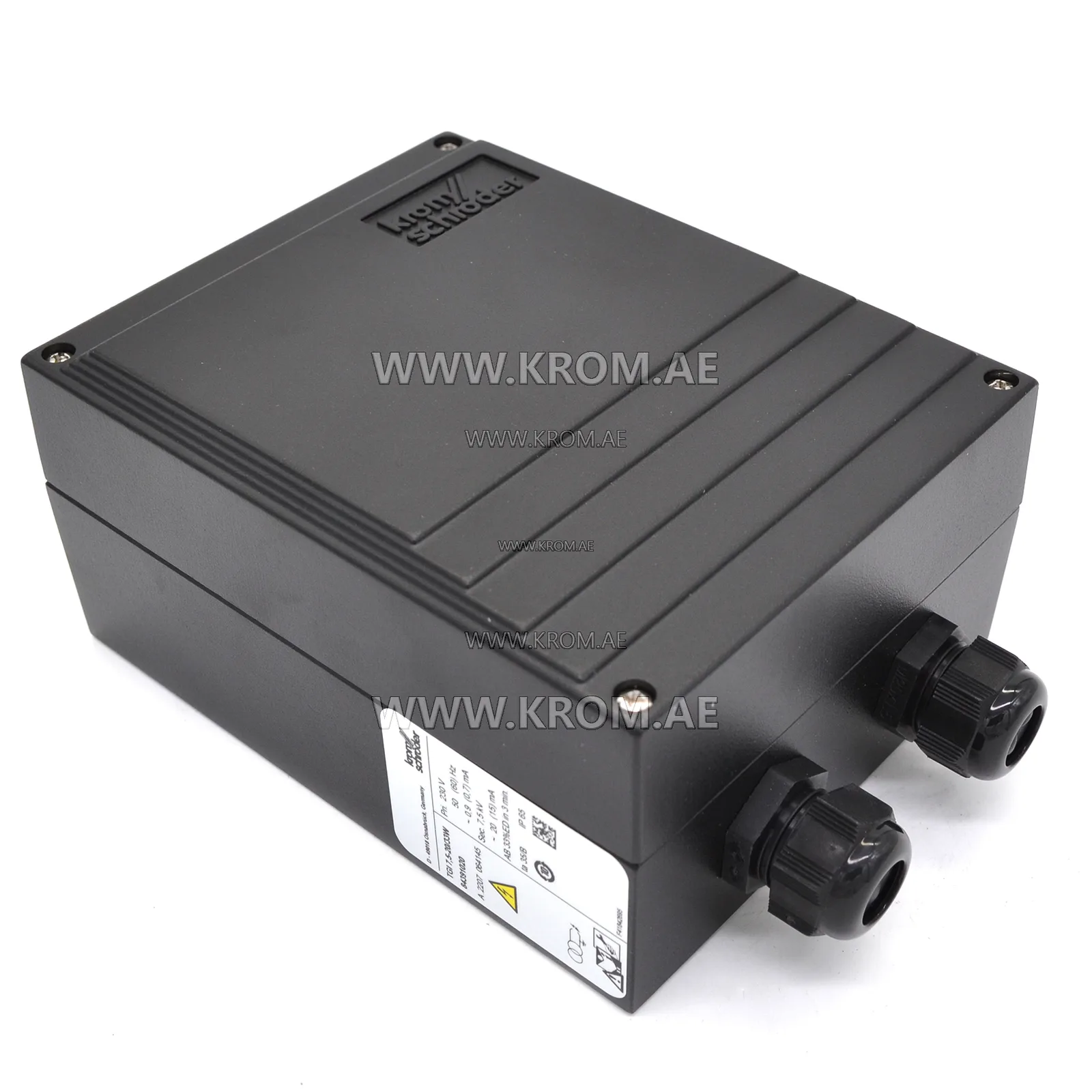

Kromschroeder TGI7.5-20/33W (84391020) ignition transformer

Kromschroder TGI 7,5-20/33W 84391020 ignition transformers designed to generate a high-voltage spark required for igniting gas and oil-fired burners. Their design allows installation in control rooms and directly near the burner, such as on furnaces. Kromschroder TGI 7,5-20/33W 84391020 transformer technical data: 7.5 kV high voltage Output current: 20 mA at 50 Hz 33% duty cycle, mains voltage 230 V AC Kromschroeder TGI 7,5-20/33W 84391020 ignition transformer certification: Krom schroder TGI 7,5-20/33W 84391020 ignition unit built for applications pursuant to the Machinery Directive 2006/42/EC, Complies with Canadian Standards Association and CSA C22.2 No. 13-1962.
