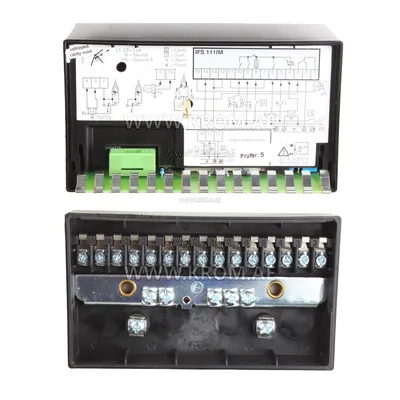

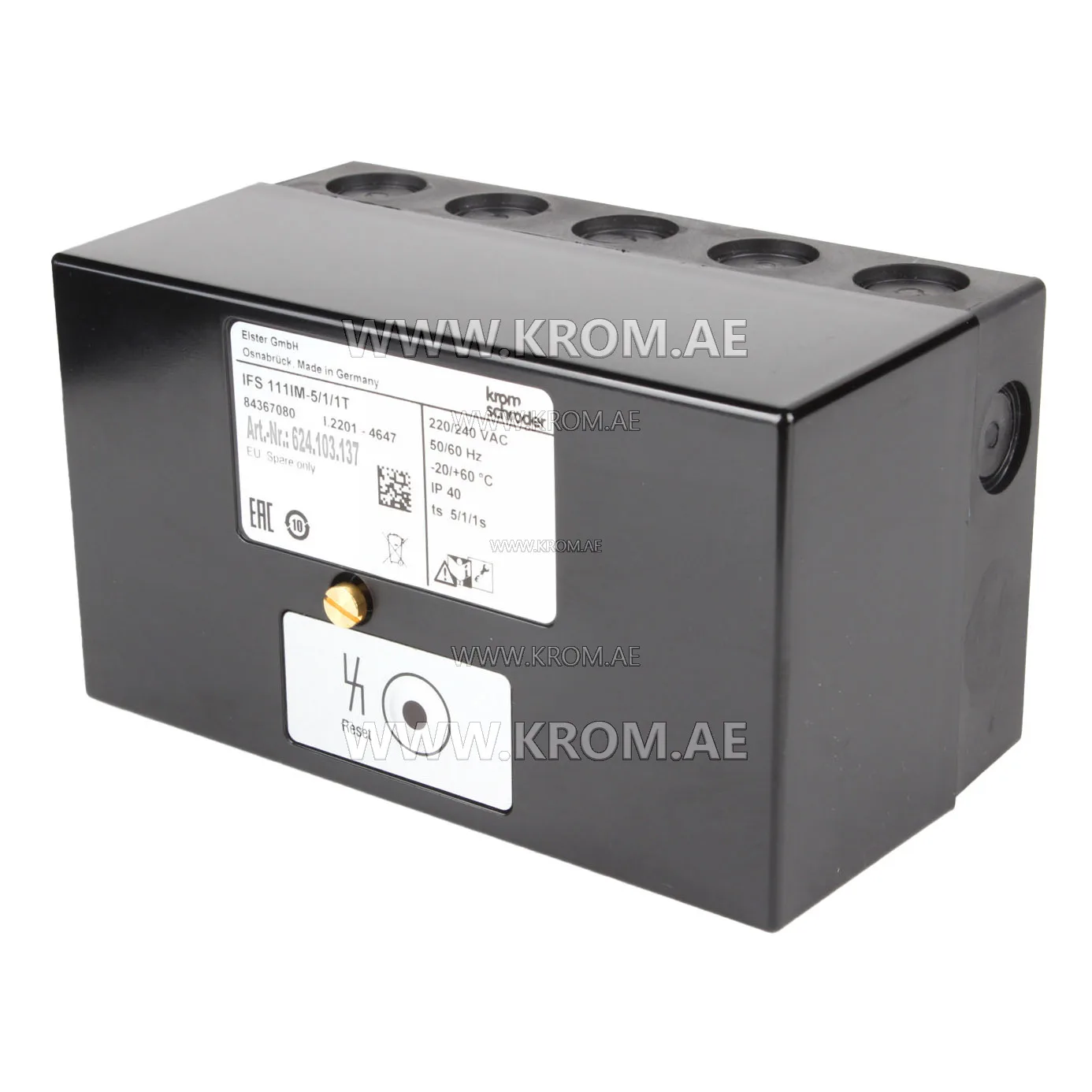

Kromschroeder IFS111IM-5/1/1T (84367080) burner control unit

Kromschroder IFS 111IM-5/1/1T 84367080 automatic gas firing devices are designed for efficient ignition and control of gas burners. Kromschroder IFS 111IM-5/1/1T 84367080 burner control units ensure high reliability and safety during the operation of the burners, offering advanced functions and technologies for optimal flame control and ensuring uninterrupted operation of the system. Kromschroder 84367080 IFS 111IM-5/1/1T gas burner control box technical data Operating voltages: 220/240 V, 50/60 Hz Safety time: 2, 3, 5 or 10 s Ignition time: approx. 1, 2, 3 or 7 s State voltage and safety time on order Remote reset: yes Power consumption: 5 VA Contact load: max. 1 A per output Total load: max. 2 A Ionisation electrode: 220 V Ionisation current: > 1 µA Reaction time: < 1s Fault indicator: lamp in the reset button and connection for external fault indicator Ambient temperature: -20 °C to +60 °C Protective grade: IP 40 acc. to DIN 40 050 Cable gland: for Pg 9 Flame control by means of ionization electrode or UV-cell Flame simulation check before starting and after switching the burner off Suitable for ignition and ionization control with one electrode Modern technique using semi-conductors High cycling frequency Remote reset External fault indication EC tested and certified design Fitting positon: arbitrary Weight: 750 g
