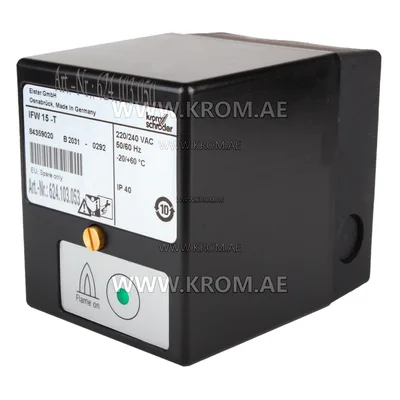

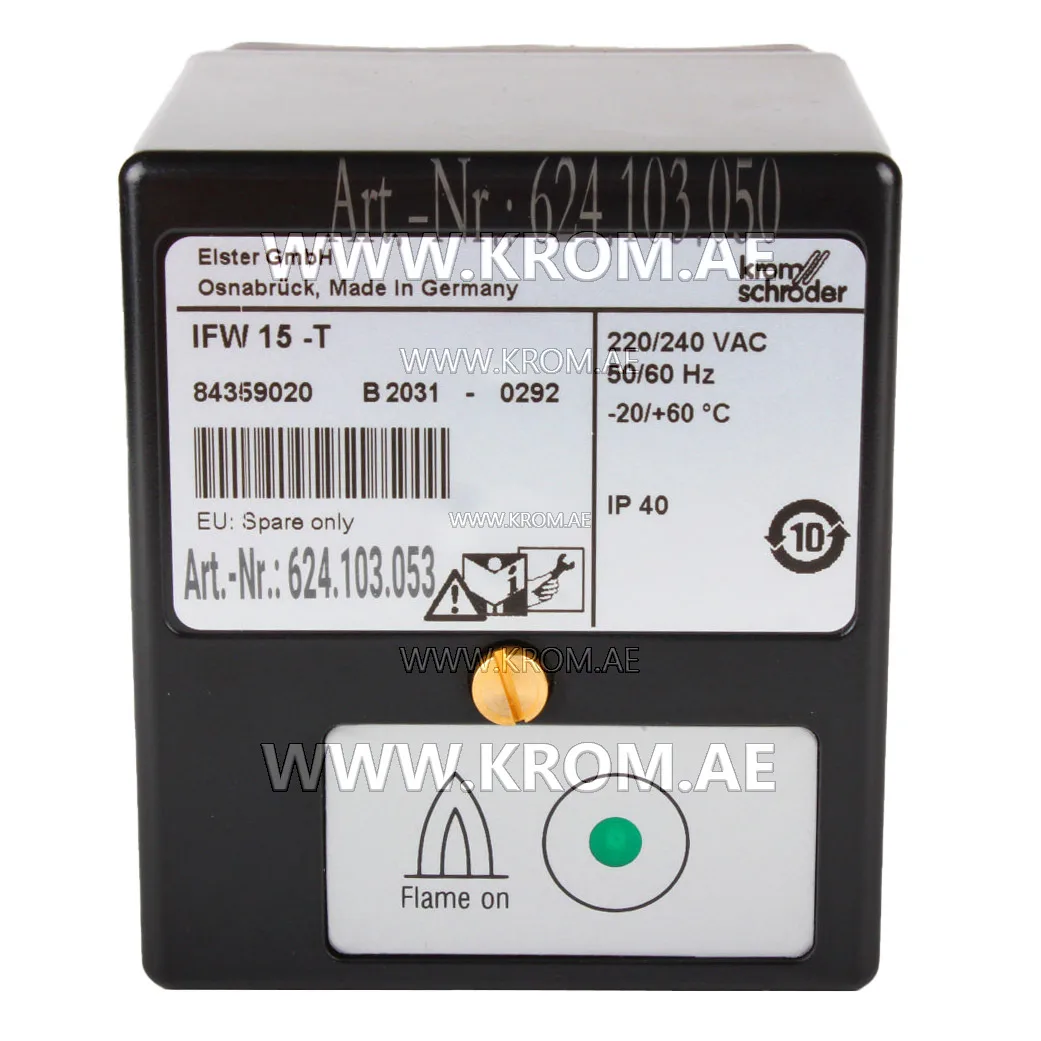

Kromschroeder IFW15-T (84359020) flame detector

Kromschroder IFS 137B-3/1/2T 84344900 burner control units are suitable for the ignition and control of gas burners in gas firing installations of all types. Krom schroder 84344900 IFS 137B-3/1/2T automatic gas firing device technical data Mains voltage: 220/240 V, 50/60 Hz Power consumption: Approx. 18 VA Output for ignition transformer via relay contact Output voltage for valves and ignition transformer = mains voltage Contact rating: Max. 1 A per output Total load: Max. 2 A Average number of operating cycles depending on power factor cos ϕ: Approx. 1,000,000 Reset button: Max. number of operating cycles: 1000 Signal input: Remote reset Flame control: Sensor voltage: 220 V AC Sensor current: > 1 µA Reaction time: < 1 s Valve connections: 2 Fuse in unit: F1: 2 A, semi time-lag E, pursuant to DIN 41571 V/EN 60127-1 Ambient temperature: -20 °C to +60 °C Climate: no condensation permitted Enclosure: IP 40 pursuant to IEC 529 Cable gland: PG 9 Installation position: Arbitrary Weight: 390 g
