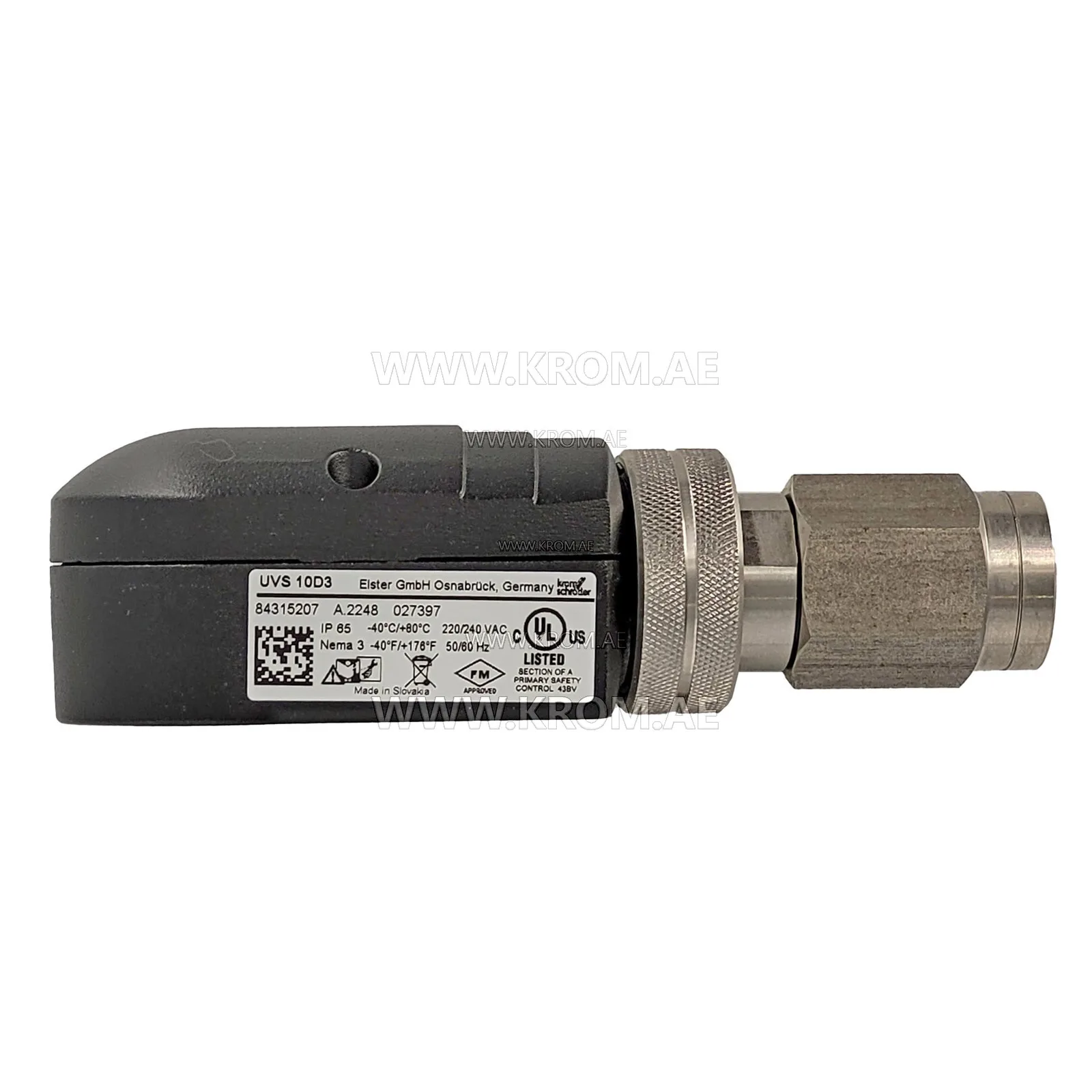

Kromschroeder UVS10D3 (84315207) UV flame sensor

Kromschroeder UVS10D3 84315207 UV-sensitive detector for flame control of gas burners, only in conjunction with Elster Kromschroder automatic burner control units IFS, IFD, PFS and PFD, flame detectors IFW or PFF or burner control units BCU or PFU. Kromschroder 84315207 UVS10D3 UV cell technical data Series 10 Quartz glass heat guard 1/2 NPT internal thread and cooling air connection Aluminum housing with integrated heat guard, with connection terminals Clamping range of the connection terminals: ≤ 2.5 mm² Cable gland: for cable diameters of 7 to 13 mm Distance between UV sensor and flame: 300–400 mm UV tube: P578, spectral range: 190–270 nm, max. sensitivity: 210 nm ± 10 nm Service life of the UV tube: approx. 10,000 operating hours Min. DC signal: 1 μA Enclosure: IP 65 Ambient temperature: -40 to +80°C (-40 to +176°F) Weight: 360 g
