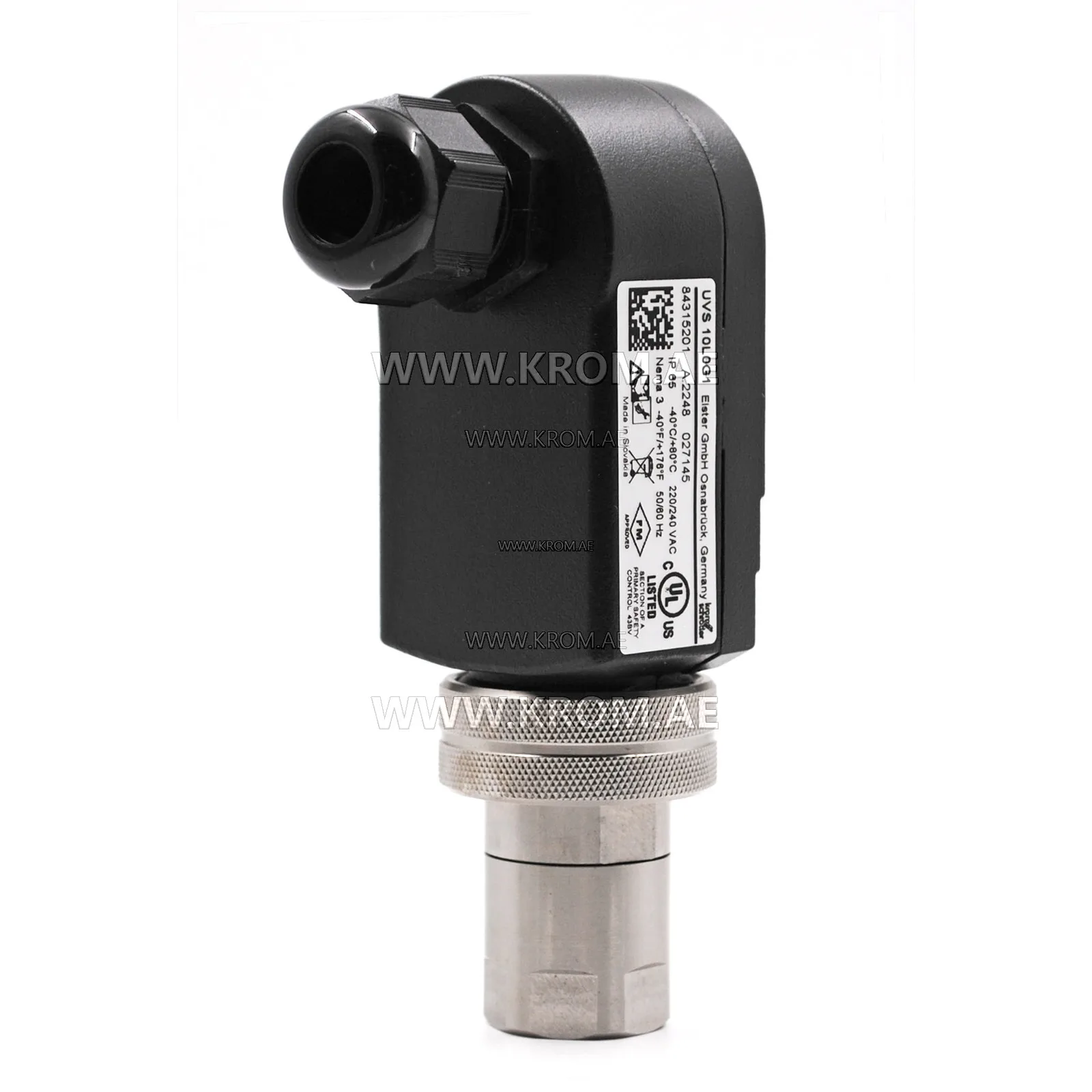

Kromschroeder UVS10L0G1 (84315201) UV flame sensor

Kromschroeder UVS10L0G1 84315201 UV cell is designed for monitoring flames in gas burners and is intended for use exclusively with Elster Kromschroder automatic burner control units IFS, IFD, PFS, and PFD, as well as flame detectors IFW or PFF, or burner control units BCU or PFU. Kromschroder UVS10L0G1 84315201 UV-sensitive detector technical data Quartz glass heat guard lens Rp 1/2 internal thread M20 cable gland Aluminum housing with integrated heat guard, with connection terminals Clamping range of the connection terminals: ≤ 2.5 mm² Cable gland: for cable diameters of 7 to 13 mm Distance between UV sensor and flame: 300–400 mm UV tube: P578, spectral range: 190–270 nm, max. sensitivity: 210 nm ± 10 nm Service life of the UV tube: approx. 10,000 operating hours Min. DC signal: 1 μA Enclosure: IP 65 Ambient temperature: -40 to +80°C (-40 to +176°F) Weight: 360 g
