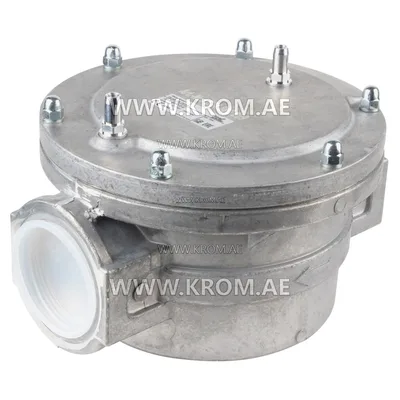

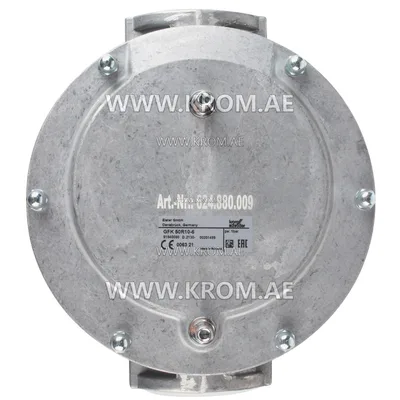

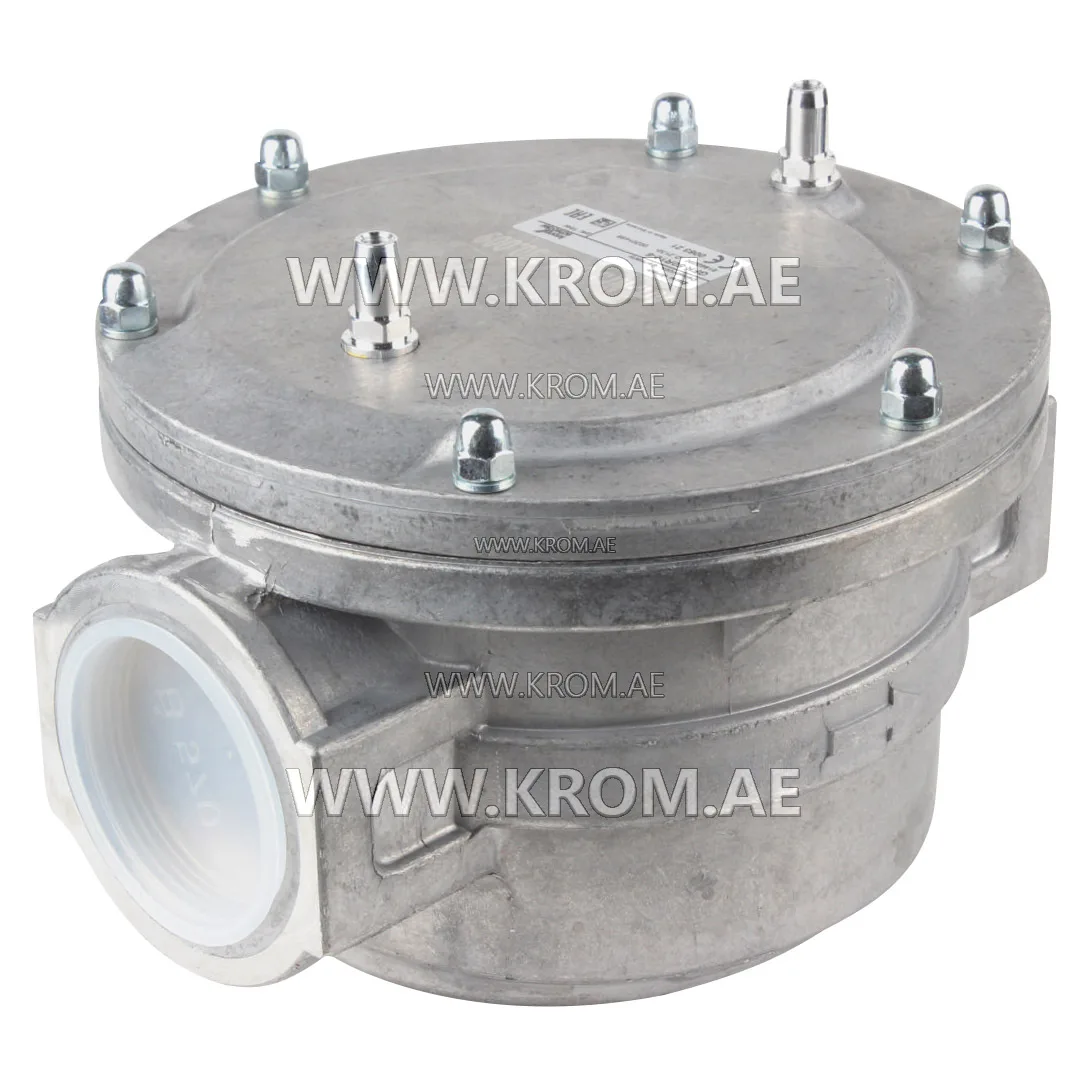

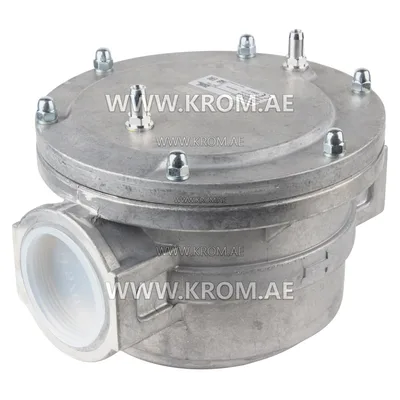

Kromschroeder GFK50R10-6 (81940090) gas filter

Kromschroeder GFK50R10-6 (81940090) gas filter, catalogue article 624.880.009. This is a gas filter from the Kromschroeder range. A gas filter is installed in the gas supply line upstream of the gas valve. Its function is to remove solid particles (pipe scale, debris, welding spatter) from the gas stream before they reach the valve seat, solenoid, servo regulator, or burner nozzle. A clean gas supply is essential for reliable shut-off and accurate metering; dirt in the gas can cause leakage, erratic outlet pressure, or complete blockage of small passages in the valve or burner. Filters of this type are typically selected by connection size and filtration fineness. The housing is usually a cast body with a replaceable filter element (paper, stainless steel mesh, or felt). Some models have a built-in pressure tapping point for checking differential pressure across the element, which indicates when the filter needs cleaning or replacement. When replacing a filter, confirm the connection thread size (usually Rp or flanged) and the maximum operating pressure rating. Also verify that the filter housing is oriented correctly so that the element can be serviced without dismantling the pipework. In a burner system, the gas filter is one of the components checked during annual maintenance; a clogged filter can cause low gas pressure at the valve and lead to flame instability or burner lockout.
