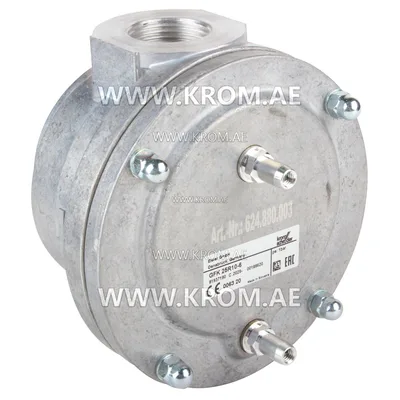

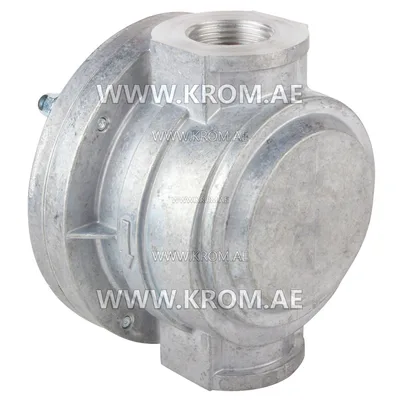

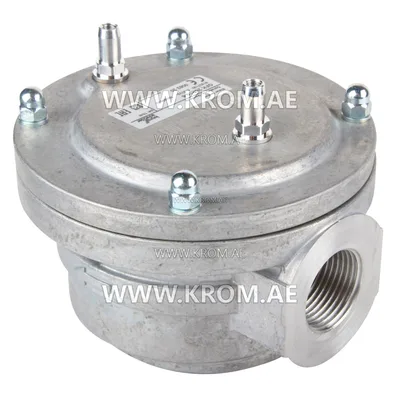

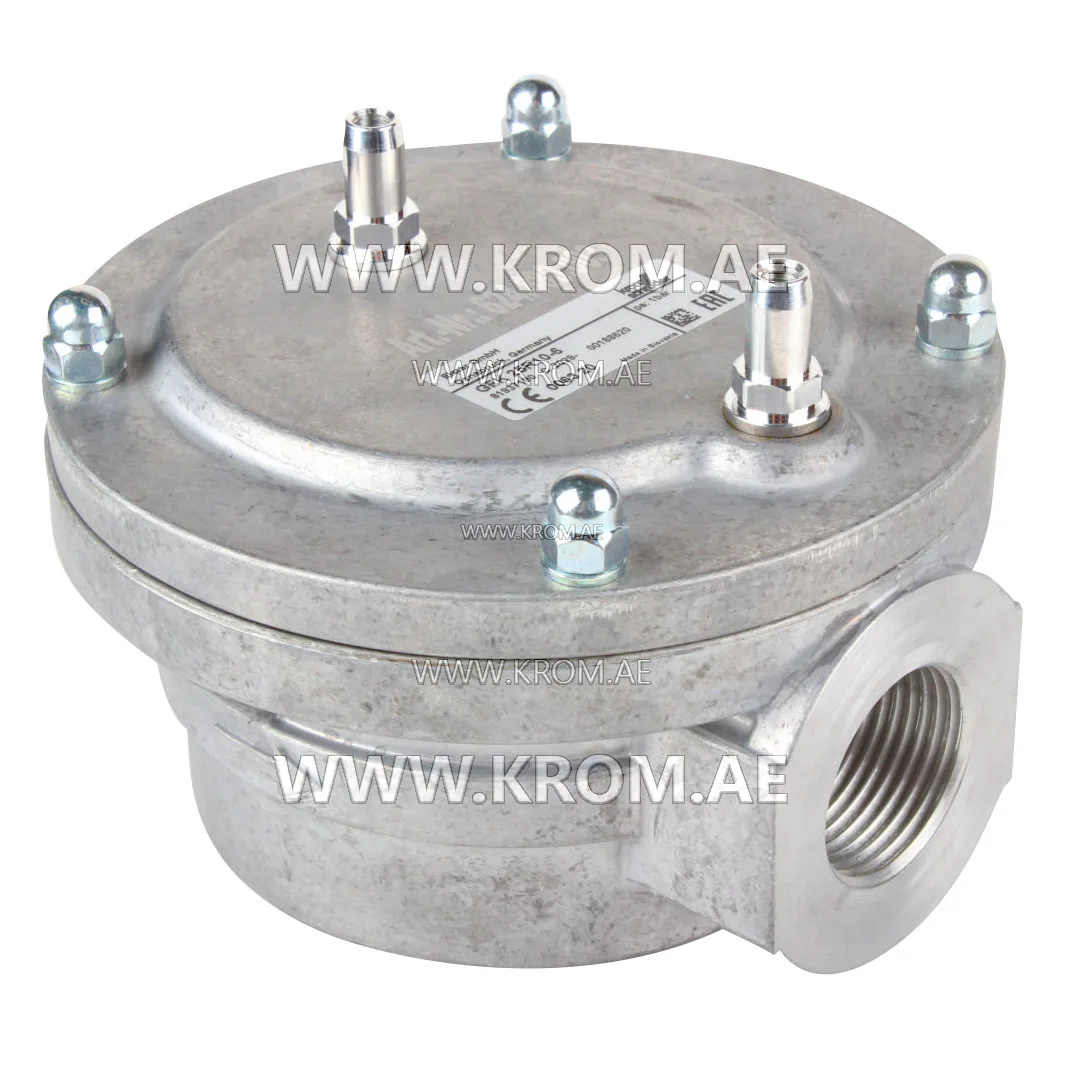

Kromschroeder GFK25R10-6 (81937190) gas filter

This is a Kromschroder gas filter, referenced as GFK25R10‑6 (81937190, 624.880.003). Parts of this type are installed in the gas supply line between the manual shut‑off valve and the gas valve or multiblock. The filter retains solid particles such as welding debris, rust scale, or dust that can otherwise block the gas valve seat, damage the servo regulator, or impair the burner control’s pressure sensing. In a typical gas train the filter is the first active component after the main isolating valve; a clean element ensures stable gas pressure and protects downstream safety and metering devices. When selecting a replacement filter of this class, the connection size and the thread or flange standard must match the existing pipework. The filtration grade (mesh size) and the flow capacity at the burner’s rated power are equally important – an undersized or clogged filter will cause a pressure drop that may trigger the gas pressure switch and lock out the burner. The filter housing material and the method of element retention also vary between series; some designs allow the element to be cleaned, while others require it to be replaced at each service interval. During installation ensure the filter is placed with the correct flow direction (usually marked on the housing) and that the pressure‑tap ports, if fitted, are accessible for differential pressure measurement. A blocked filter is a common cause of low gas pressure at the burner, leading to failed flame establishment or erratic modulation. Always observe the maximum operating pressure and temperature stated by the manufacturer for the specific filter model, and replace the element as part of the burner’s scheduled maintenance.
