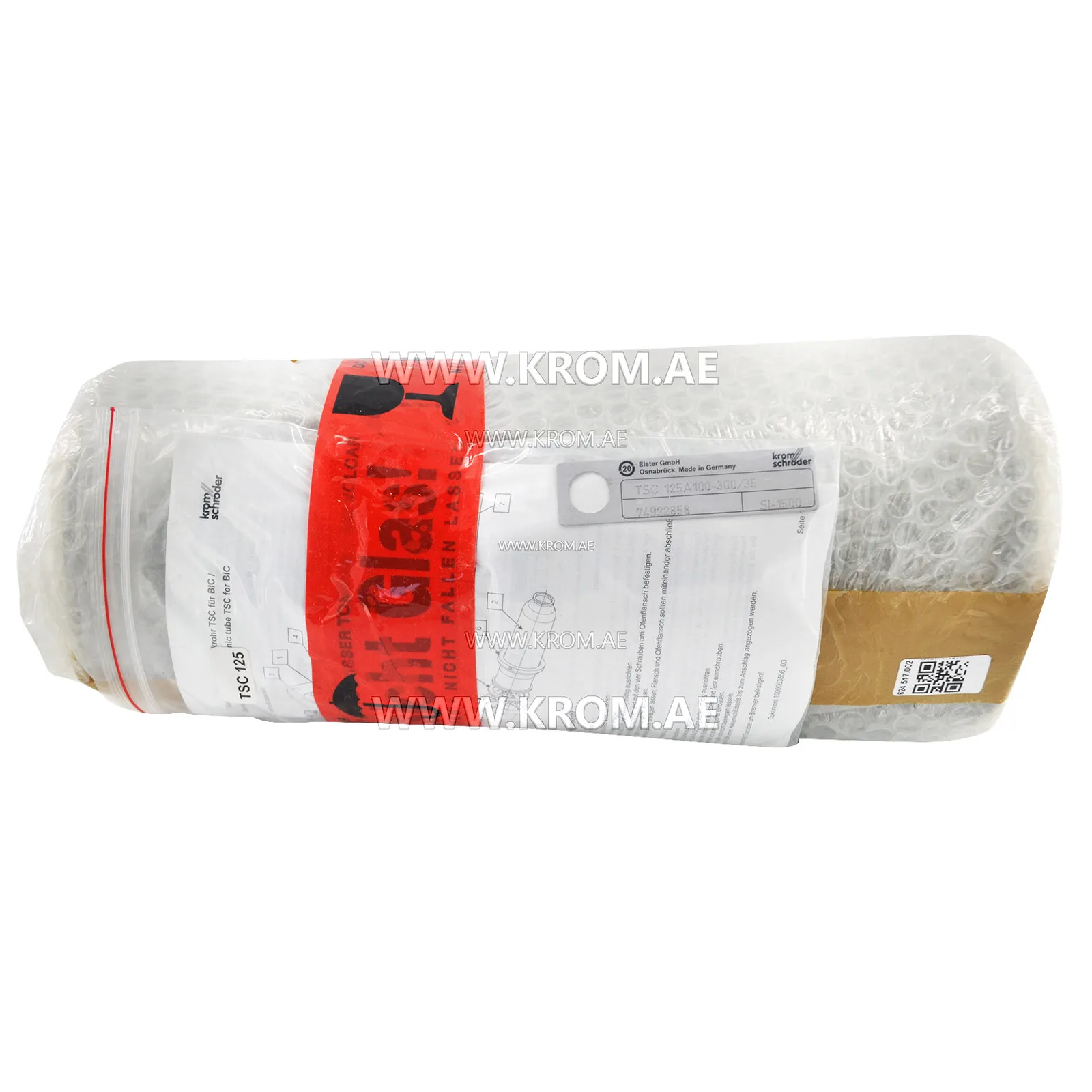

Kromschroeder TSC125A100-300/35-Si-1500 (74922858) ceramic tube set

Ceramic nozzle set Kromschroder TSC125A100-300/35-S (74922858) is an original kit for maintenance of industrial gas burners of BIC and BICA series. The kit includes a ceramic burner tube made of silicon carbide (SiC) with sealing cord and fasteners (screws, nuts). This assembly is replaceable and is designed to form a stable, low-emission flame under high temperature conditions (up to 1450°C). Physical wear of ceramics (cracks, erosion, melting) is inevitable during operation and leads to unstable combustion, overheating of metal parts of the burner and risk of flashback. Replacing the kit is the only way to restore factory characteristics. Technical specifications: Parameter Value; Part numbers 74922858, TSC125A100-300/35-S, 624.517.002; Manufacturer Kromschroder / Honeywell (Germany); Type Ceramic tube set; Compatibility BIC 125 / BICA 125 (burner size 125); Material Silicon carbide (SiC), heat-resistant; Shape A100 (Straight cylindrical, code A) with diameter 100 mm; Tube length 300 mm; Head position 35 mm (relative to furnace flange); Max. temperature approx. 1450°C (for silicon carbide); Contents Ceramic tube + sealing cord + screws + nuts. Code breakdown: TSC125A100-300/35-S: TSC — Ceramic Tube Set; 125 — Burner size, corresponds to BIC 125; A100 — Straight cylindrical shape (A) and outlet diameter: 100 mm; -300 — Tube length: 300 mm; /35 — Burner head position from furnace flange: 35 mm; S — Ceramic material: Silicon carbide (Si). ✅ Key advantages: Original Kromschroder configuration: Guarantees precise fit and compatibility with BIC 125 burner. The kit includes all necess
