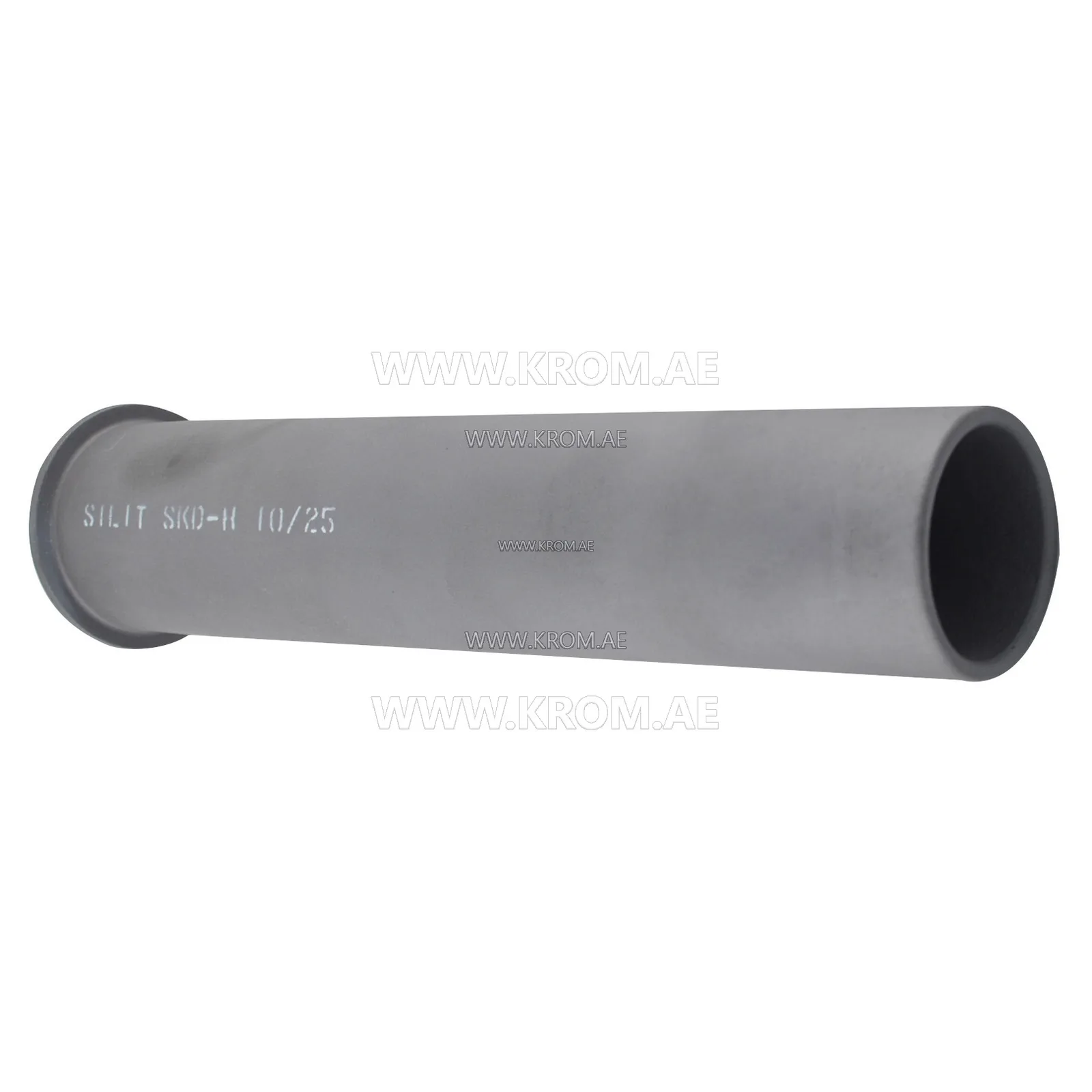

Kromschroeder TSC65A048-300/35-Si-1500 (74918137) ceramic tube set

Ceramic nozzle (burner tube) Kromschroder TSC 65A048-300/35-Si-1 500 (74918137) is an original replacement component for industrial gas burners of the BIC and BICA series. This part is made of ultra-strong silicon carbide (SiC) and is designed to replace worn-out ceramics in a size 65 burner. Its function is to shape the flame geometry, thermally insulate the metal parts of the burner, and ensure stable low-emission combustion. Technical specifications typically include: Product type: Ceramic tube (nozzle) assembly with gasket and fasteners. Compatibility: BIC / BICA 65. Material: Silicon carbide (SiC) — heat-resistant. Shape: Straight cylindrical (A) with an outlet diameter of 48 mm. Tube length: 300 mm. Application: High-temperature industrial furnaces and dryers. The kit includes the ceramic tube itself, a heat-resistant sealing cord, and mounting screws with nuts for fixing to the burner flange. Signs of malfunction include cracks, chips, melting, or surface erosion, leading to unstable combustion and overheating of the burner body. Replacement work should be performed by qualified personnel. Order numbers: 74918137, TSC 65A048-300/35-Si-1 500, 624.517.003
