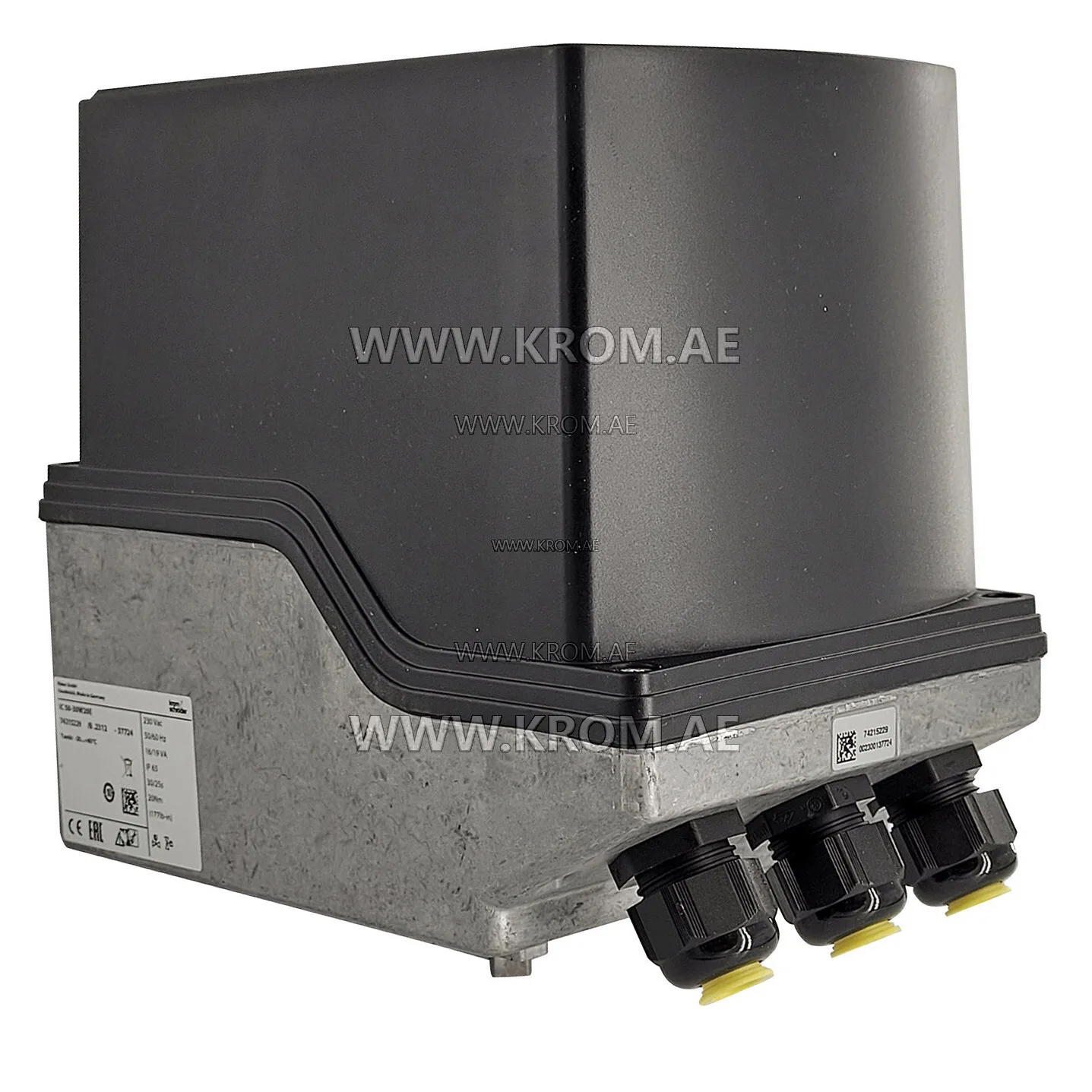

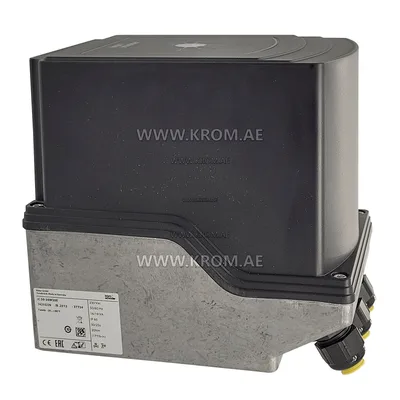

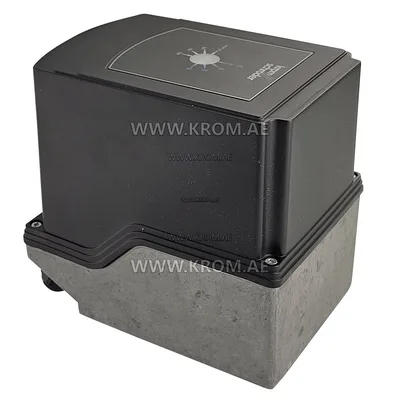

Kromschroeder IC50-30W20E (74215229) actuator

Krom schroder IC 50-30W20E 74215229 actuator is engineered to suit a wide array of applications requiring precise and controlled rotary motion spanning from 0° to 90°. When power is disconnected, Kromschroder IC 50-30W20E 74215229 servomotor comes to a halt, maintaining its current position. Teamed up with the butterfly valve DKR, Kromschroeder IC 50-30W20E 74215229 servo motor is adept at fine-tuning the flow rates of both hot air and flue gas across an assortment of appliances and flue gas lines. Kromschroeder IC 50-30W20E 74215229 servomotor technical data Series 50, with higher torque Running time: 30 s/90° Mains voltage: 230 V AC, 50/60 Hz Torque: 20 Nm Continuous control Weight: 2,5 kg Screw terminals for cables up to 2.5 mm2 Angle of rotation: 0 – 90°, adjustable Holding torque = torque Enclosure: IP Safety class: I Duty cycle: 100% Line entrance: 3 x M20 plastic cable glands Ambient temperature: -20 to +60°C, no condensation permitted Storage temperature: -20 to +40°C Three-point step signal to terminals 1 and 2: minimum pulse duration: 100 ms, minimum pause between 2 pulses: 100 ms Kromschroder 74215229 IC 50-30W20E servo motor certification 2014/35/EU 2014/30/EU EN 60730:2011
