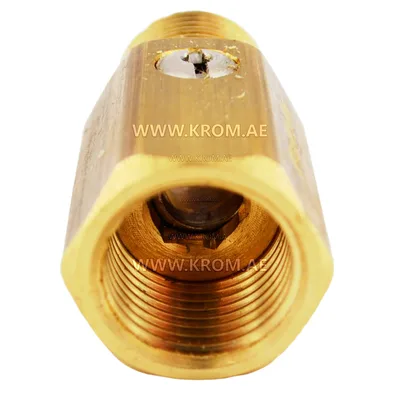

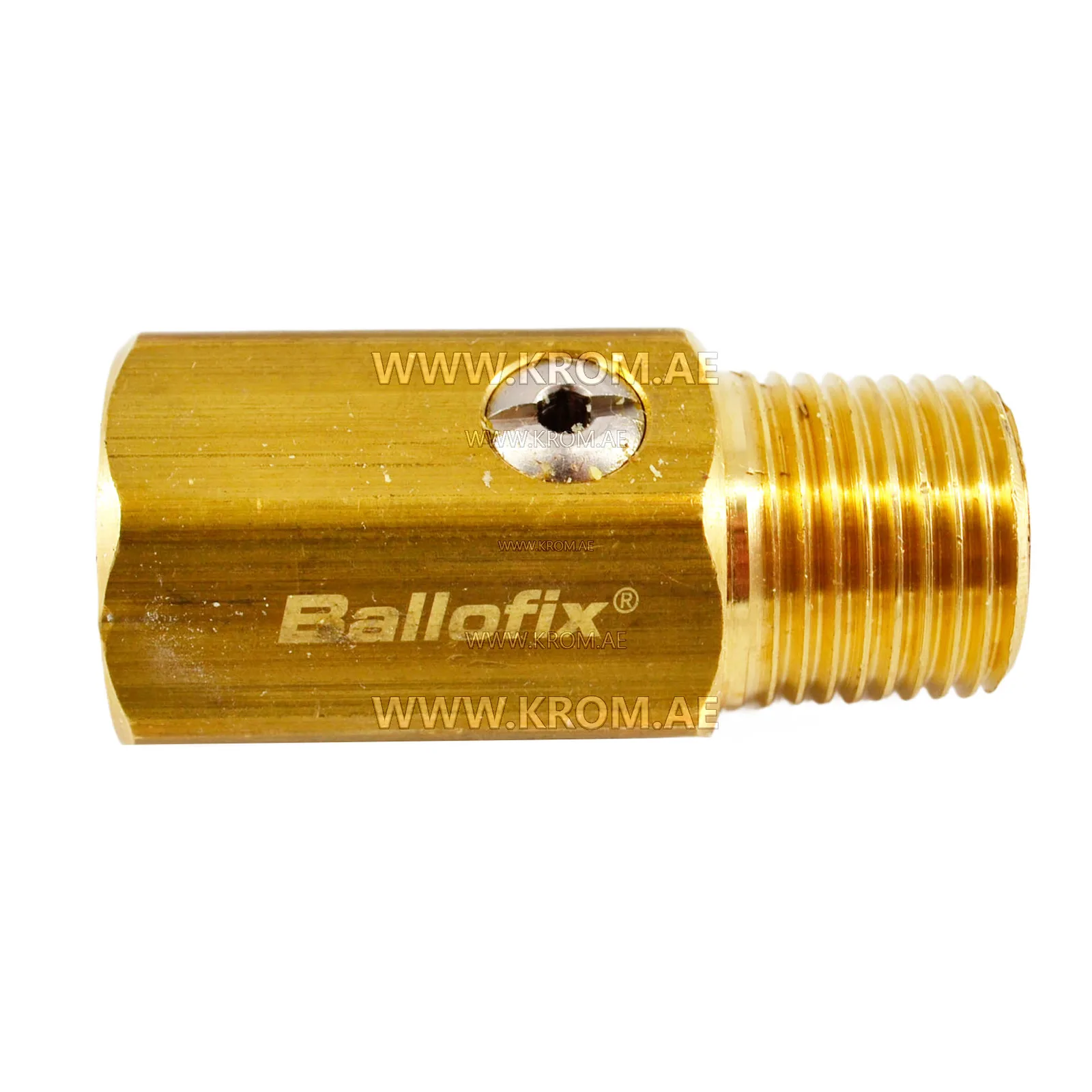

Kromschroeder GEH 15R10 (03352506) flow adjusting cock for gas

Kromschroder GEH 15R10 (03352506) gas regulating valve (throttle) is a manual needle valve for precise adjustment of gas or air flow in fuel supply systems to burners. The device allows smooth adjustment of gas volume over a wide range, which is necessary to ensure the correct gas-air ratio during burner start-up and operation, especially at low loads. Technical specifications: Parameter Value Part numbers 03352506, 624.439.042 Model GEH 15R10 Manufacturer Kromschroder (Germany) Valve type Regulating, manual (throttle) Purpose Smooth adjustment of gas or air flow Connection Internal thread Rp 1/2" (15 mm) Dimensions 25 x 27 x 54 mm Weight 0.123 kg (123 g) Compatibility and application: The GEH 15R10 valve is used in gas supply systems for industrial burners, boilers, furnaces and heat generators. It is installed in impulse lines or directly on the gas supply to the burner for fine-tuning fuel flow. Key features: Needle regulating valve for precise flow adjustment Reliable sealing when shut off Resistance to natural and liquefied gas Compact design for installation in confined spaces Key advantages: Precise gas flow adjustment: Allows smooth and metered changes in the volume of gas supplied to the burner, which is necessary for setting the gas-air ratio and stable combustion under various operating modes. Safety assurance: Used to set the minimum gas flow before the burner, which helps avoid flame blow-off or extinction at low loads. Ease of installation and maintenance: Standard threaded connection Rp 1/2" allows easy integration into existing gas pipelines, and manual adjustment is done by handwheel.
