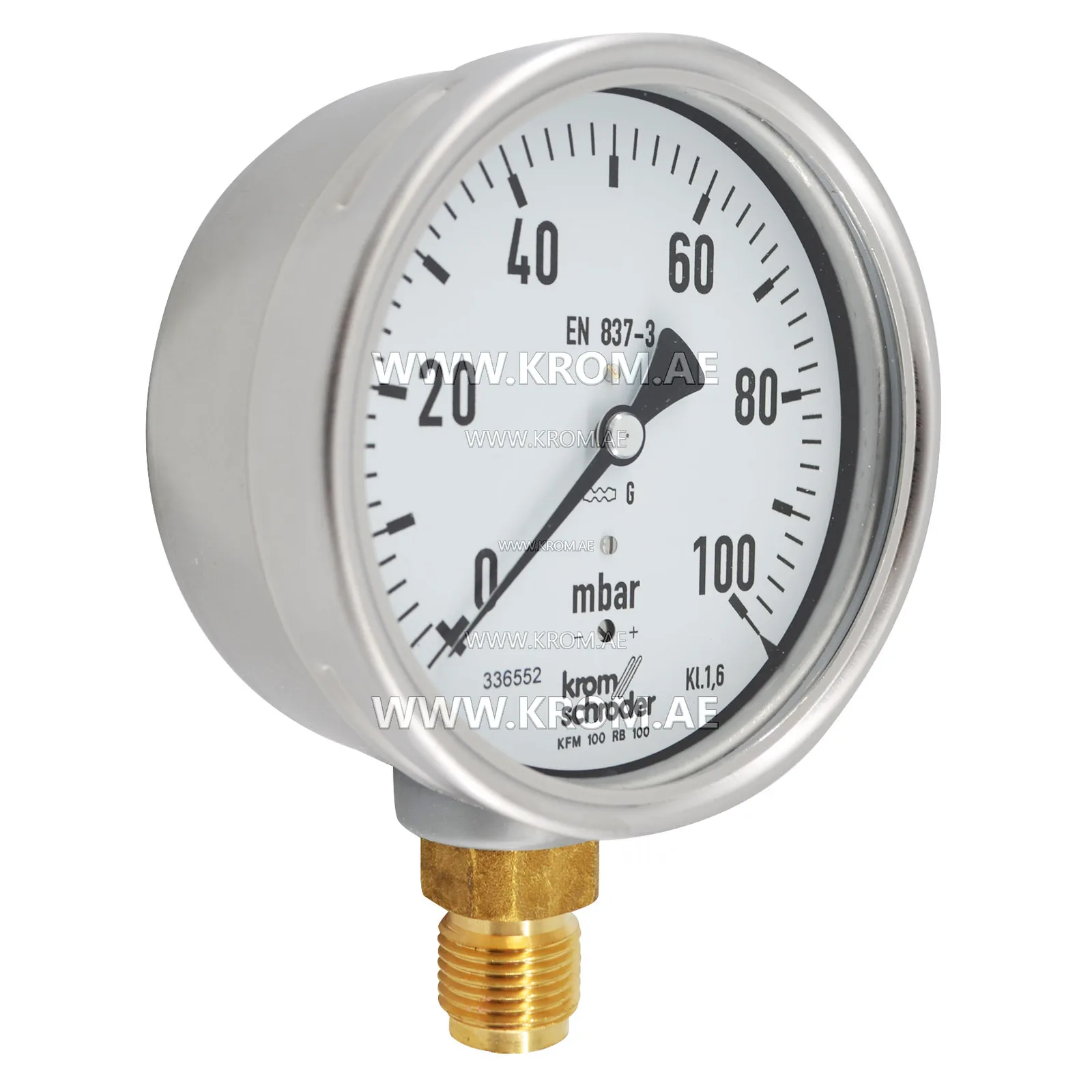

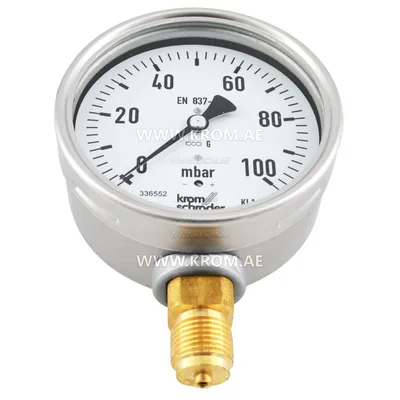

Kromschroeder KFM100RB100 (03200108) pressure gauge

Indicating manometer Kromschroder KFM100RB100, 03200108 is a high-precision measuring instrument with a diaphragm element, designed for visual monitoring of static pressure of natural gas, LPG (gaseous phase) or clean air in industrial gas supply and heating systems. The model with a 100 mm dial diameter and range 0–100 mbar is specifically designed for low pressure measurement and is most often used on burner gas trains for precise adjustment and visual monitoring of gas pressure before combustion. Technical specifications: Parameter Value; Part numbers 03200108, KFM 100RB100, 624.466.001; Manufacturer Kromschroder / Honeywell (Germany); Instrument type Indicating manometer (indication only); Working medium Natural gas, LPG (propane-butane), biogas, clean dry air; Measuring range 0 – 100 mbar; Visible dial diameter 100 mm; Accuracy (class) 1.6 (per EN 837-3); Connection Brass, thread G ½" B; Mounting position Horizontal; Protection degree IP 54 (dust and splash proof); Housing material Stainless steel; Medium temperature from -20°C to +60°C; Dimensions (L x W x H) 140 x 100 x 49 mm; Weight 0.57 kg (454-574 g depending on source). Key advantages: High-precision low pressure measurement: Thanks to the diaphragm measuring element, this manometer provides high accuracy (class 1.6) precisely in the low range 0-100 mbar, where standard Bourdon tube manometers (RFM) are ineffective. Overload protection: The measuring system is designed to withstand short-term pressure peaks. When installing via an impulse line, it is highly recommended to install a safety valve (e.g., Kromschroder DH) to protect the manometer from water hammer and pressure surges. Reliability in aggressive environments: Housing...
