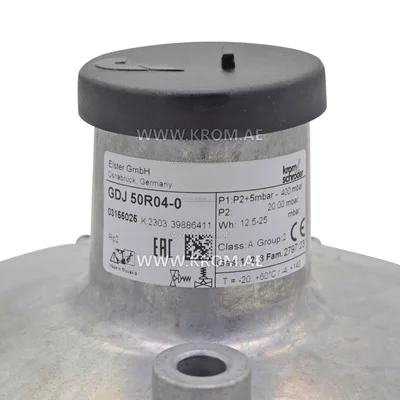

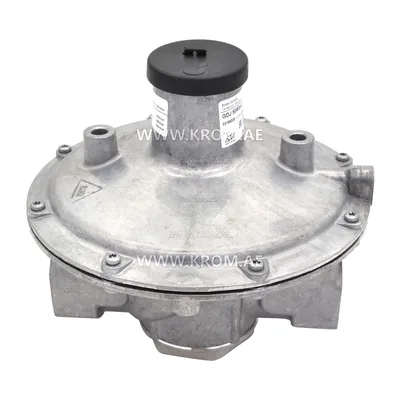

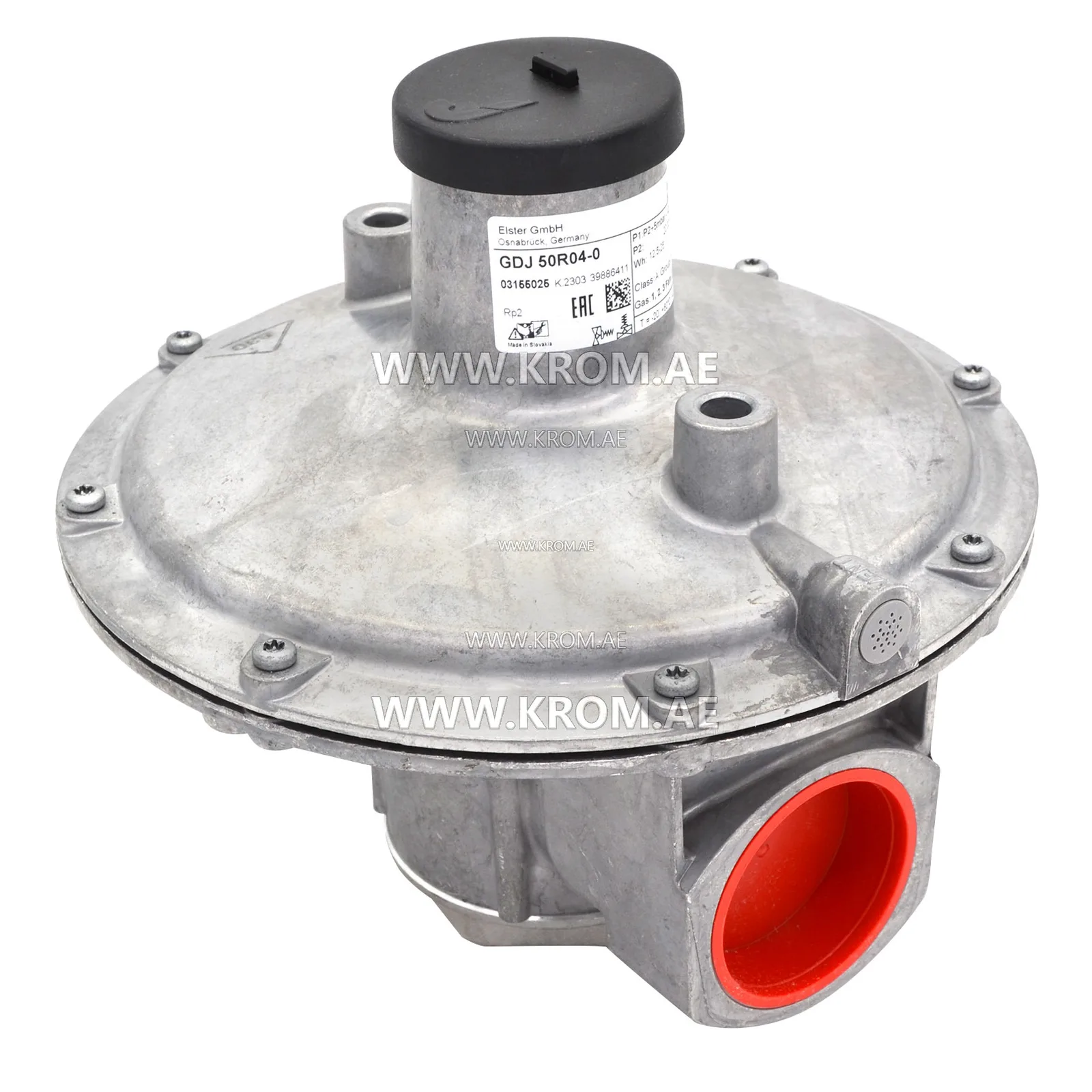

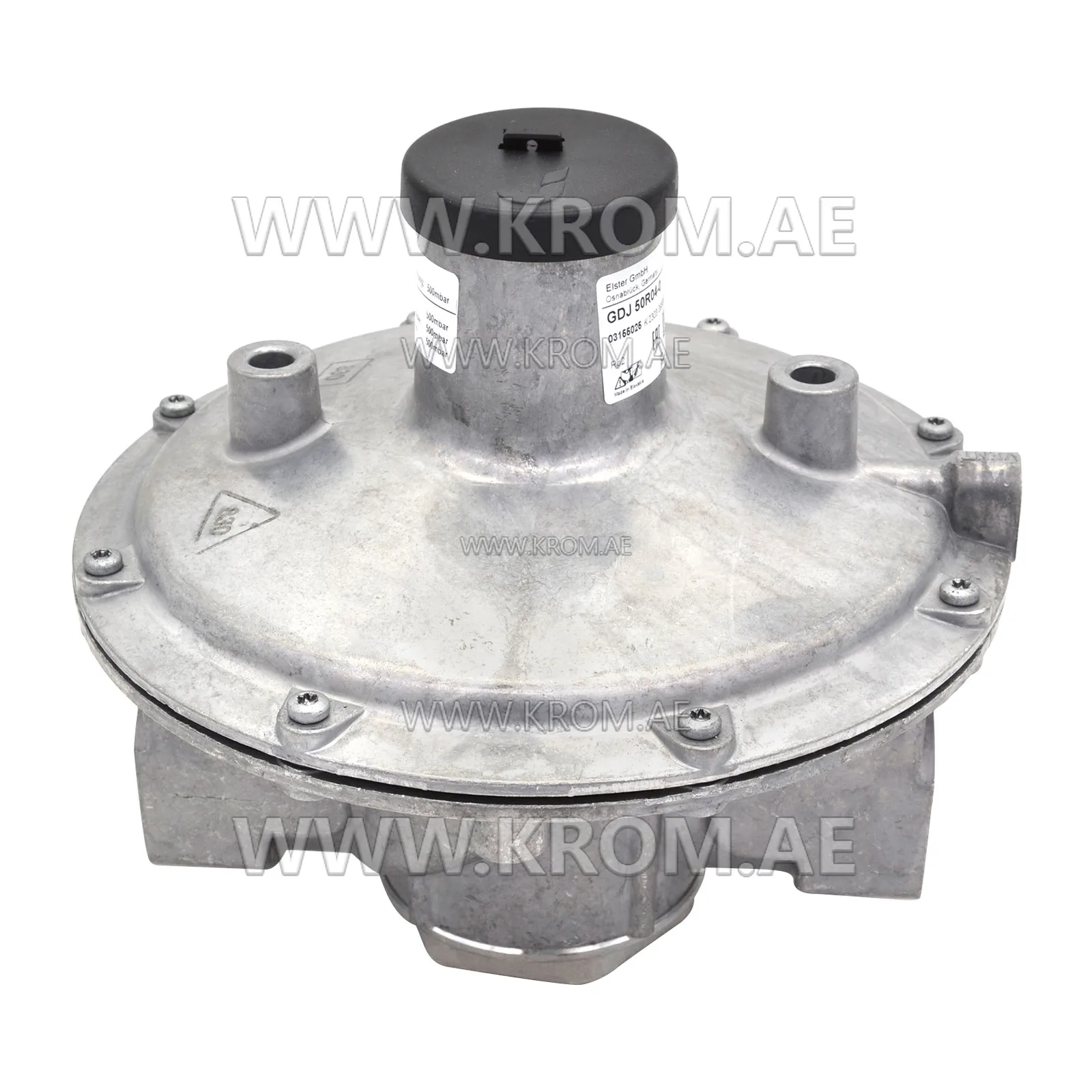

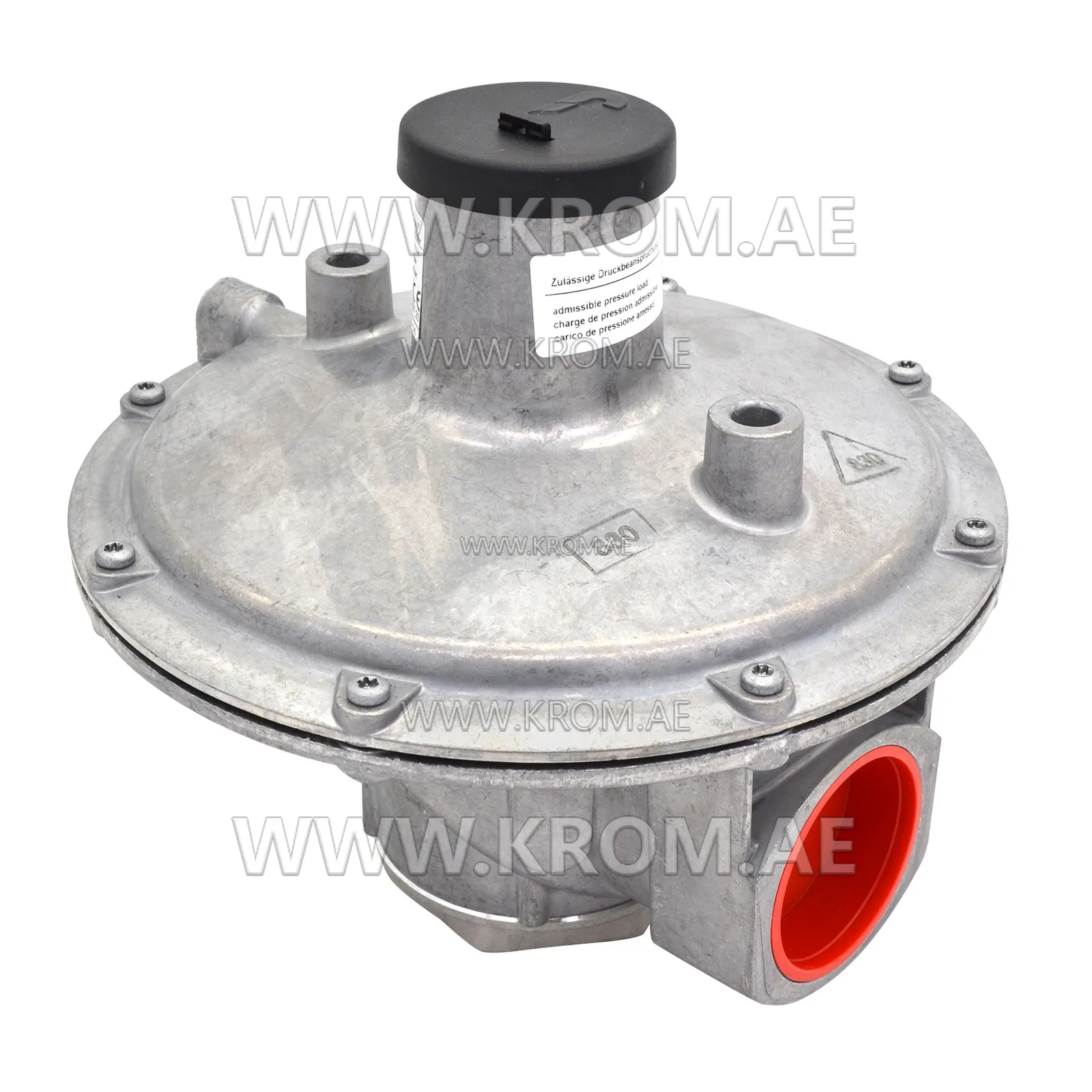

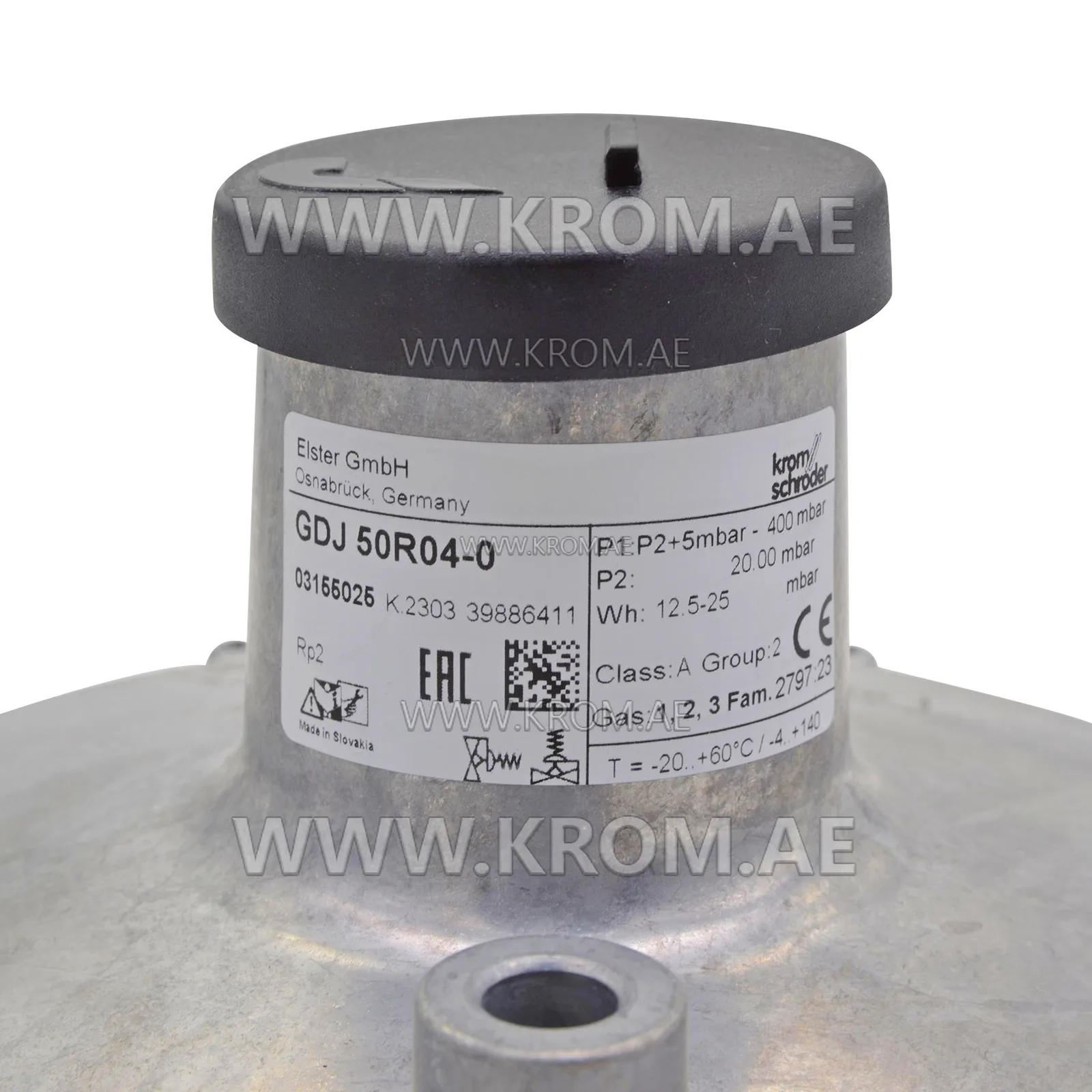

Kromschroeder GDJ50R04-0 (03155025) pressure regulator

Gas pressure regulator Kromschroder GDJ50R04-0 (03155025) — original spring-loaded reducer Honeywell. Original pressure regulator Kromschroder GDJ 50R04-0 — a powerful spring-loaded gas reducer with inlet pressure compensation and zero shut-off. Provides stable outlet pressure regardless of fluctuations in inlet pressure and gas flow. Main features: Model: GDJ 50R04-0 Nominal diameter: DN 50 (Rp 2" — internal thread) Maximum inlet pressure: up to 400 mbar Outlet pressure range: 5–100 mbar (standard setting — 20 mbar, spring 12.5–25 mbar) Features: Compensation diaphragm, built-in safety diaphragm (without vent line), zero shut-off, high regulation accuracy (turndown 10:1) Application: Natural gas, LPG, air (dry, without condensate) Temperature: from -20°C to +60°C Weight: ≈ 3.1 kg Compliance: EN 88 Class A, Group 2, CE Application: The GDJ 50 regulator is ideal for: Industrial and municipal boilers of high capacity; Burner devices and heat generators; Gas supply systems of production lines; Industrial furnaces, dryers and process equipment. Thanks to inlet pressure compensation, the device ensures stable burner operation even with significant inlet pressure fluctuations. Advantages of original Kromschroder GDJ50R04-0: German quality Honeywell Kromschröder — maximum reliability and safety; Built-in safety system (safety diaphragm); Easy installation and minimal maintenance; Long service life in intensive industrial conditions; Full compliance with European safety standards. An excellent choice for service engineers, installation companies and enterprises where stability, energy efficiency and reliability are important.
