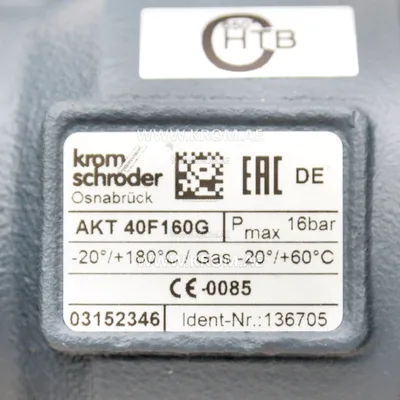

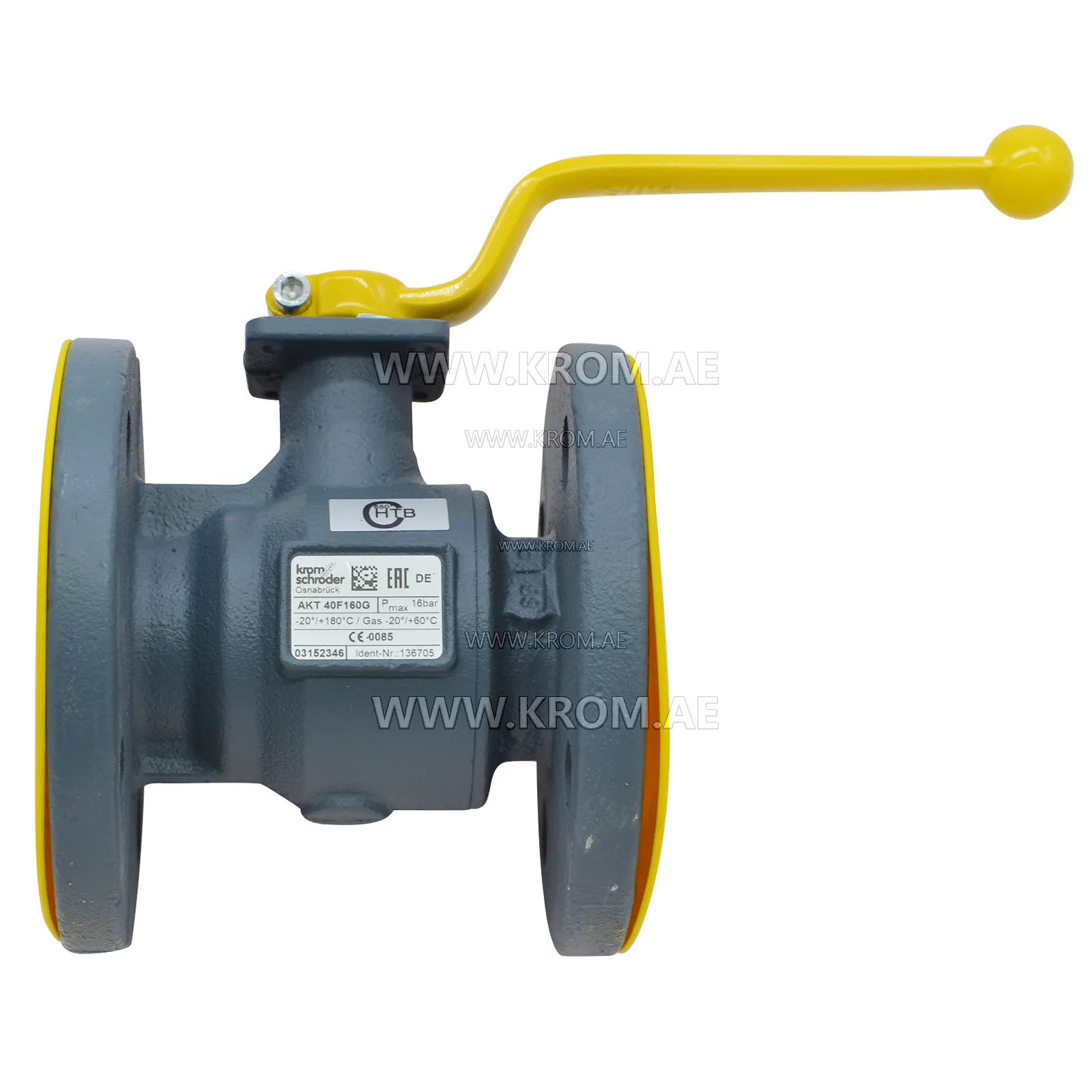

Kromschroeder AKT40F160G (03152346) manual valve

Kromschroder AKT40F160G ball valve (03152346) — a reliable industrial-grade shut-off device designed to shut off the flow of gas, air, water or steam in medium-pressure main pipelines. Unlike standard household valves, this model is designed for extreme loads: it withstands high inlet pressure and a wide temperature range. Installation of such a valve guarantees tight shut-off of the medium for safe maintenance work at industrial power facilities. Technical specifications Part numbers: 03152346, 624.439.054 Model: AKT 40F160G Manufacturer: Kromschroder / Honeywell (Germany) Type of valve: Ball valve, manual, flanged Nominal diameter (DN): 40 Connection: Flanged PN16 (16 bar) Working medium: Natural gas, liquefied gas, air, water, steam ✅ Key advantages Industrial reliability: The AKT series valve is known for its durability and ability to withstand harsh operating conditions at large boiler houses and industrial plants. Full bore design: When the valve is open, the internal bore fully matches the pipe bore. This eliminates pressure loss and flow turbulence, which is critical for gas mains. Main line shut-off: Flanged connection PN16 and diameter DN40 indicate that this valve is used for main fuel shut-off to a burner or workshop, not for household connections. Safety certification: Has European certification for use with gaseous fuels, confirming its safety and compliance with EN standards. Application area The AKT 40F160G valve is intended for: Medium-pressure gas mains (up to 16 bar). Inlet gas stations of boiler houses and industrial furnaces. Hot water and steam pipelines.
