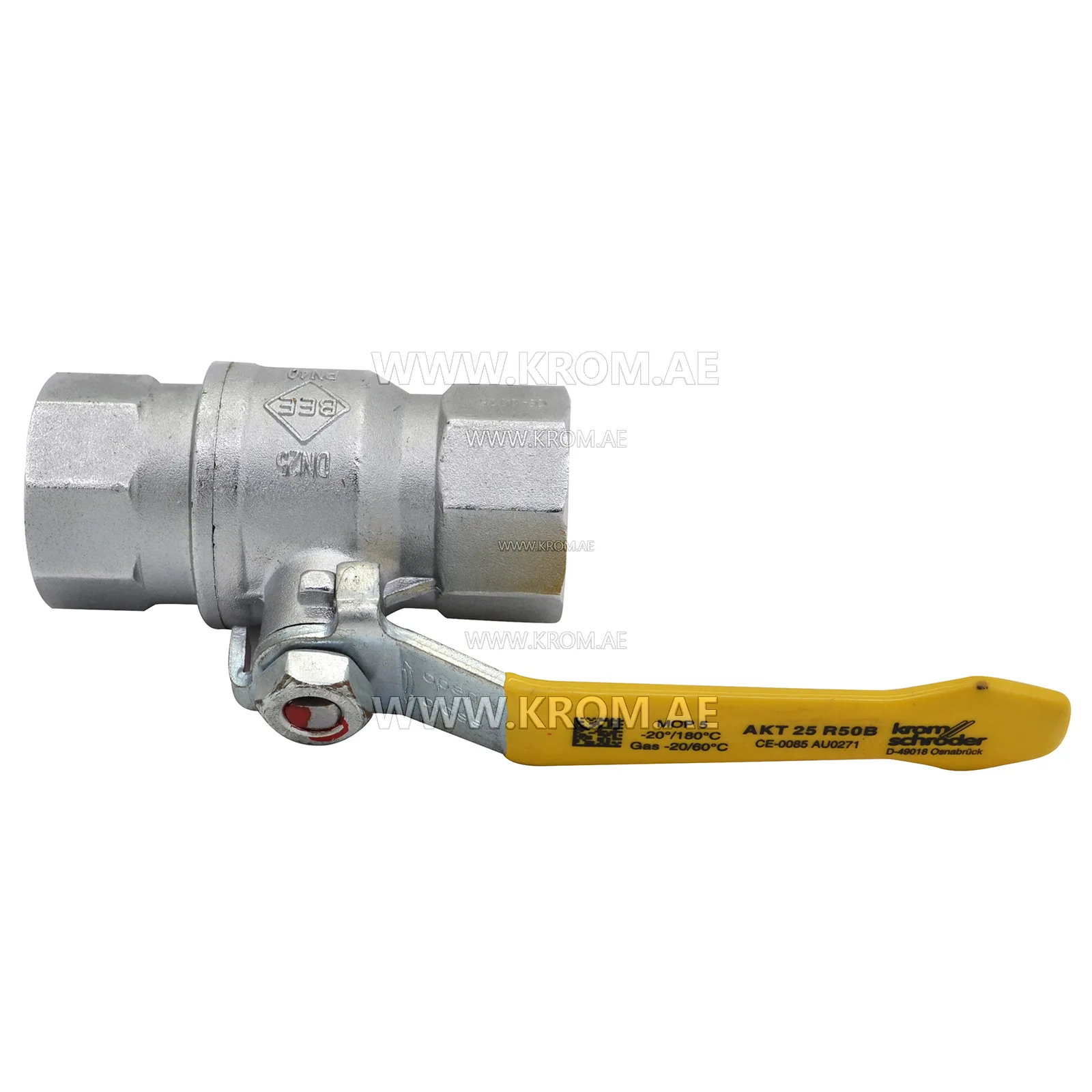

Kromschroeder AKT25R50B (03152274) manual valve

Kromschroder AKT25R50B (03152274) ball valve is a reliable manual shut-off valve designed for main gas or air supply shut-off in industrial and domestic systems. It belongs to the popular AKT series, known for its reliability and durability. If you need to shut off the fuel supply during burner maintenance or repair, this valve provides quick and reliable shut-off with visual open/closed position indication. Technical specifications: Parameter Value Part numbers 03152274, 624.439.020 Model AKT 25R50B Manufacturer Kromschroder / Honeywell (Germany) Valve type Ball valve, manual, two-position (ON/OFF) Connection Internal thread Rp 1" Maximum pressure 5 bar (0.5 MPa) Housing Brass Working medium Natural gas, liquefied gas (propane, butane), air, water Medium temperature from -20°C to +60°C Dimensions (L x W x H) 178 x 71 x 45 mm Weight 0.517 kg (516-517 g) Model decoding AKT 25R50B (see figure in PDF documentation): AKT — Series of manual ball valves. 25 — Nominal diameter DN25 (corresponds to connection Rp 1"). R — Internal thread. 50 — Maximum working pressure 5 bar (0.5 MPa). Note the AKT..160 series for 16 bar valves. B — Housing material — brass. Compatibility: The AKT 25R50B valve is part of the Kromschroder AKT series manual ball valves, which are manufactured for diameters from DN6 to DN50. Other models in this series include AKT 6R50B (DN6, Rp 1/4"), AKT 15R50B (DN15, Rp 1/2") and AKT 50R50B (DN50, Rp 2"). Key advantages: Reliable shut-off device: Provides complete shut-off of gas or air flow, which is critical for safe maintenance of burner.
