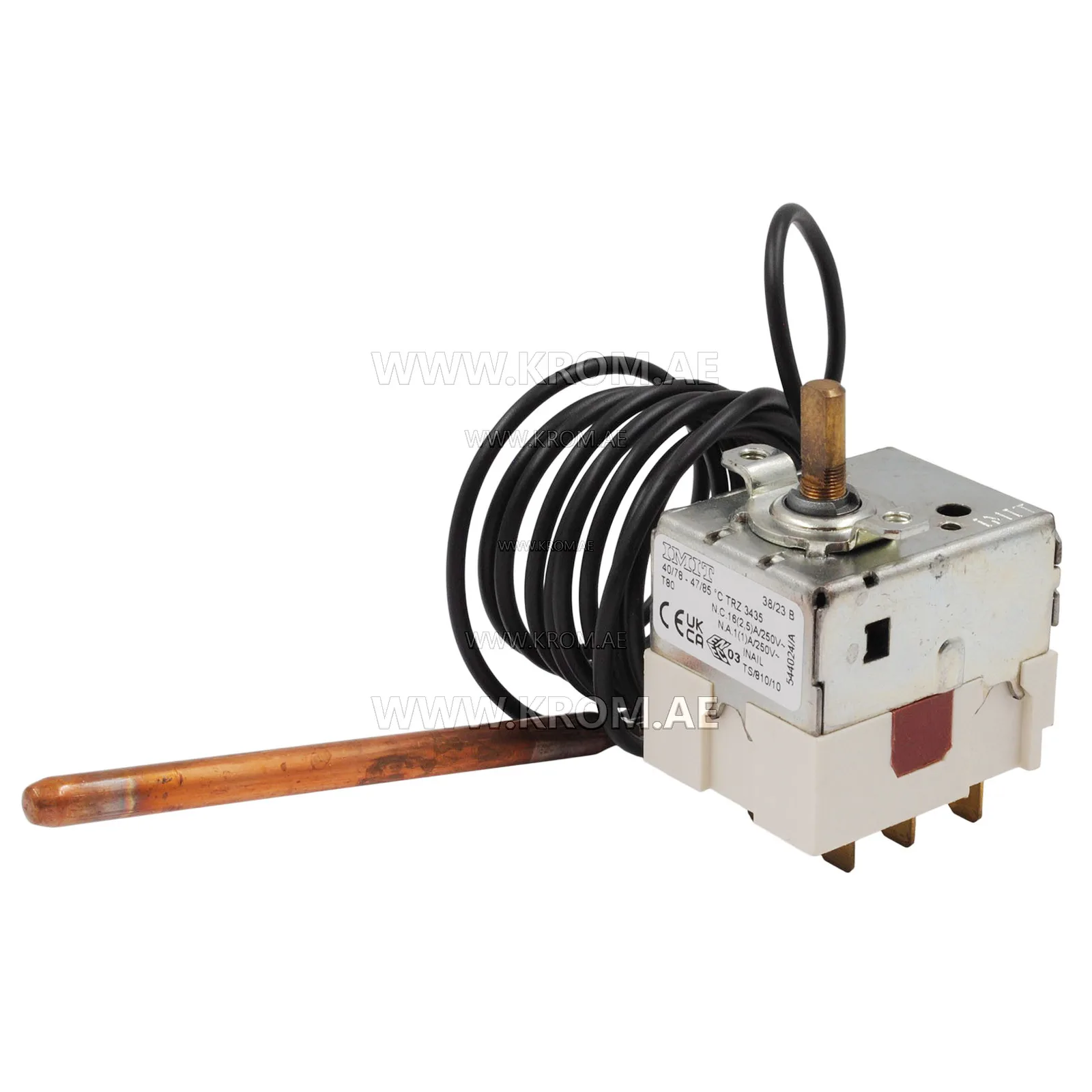

544024/A Thermostat IMIT TRZ OEM

The IMIT 544024/A TRZ thermostat is a capillary mechanical temperature controller equipped with a two-stage switch. It is designed for automatic temperature regulation in various thermal devices such as boilers, heating systems, air conditioners, and household appliances. ✅ Key specifications: Model: IMIT 544024/A TRZ Type: Capillary thermostat with liquid expansion Switch: Two-stage, single-pole with switching contacts Temperature control range: 1st stage: from 40 °C to 78 °C 2nd stage: from 47 °C to 85 °C Capillary tube length: 1500 mm with PVC coating Sensing element: Copper thermal bulb Ø6.5×95 mm Minimum capillary bending radius: 5 mm Connectors: Faston type 6.3×0.8 mm Maximum switching current: up to 15 A Maximum head temperature: 80 °C Application areas: Heating boilers and systems Air conditioning and ventilation systems Household appliances: washing machines, dishwashers, electric radiators Industrial and domestic temperature regulation systems
